To fit

NOTE: Check the seal between the headlamp housing and the control module. Change if necessary.

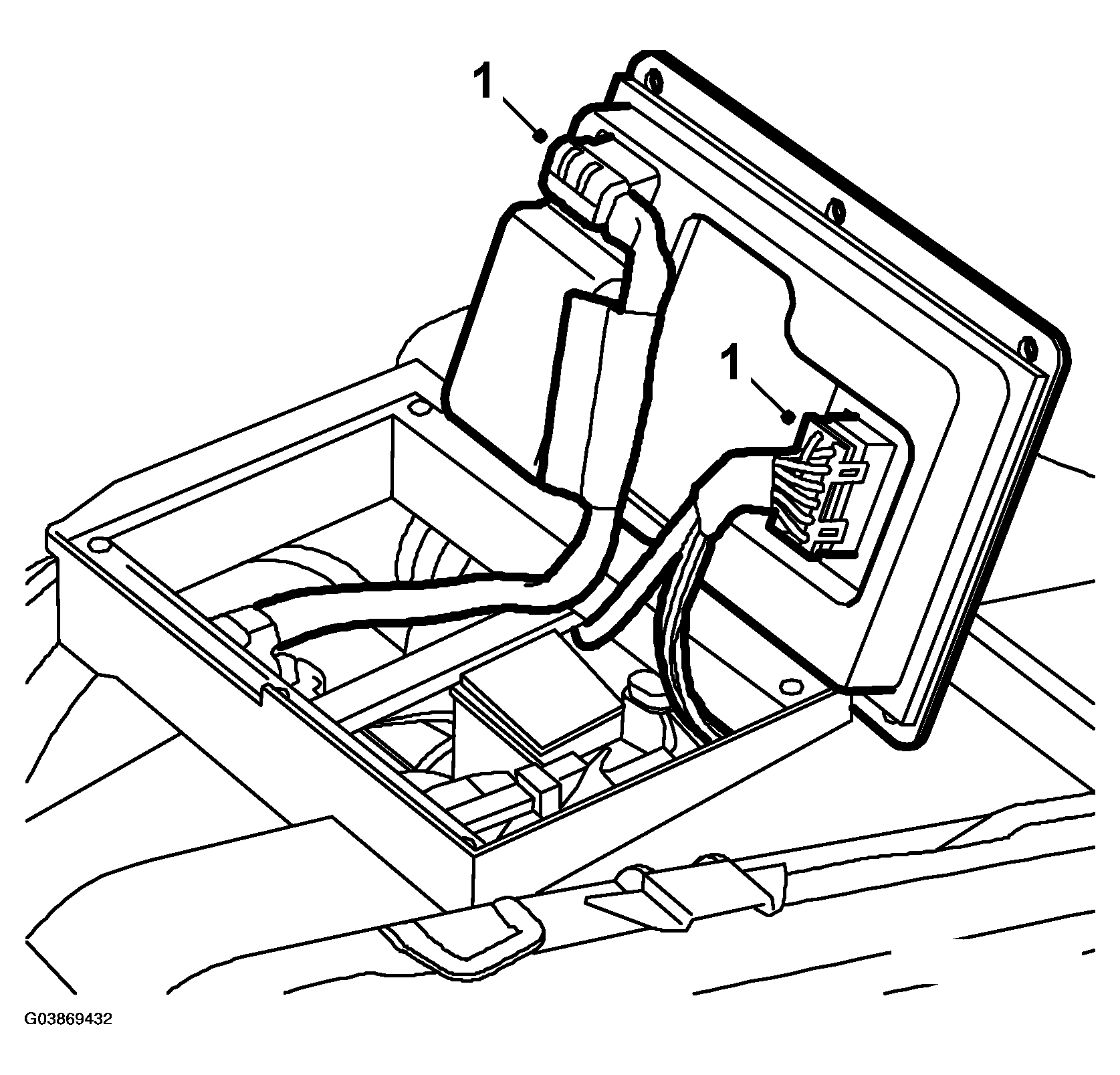

  1. Plug in the control module.
    Fig 1: Illustration For Step 1
    G03869432Courtesy of SAAB-SCANIA OF AMERICA, INC.

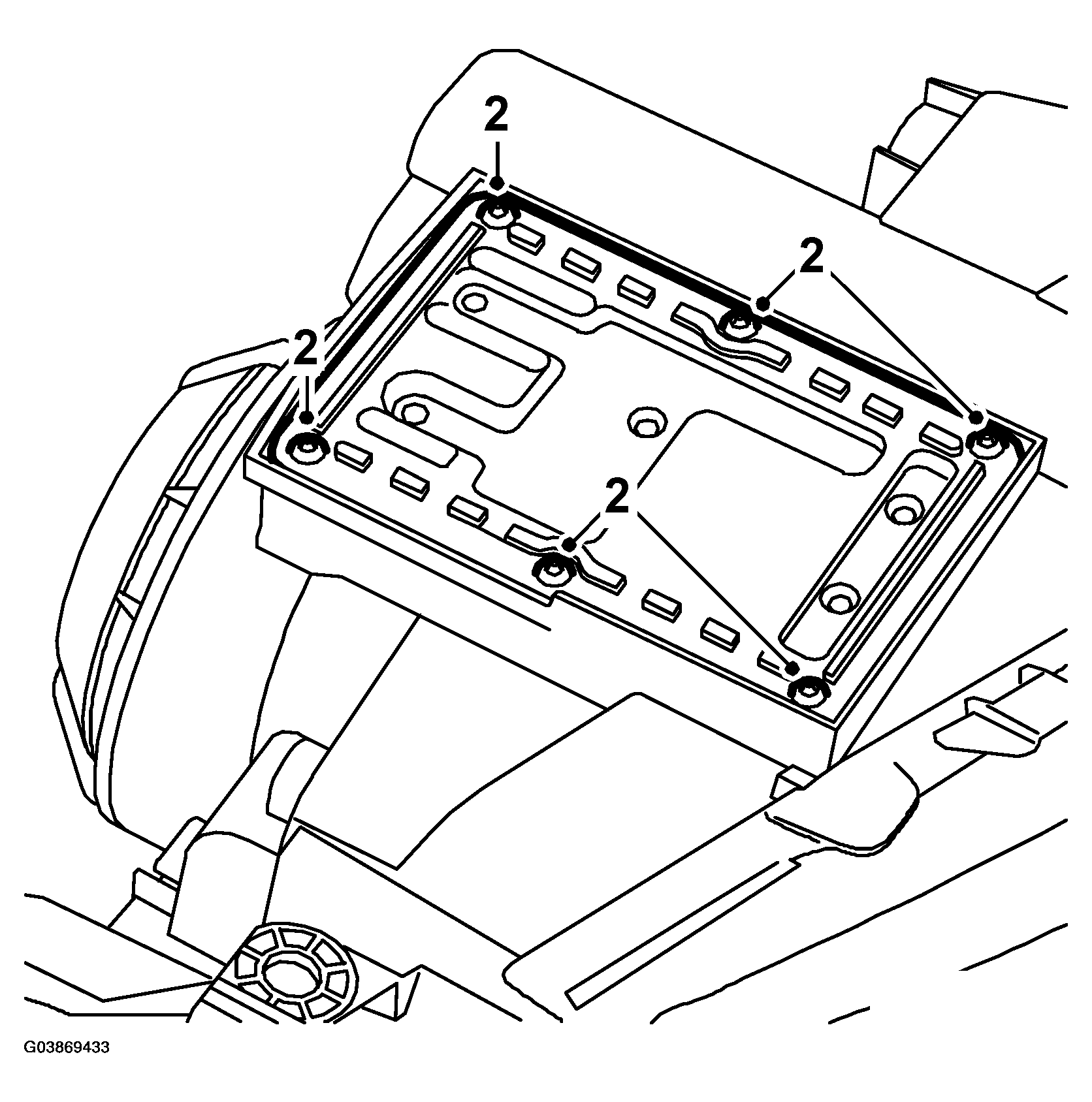

  2. Fit the control module into the headlamp.
    Fig 2: Illustration For Step 2
    G03869433Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the headlamp, see HEADLAMP  .
  4. Perform spare parts programming with Tech 2. Refer to HEADLAMP/AHL CONTROL MODULE, SPARE PARTS PROGRAMMING  .
