To fit

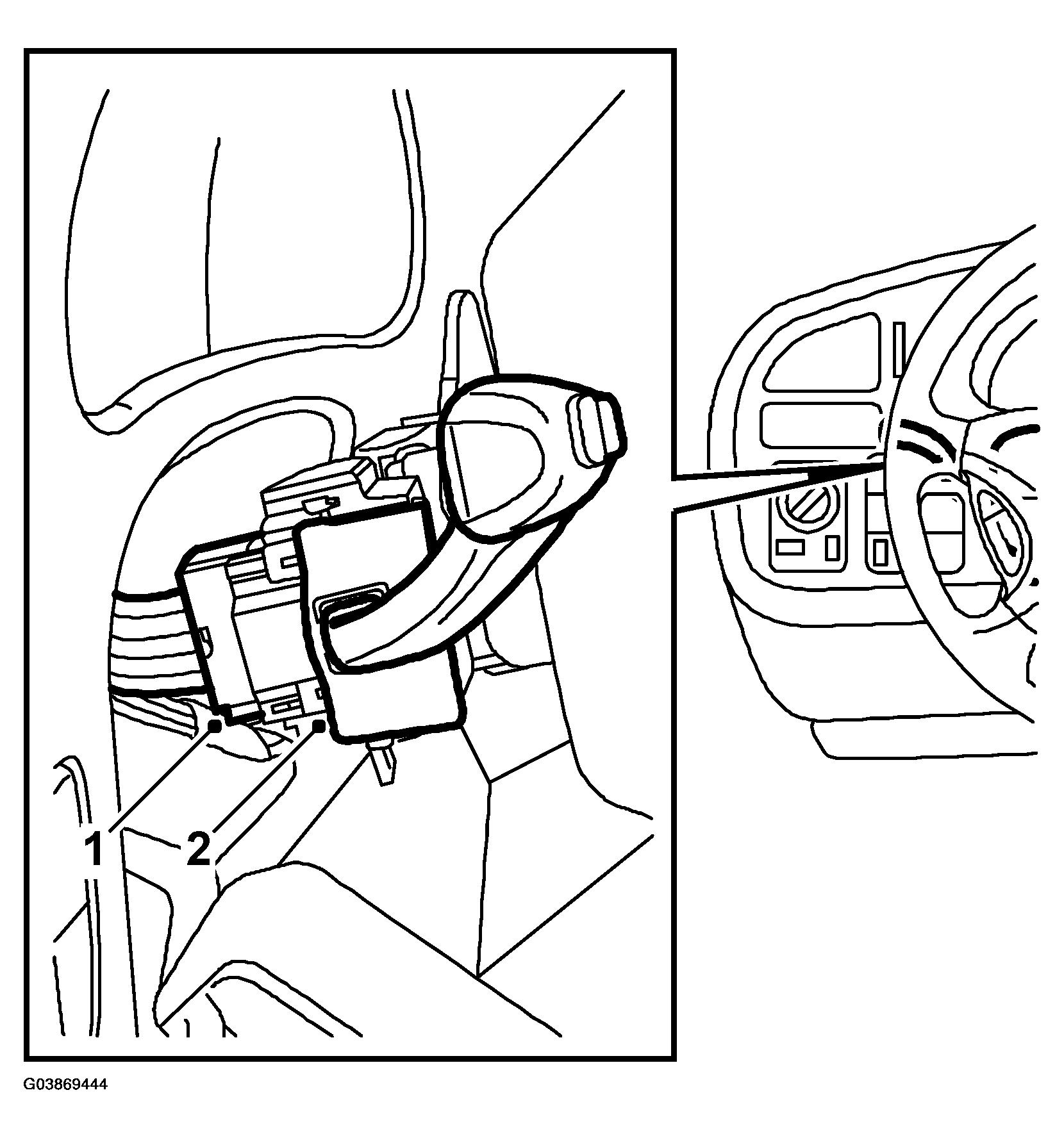

Fig 1: Illustration For Step 1-2
G03869444Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Spray with "Kontakt 61" and plug in the 10-pin connector.
  2. Fit the stalk switch.
  3. Fit the steering column bearing bracket cowls.

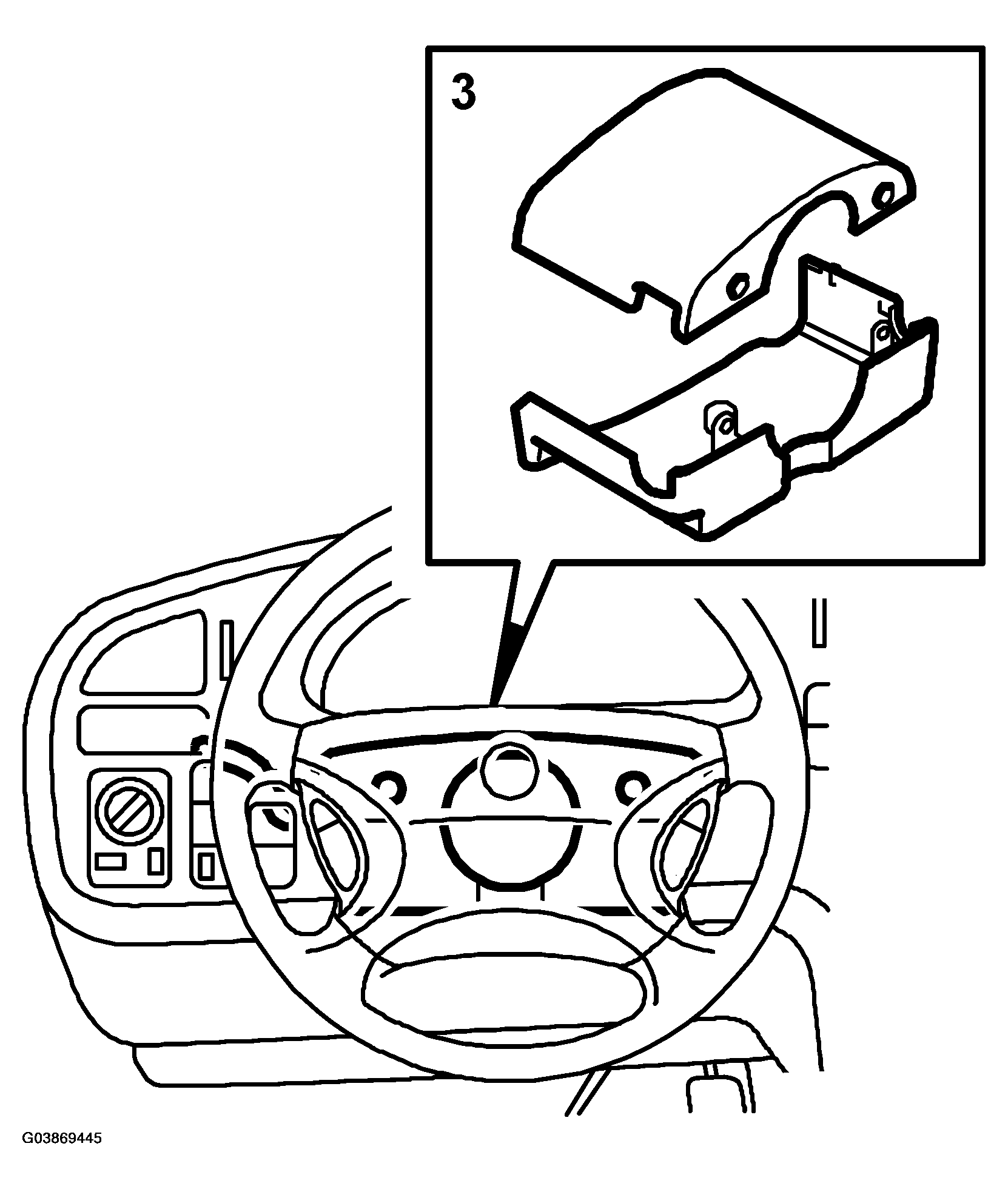

    Fig 2: Illustration For Step 3
    G03869445Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Adjust the steering wheel to its original position.
