System overview

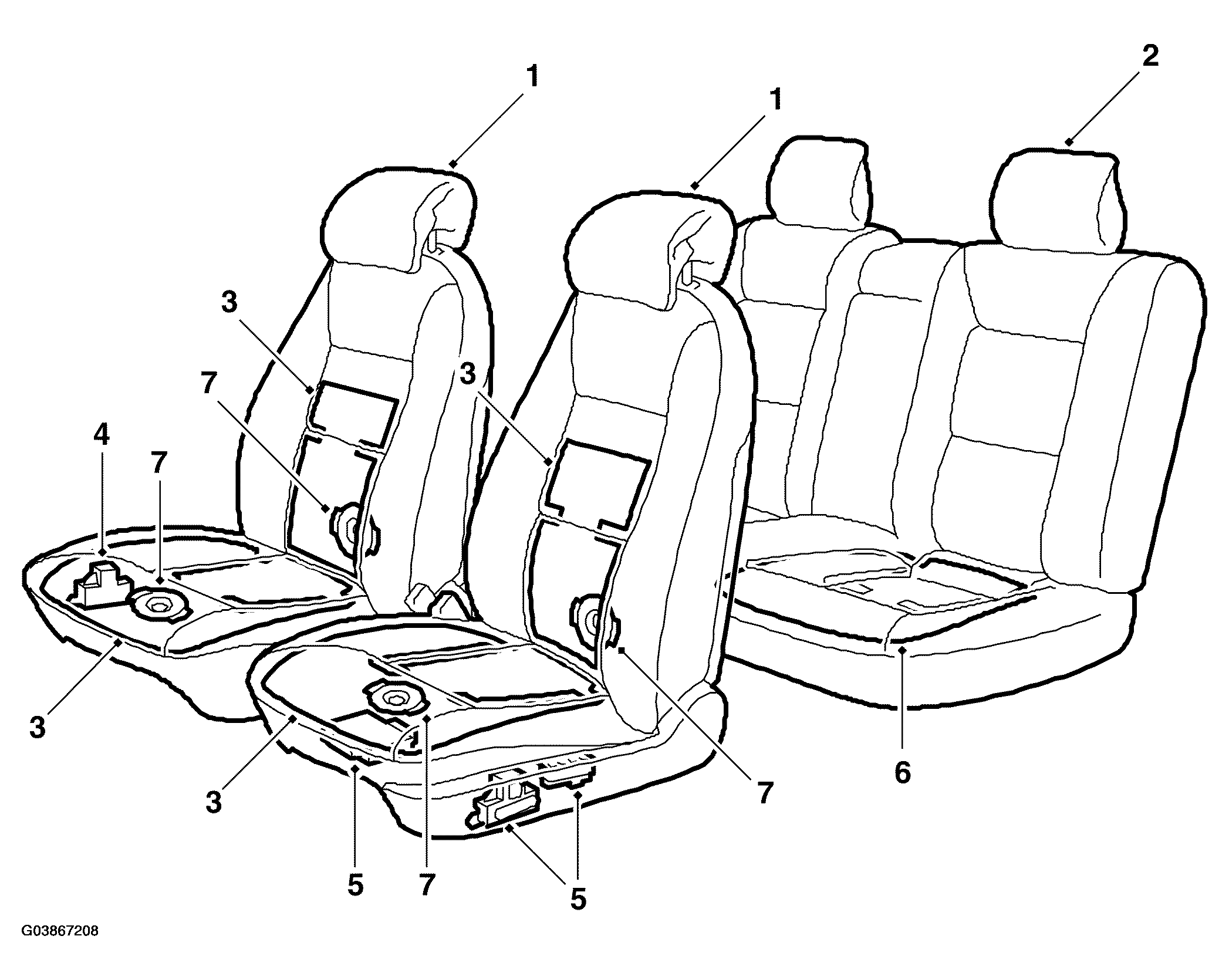

Fig 1: Seat System
G03867208Courtesy of SAAB-SCANIA OF AMERICA, INC.

Seats

  1. Front seats
  2. Rear seat
  3. Heated front seat
  4. Electrically adjustable passenger seat
  5. PSM system
  6. Heated rear seat
  7. Ventilated front seat
