Power supply: Notes

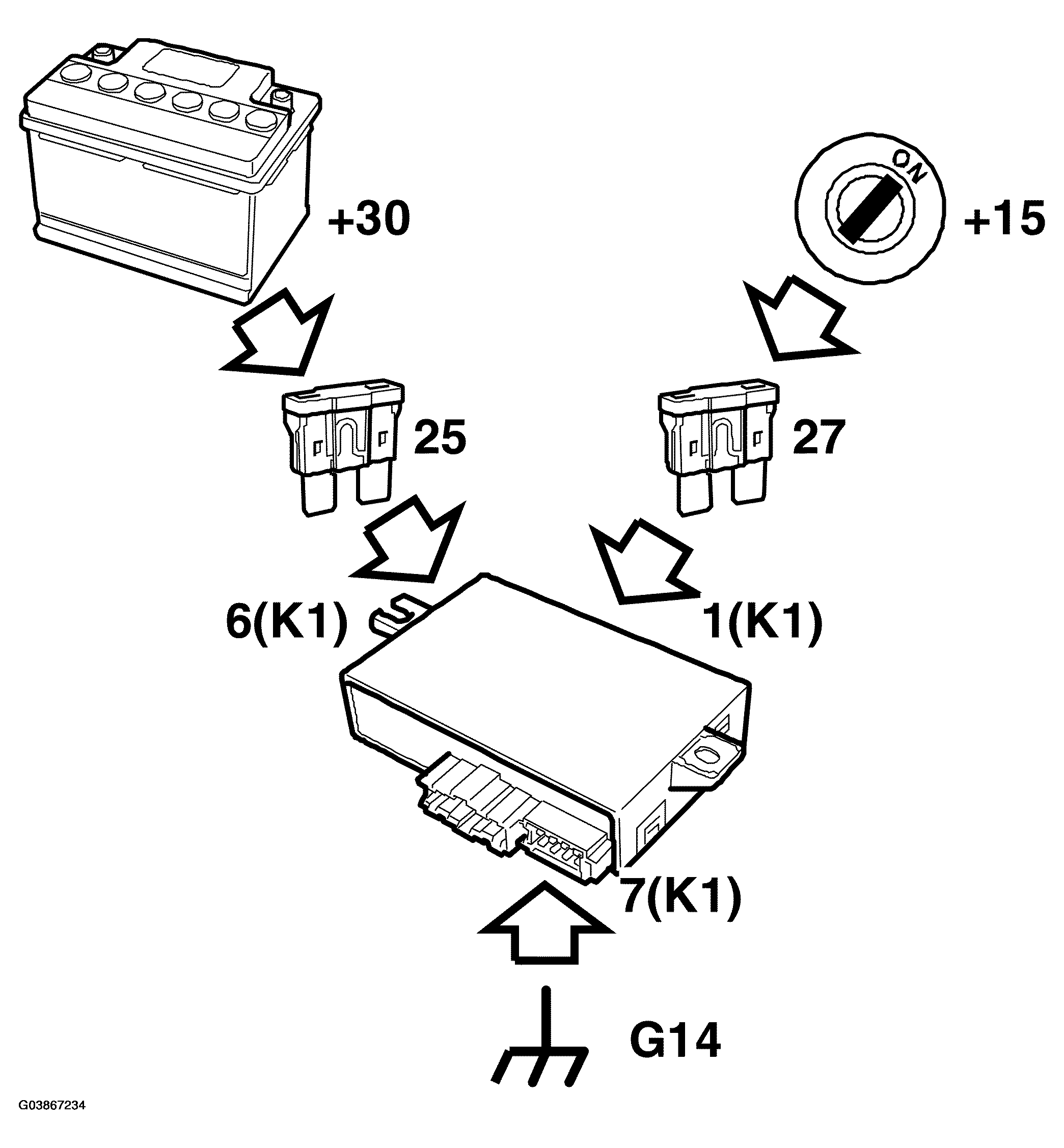

Fig 1: Identifying PSM Control Module Power Supply Communication Diagram
G03867234Courtesy of SAAB-SCANIA OF AMERICA, INC.

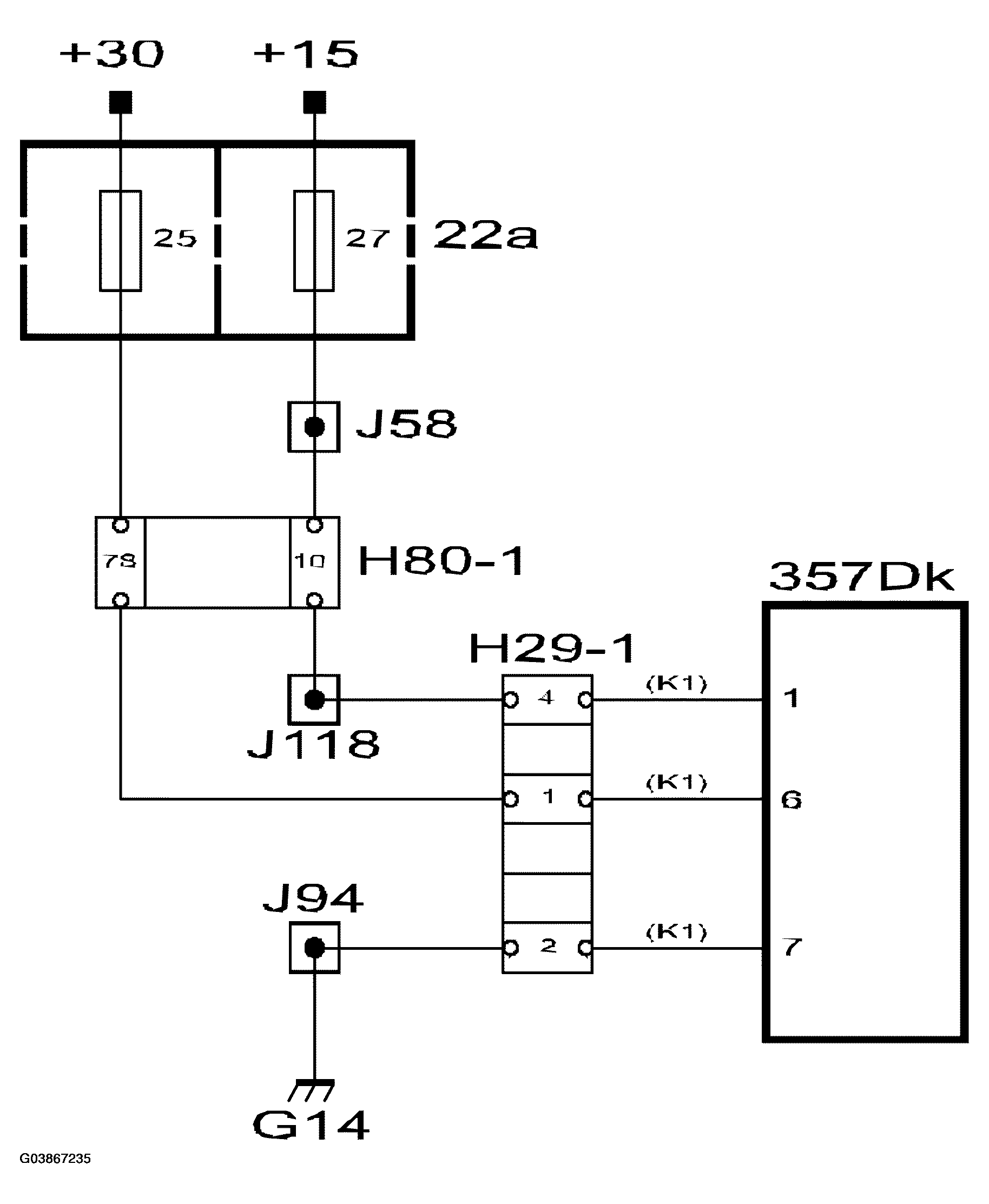

Fig 2: Identifying PSM Control Module Power Supply Circuit Diagram
G03867235Courtesy of SAAB-SCANIA OF AMERICA, INC.
