Home >> Saab >> 2005 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Gear Selector Mechanism (Automatic) >> Adjustment - Replacement >> SPORT button >> To remove

To remove

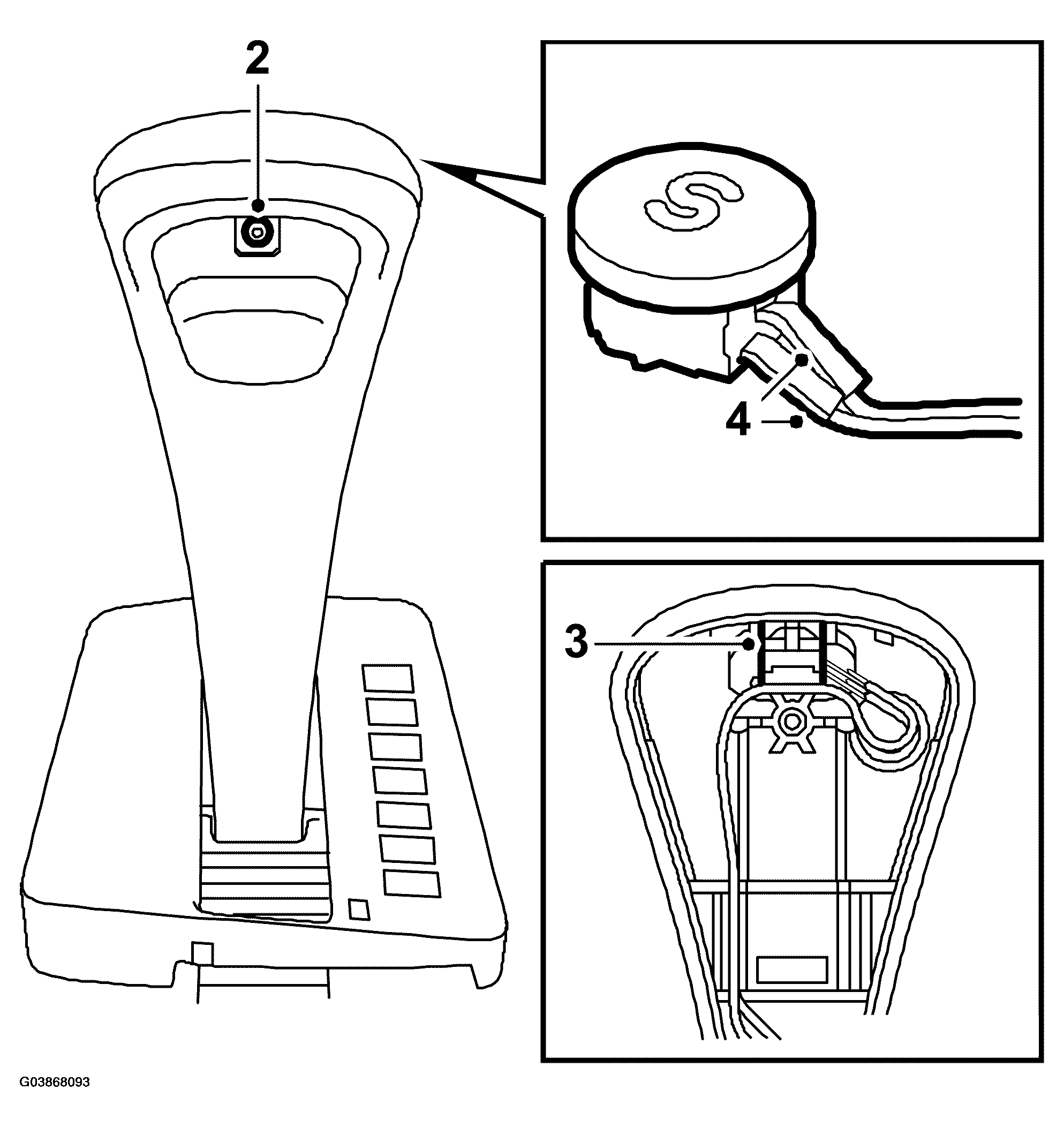

Fig 1: Illustration For Step 2 - 4
G03868093Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Put the gear selector in position N or D.
  2. Remove the front part of the gear selector housing.
  3. Press up the SPORT button from below.
  4. Unsolder the SPORT button. Lay a guard underneath so the solder does not drip onto the center console.
