Power flow, 5th gear

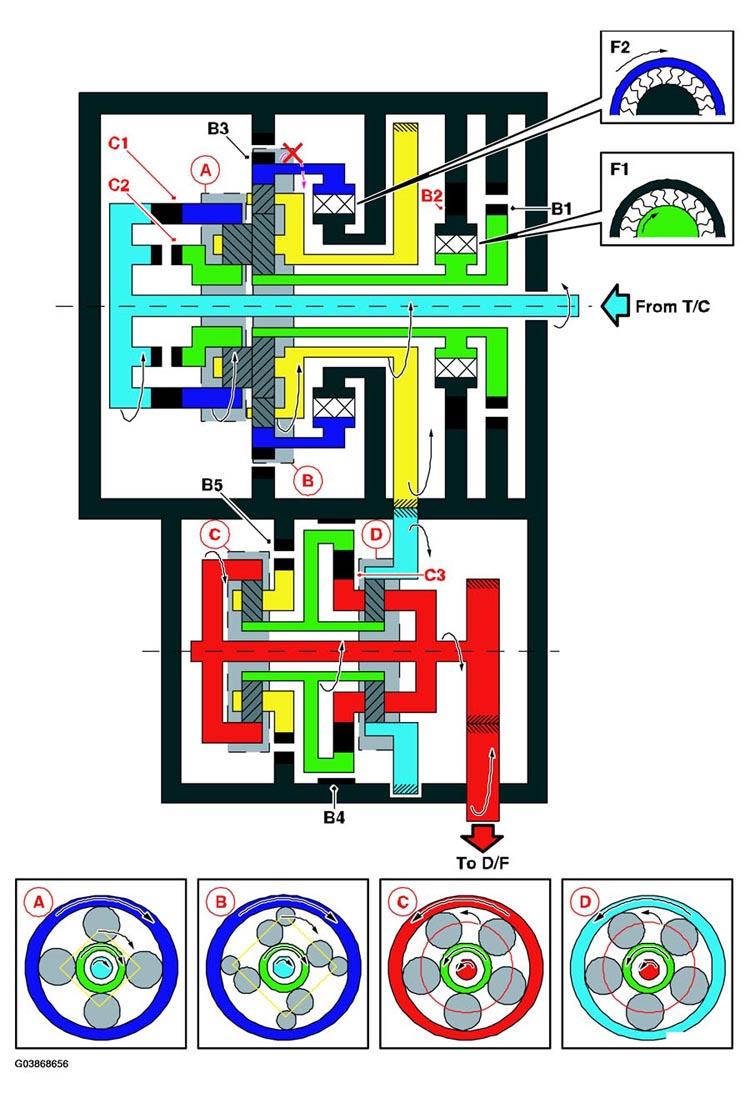

Fig 1: Identifying 5th Gear Power Flow
G03868656Courtesy of SAAB-SCANIA OF AMERICA, INC.
5TH GEAR POWER FLOW TECHNICAL DESCRIPTION

Position S1 S2 S3 S4 S5 C1 C2 C3 B1 B2 B3 B4 B5 F1 F2
D  5th  OFF OFF OFF ON OFF ON ON ON OFF ON OFF OFF OFF OFF OFF
