Output shaft speed sensor: Diagnostics

If output speed is absent, diagnostic trouble code P0722 will be generated and the TCM will go into Limp-Home mode.

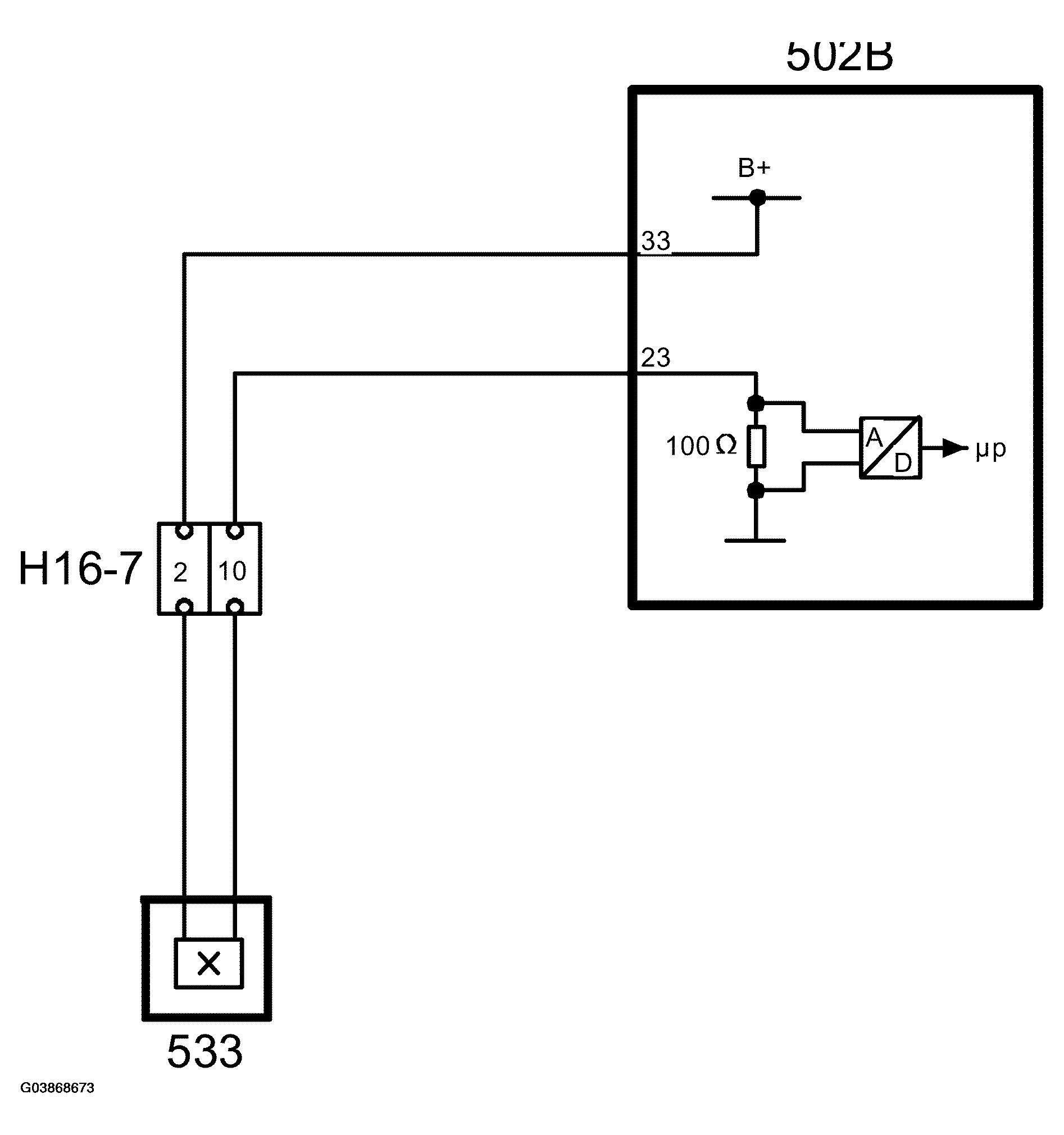

Fig 1: Wiring Diagram - Output Shaft Speed Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.
