P0705: Transmission Range Switch. Input Incorrect.: Notes

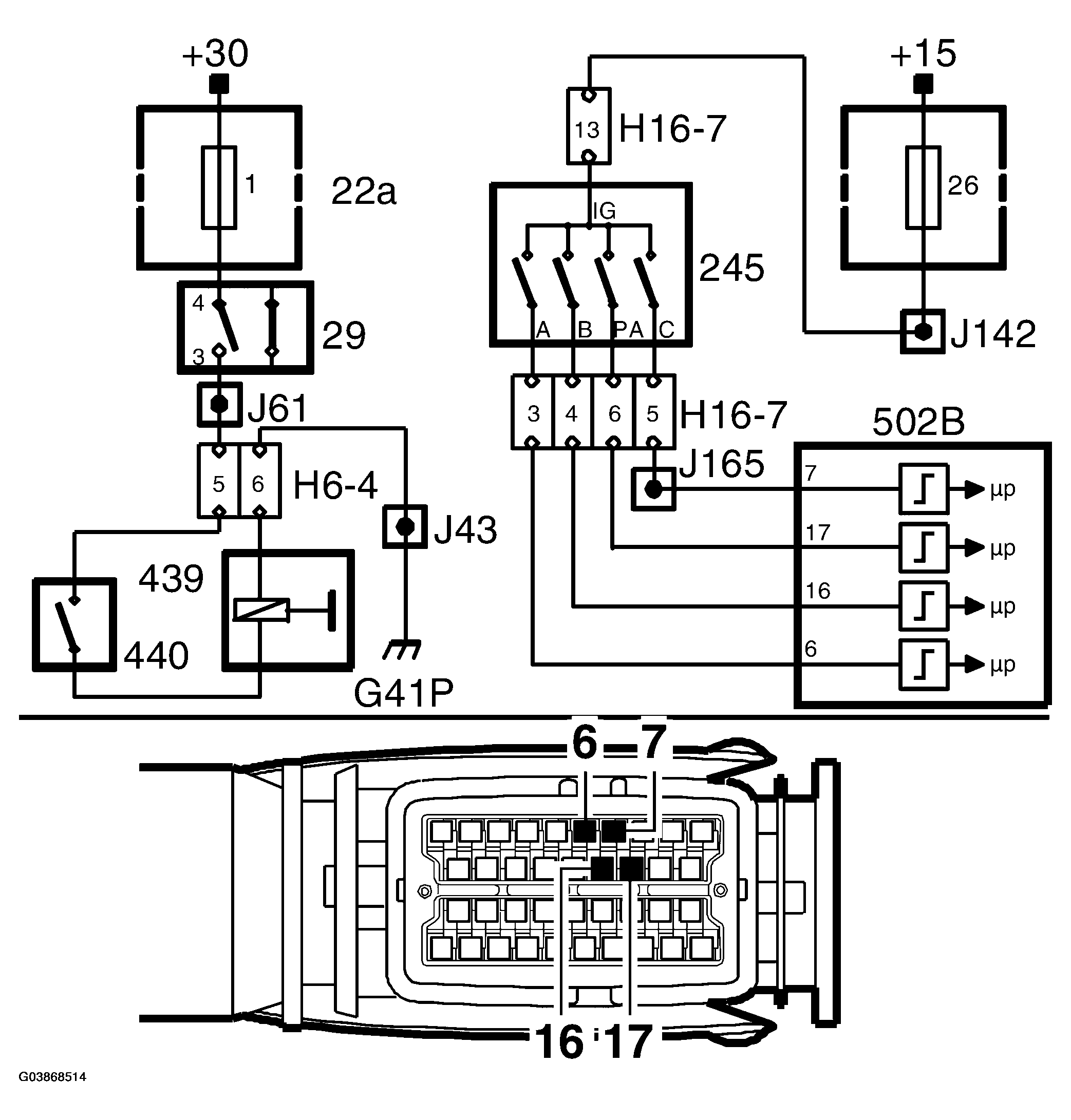

Fig 1: Wiring Diagram - P0705: Transmission Range Switch, Input Incorrect

G03868514

Courtesy of SAAB-SCANIA OF AMERICA, INC.
