DICE control module (628)

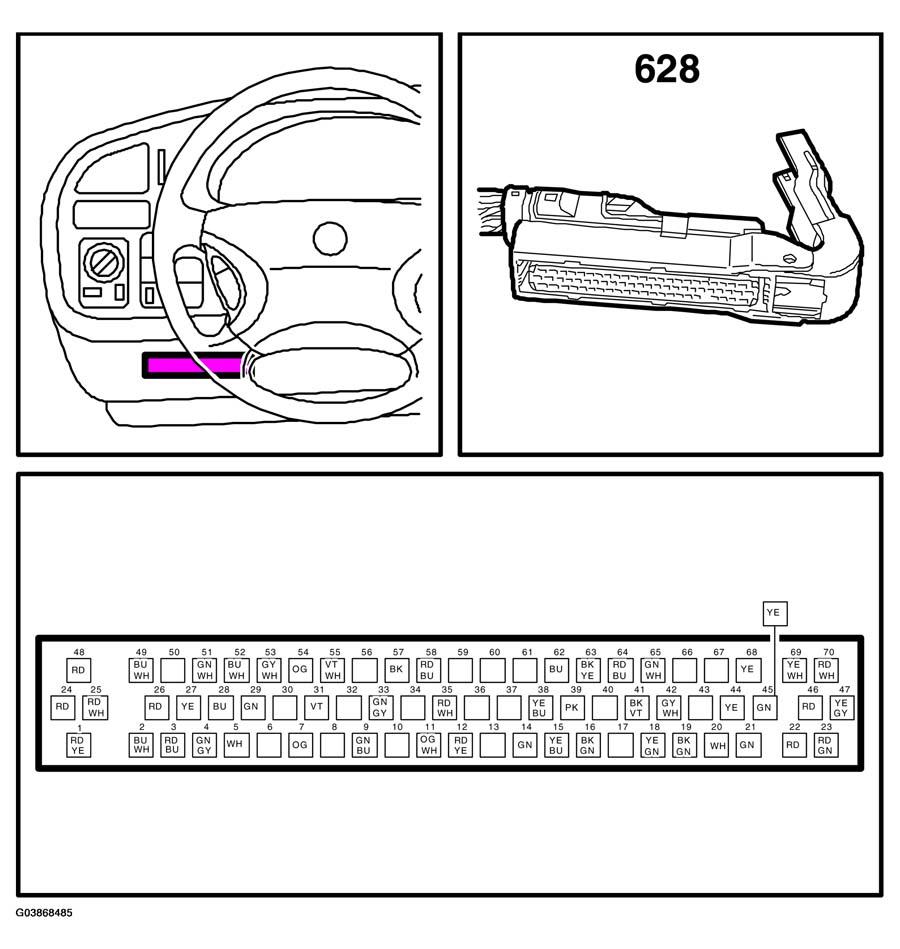

Fig 1: Identifying DICE Control Module Location And Connector Pinouts (LHD)

G03868485

Courtesy of SAAB-SCANIA OF AMERICA, INC.
