Output shaft speed sensor: Fitting

  1. Plug in the sensor's connector.

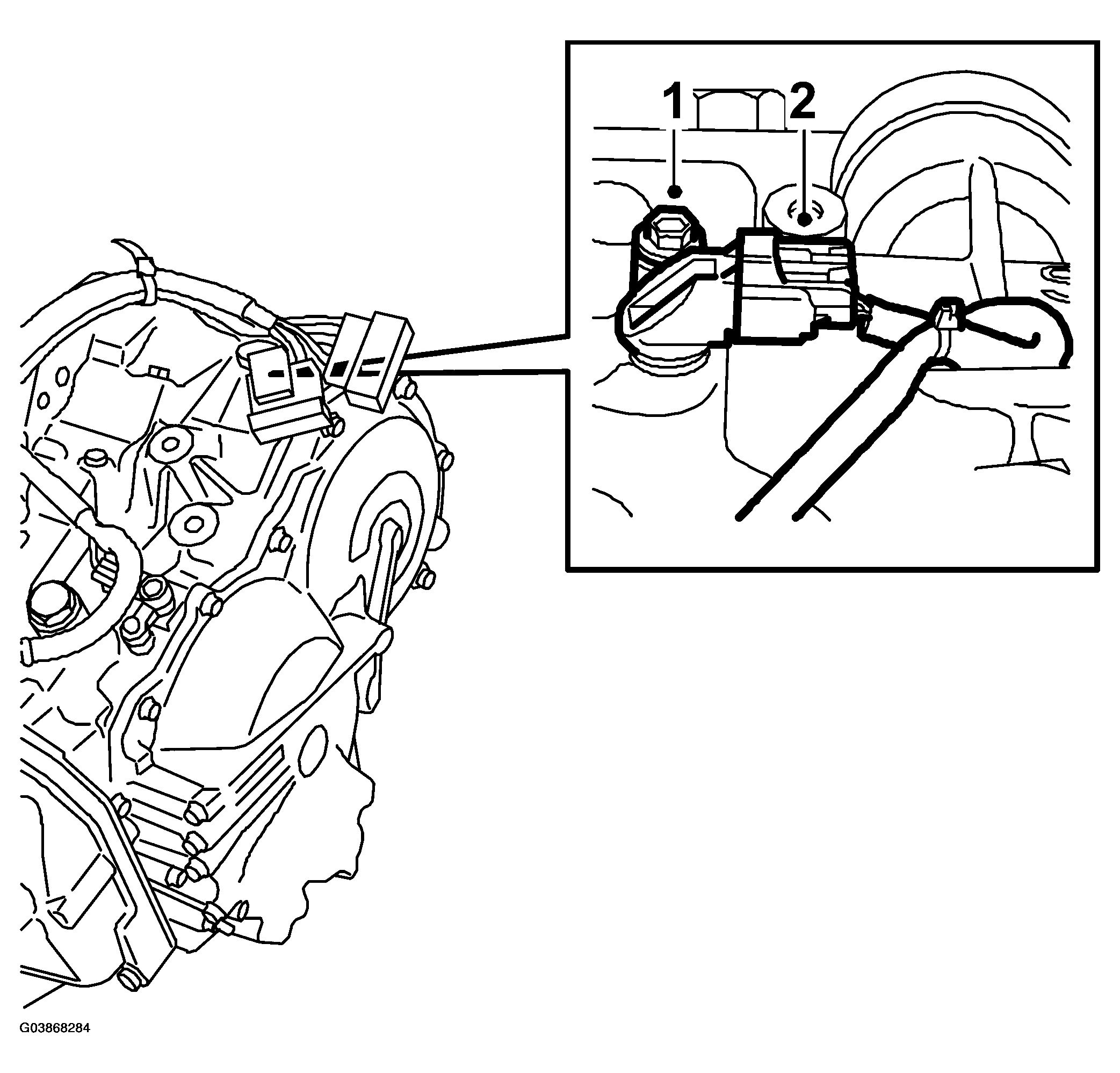

    Fig 1: Illustration For Steps 1-2
    G03868284Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the sensor in place and tighten the retaining bolt.

    Tightening torque: 6 Nm (4.5 lbf ft)

  3. Fit the electrical distribution unit.

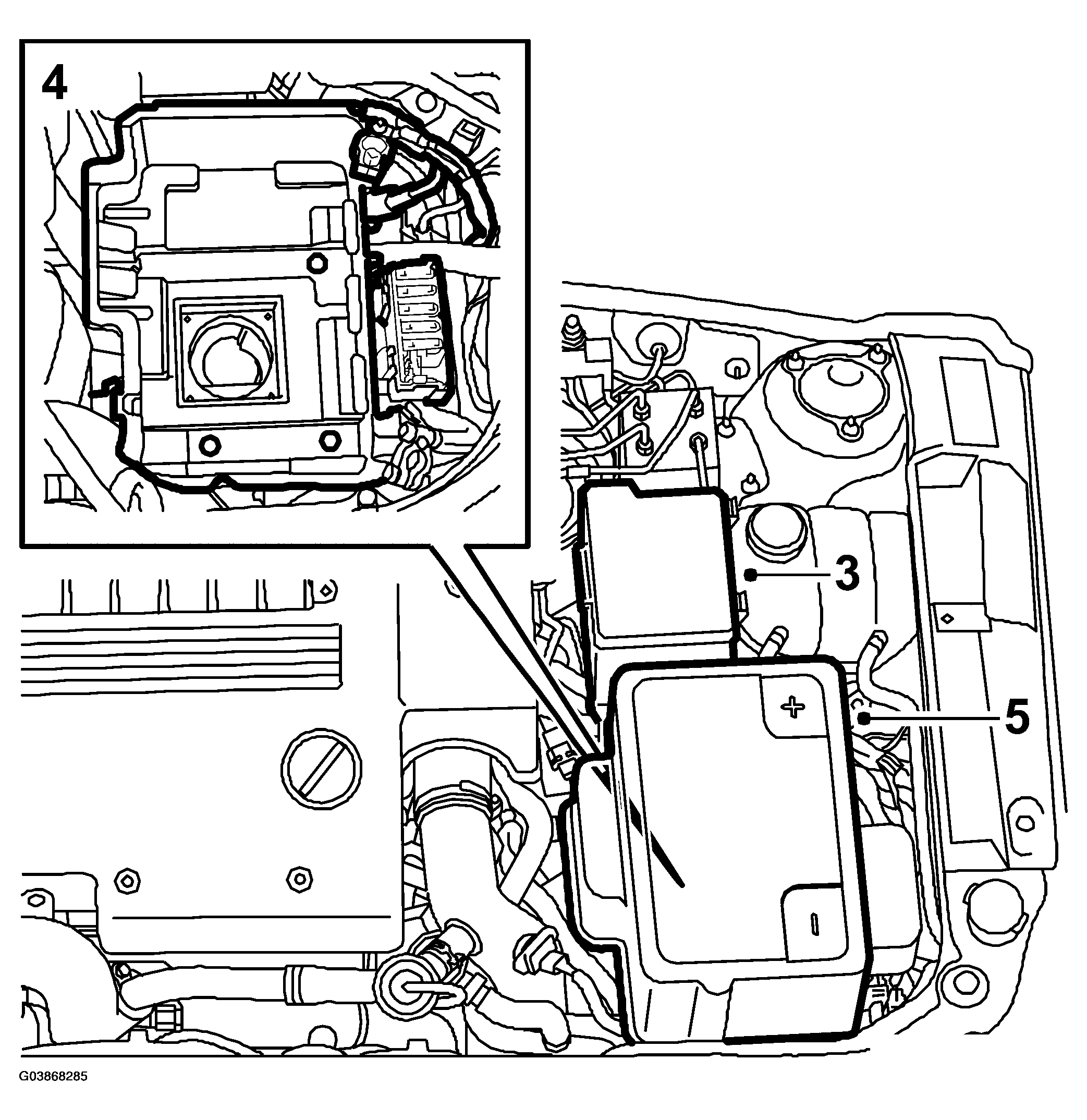

    Fig 2: Illustration For Steps 3-5
    G03868285Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the battery tray and MAXI fuse board.
  5. Fit the battery and battery cover.
  6. Set the right time on the clock.
