Home >> Saab >> 2005 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Suspension >> Front Suspension >> Adjustment/Replacement >> Subframe bushes >> To remove

To remove

  1. Remove the subframe, see SUBFRAME, PETROL ENGINES, CHANGE .
  2. Remove the bush using 89 96 779 PRESS SLEEVE KIT, FRONT ASSEMBLY .

    A: KM-907-11

    B: KM-907-12

    C: KM-907-30

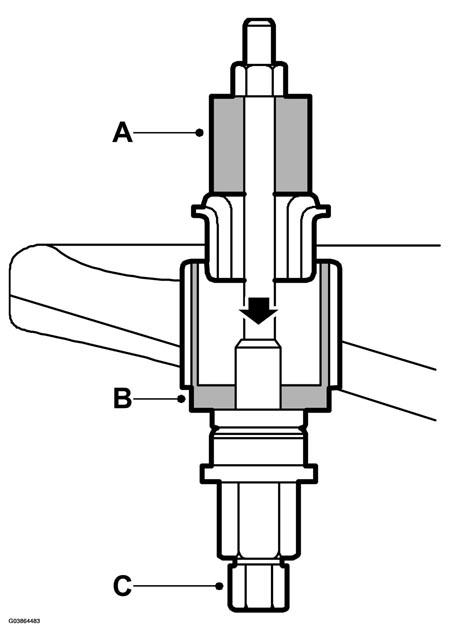

    Fig 1: Identifying Press Sleeve Kit Components (Installing)
    G03864483Courtesy of SAAB-SCANIA OF AMERICA, INC.
