Wheel Geometry: Camber

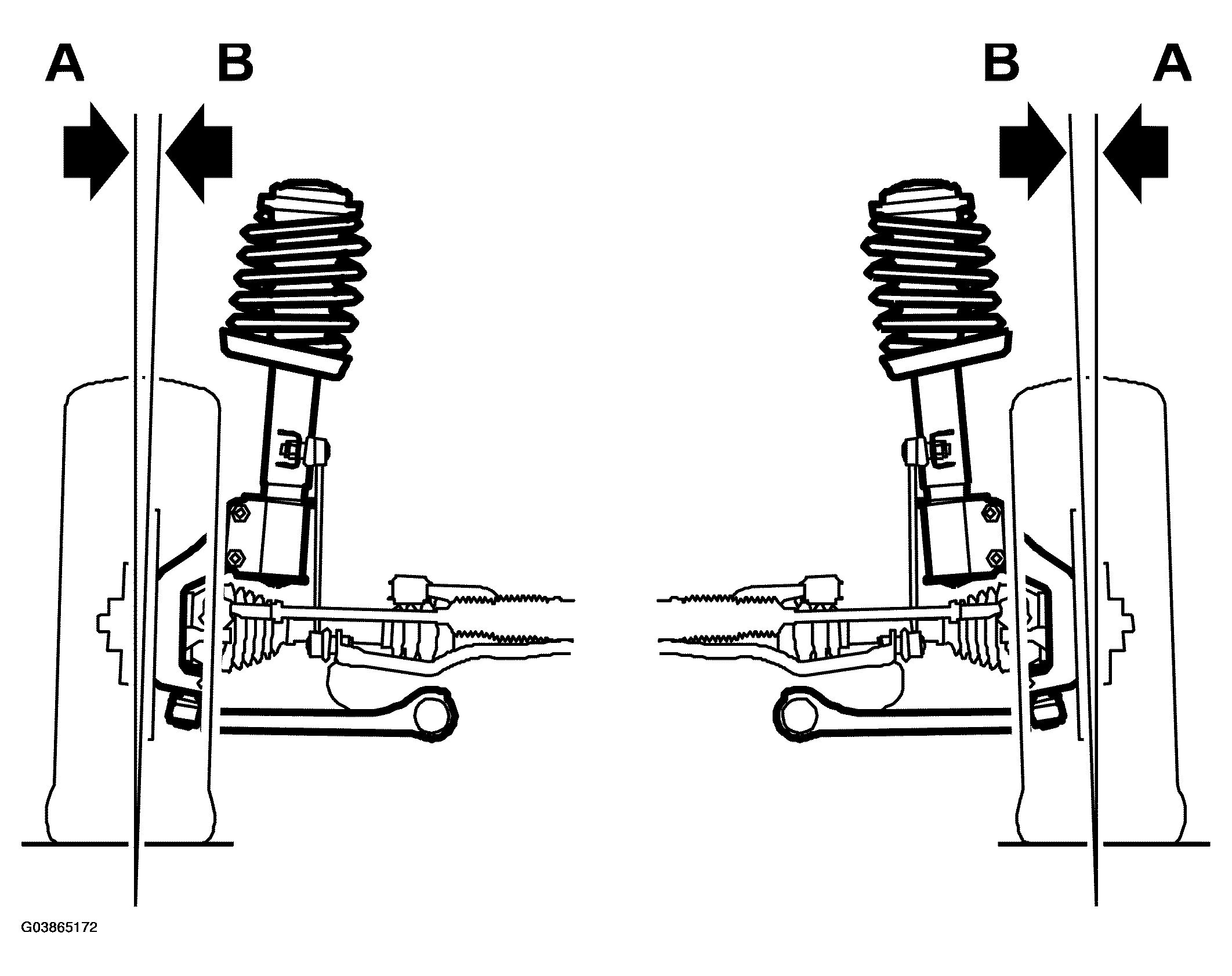

Fig 1: Identifying Camber

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Camber refers to the angle (B) formed between the wheel and the vertical (A), see figure.

If the wheel leans outwards, the camber is said to be positive (+) and if it leans inwards the camber is said to be negative (-). Wheel camber on the Saab 9-5 is negative.

Wheel camber cannot be adjusted.
