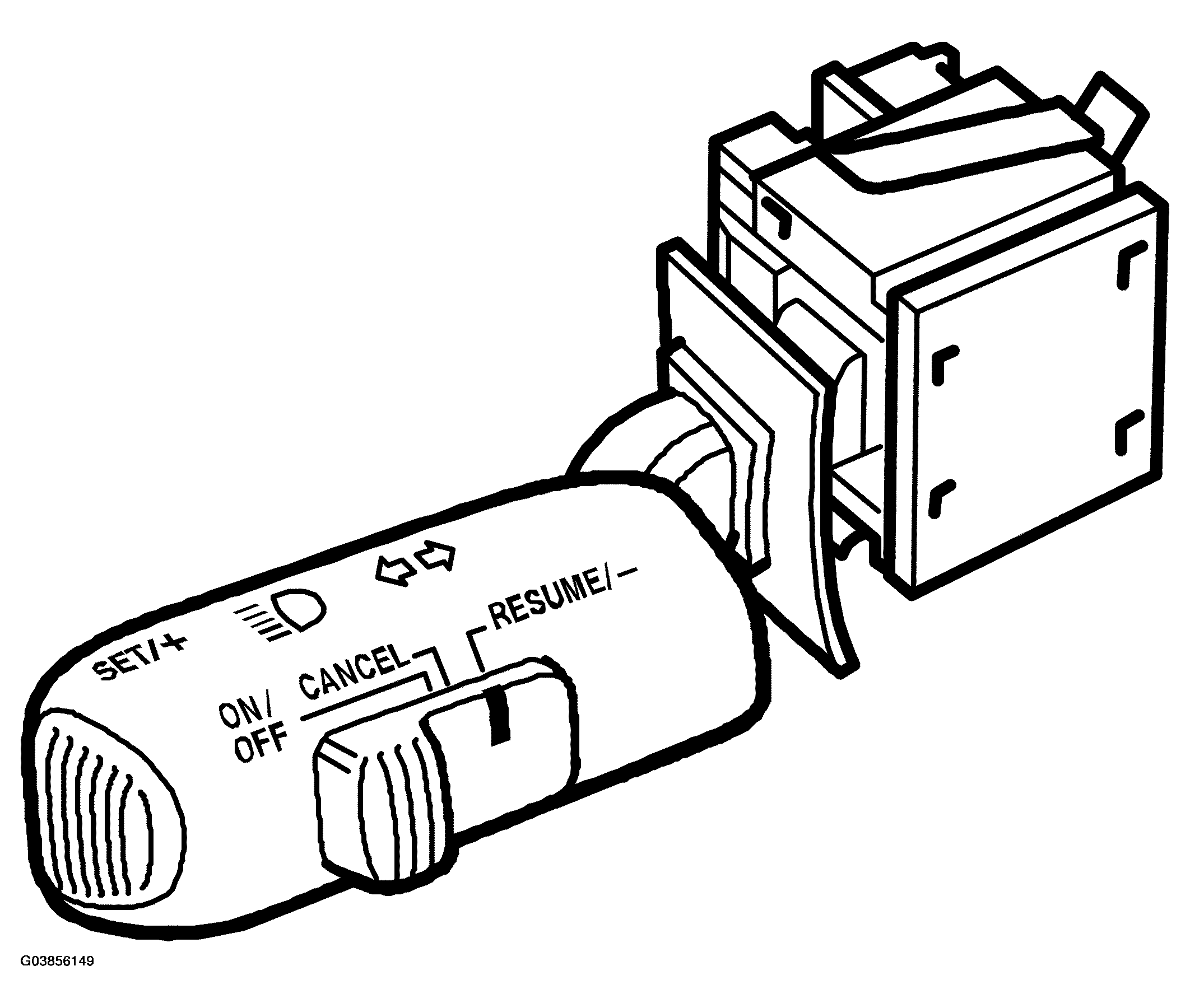

Switch, Cruise Control (141)
CRUISE CONTROL SWITCH - TECHNICAL DATA
| Location | Integrated in direction indicator stalk switch to left of steering wheel |
| Power supply +54 | Pin 7 |
SWITCH PINOUTS REFERENCE
| From switch pin | To control module pin | Input designation in diagnostic tool | SWITCH POSITION | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Zero position | ON/OFF | SET/+ | RESUME/- | CANCEL | |||||||
| 8 | 52 | A | (1) | (2) | (1) | (1) | (1) | ||||
| 10 | 5 | B | (1) | (2) | (2) | (1) | (2) | ||||
| 9 | 30 | C | (1) | (2) | (1) | (2) | (2) | ||||
|
|||||||||||
