Relay, Fuel Pump (102)

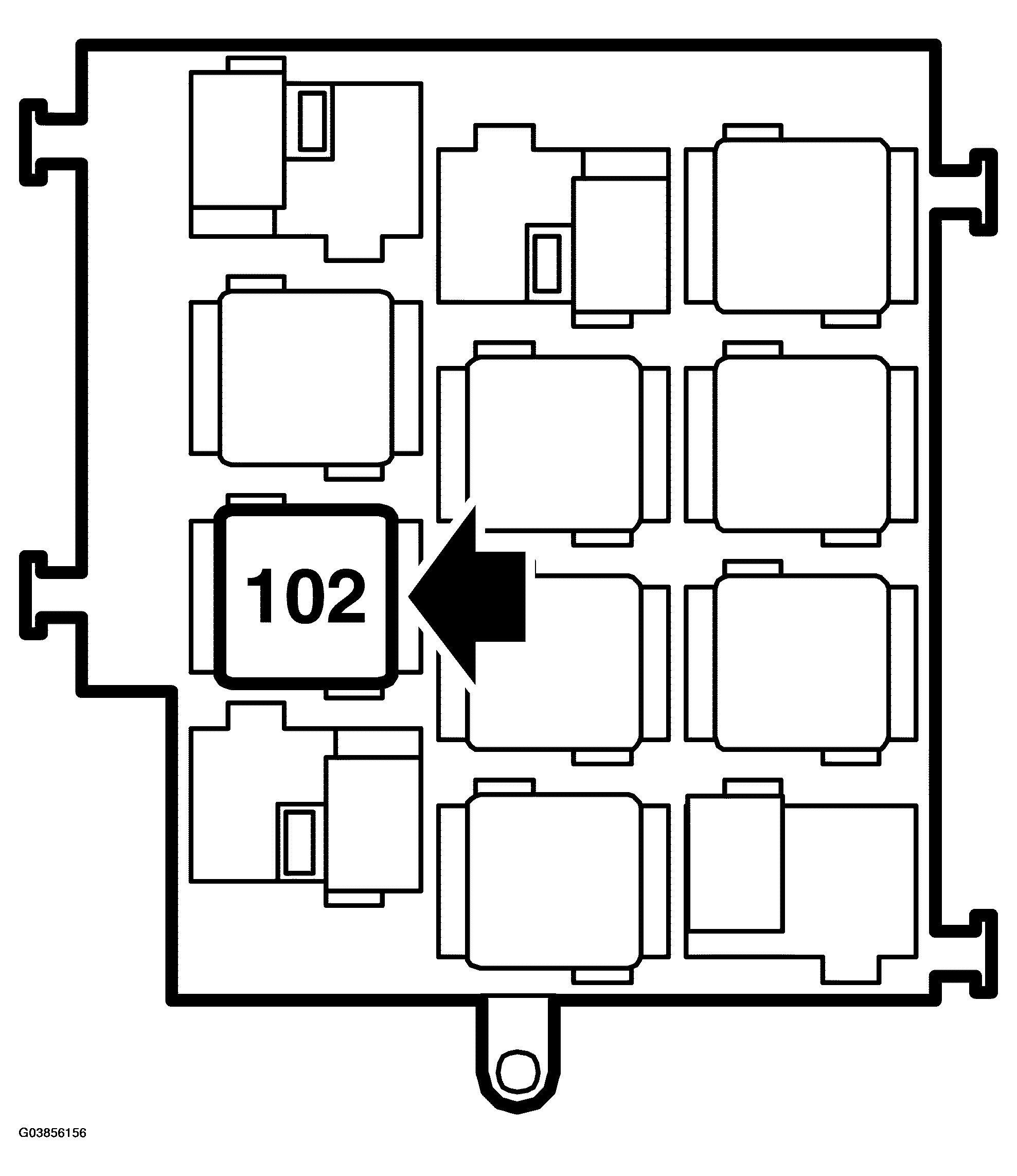

Fig 1: Identifying Fuel Pump Relay
G03856156Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL PUMP RELAY - TECHNICAL DATA

Location   On main relay board in dashboard
Resistance, coil at 20°C (68°F) Ohm 85+/-5
Nominal control voltage V 12
Rated current A 30
