Relay, A/C (156)

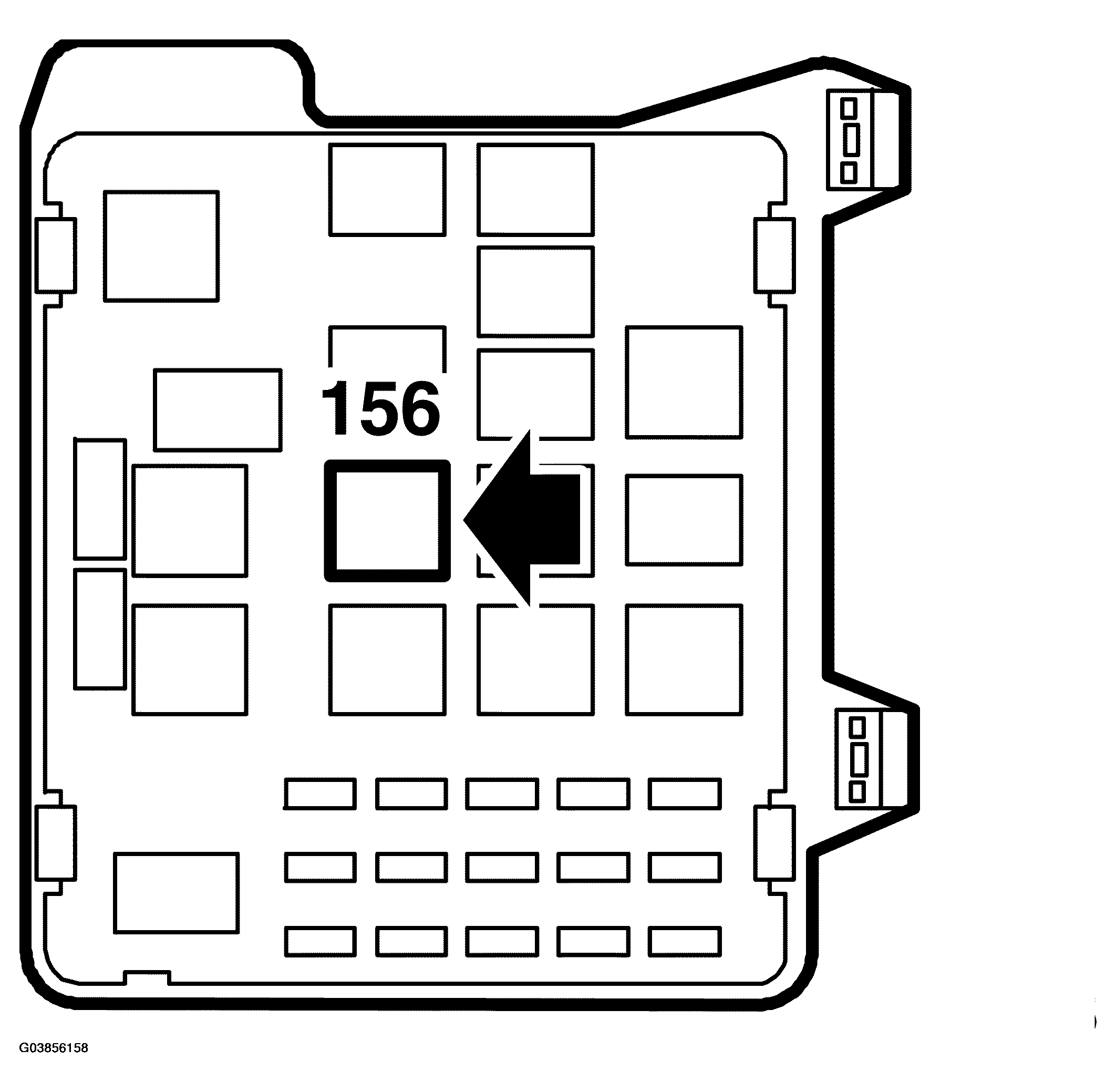

Fig 1: Identifying A/C Relay
G03856158Courtesy of SAAB-SCANIA OF AMERICA, INC.
A/C RELAY - TECHNICAL DATA

Location   In main relay board in engine bay
Resistance, coil at 20 °C (68 °F) Ohm 85+/-5
Nominal control voltage V 12
Rated current A 30
