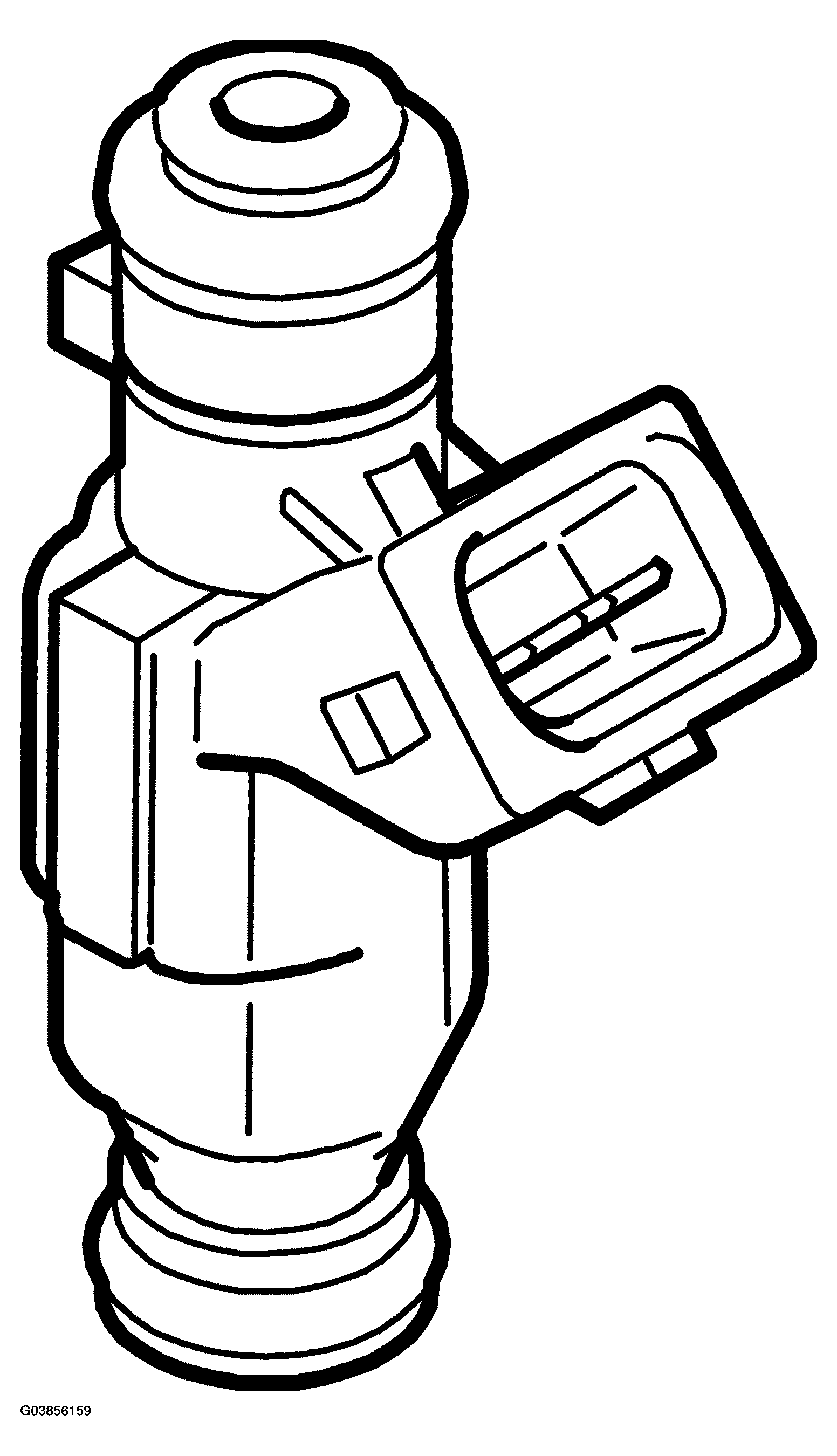

Injectors (206)
Courtesy of SAAB-SCANIA OF AMERICA, INC. INJECTOR - TECHNICAL DATA
| Location |
|
On top of intake manifold |
| Part number (Bosch) |
|
0280 156 023 |
| Type |
|
Bosch EV6 E, brown |
| Version |
|
4-hole |
| Resistance at 20 °C (68 °F) |
Ohm |
15.95+/-0.8 |
| Flow rating (at 3 bar fuel pressure) |
ml/30 s |
176 +/-7 |
| Maximum permissible difference between injectors |
ml |
20 |
