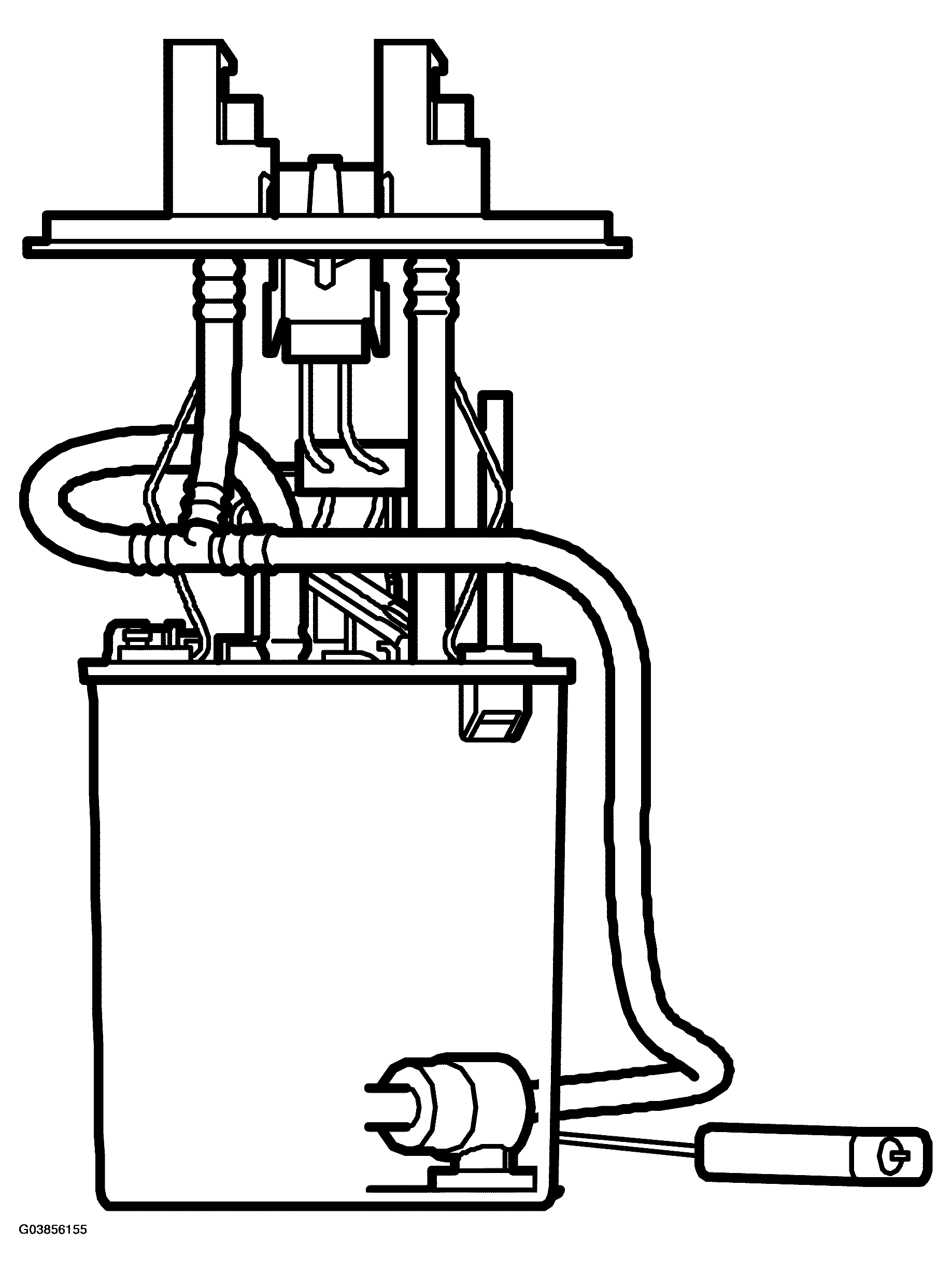

Fuel Pump (323)
Courtesy of SAAB-SCANIA OF AMERICA, INC. FUEL PUMP - TECHNICAL DATA
| Location |
|
In the fuel tank |
| Capacity at 3.0 bar back pressure |
ml/30 s |
min 700 |
| Resistance, level sensor |
Ohm |
Empty tank: 50 +/- 1.5
Full tank: 425 +/- 6.5 |
| Tightening torque, screw cap |
Nm (lbf ft) |
75 (55) |
