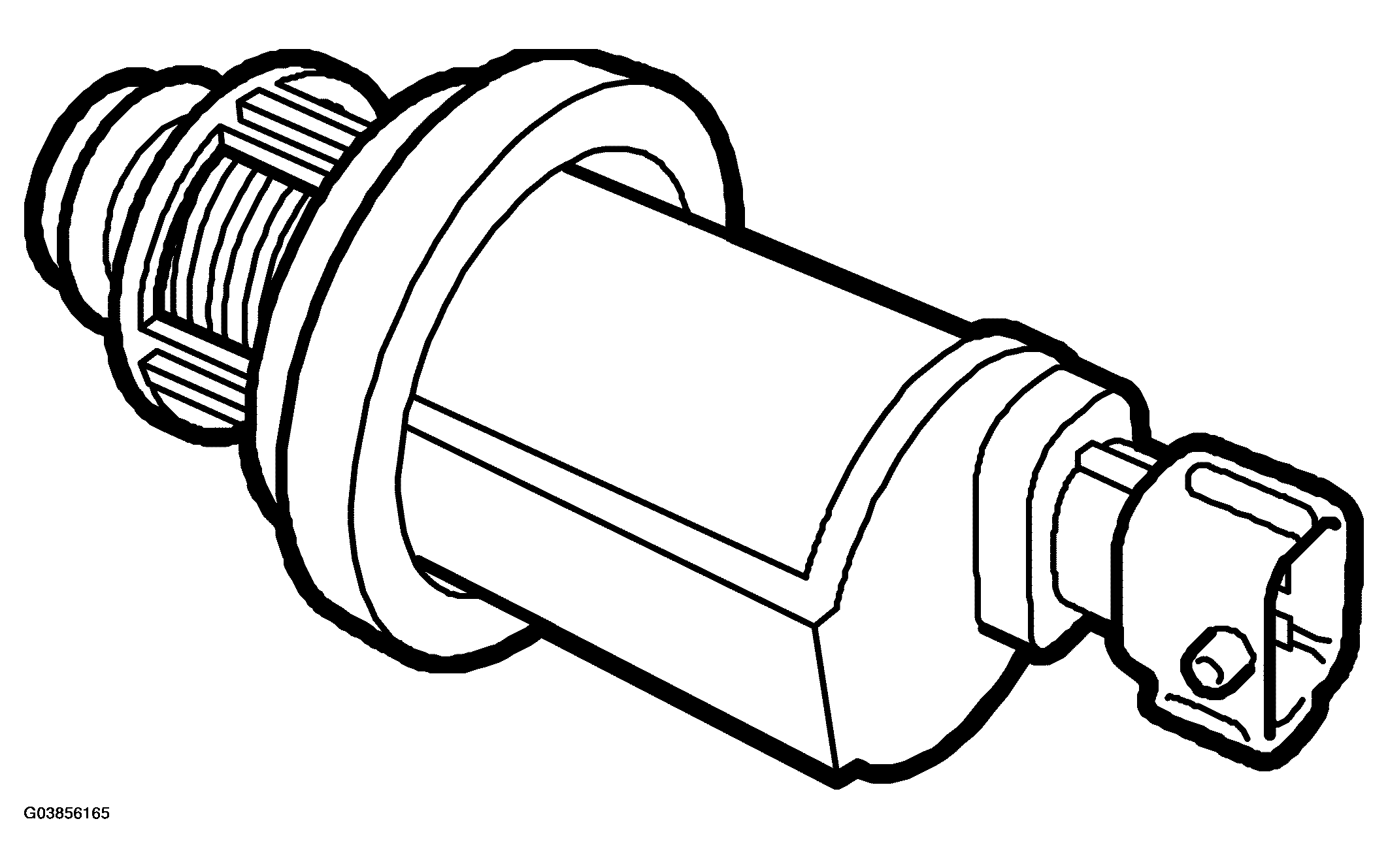

EVAP Close Control Valve (588)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Present on certain models.
EVAP CLOSE CONTROL VALVE - TECHNICAL DATA
| Location |
|
By fuel filler pipe |
| Type |
|
Pierburg |
| Characteristics |
|
Zero current open |
| Resistance at 20°C (68°F) |
Ohm |
24.5+/-1.5 |
| Power supply |
12 V |
|
