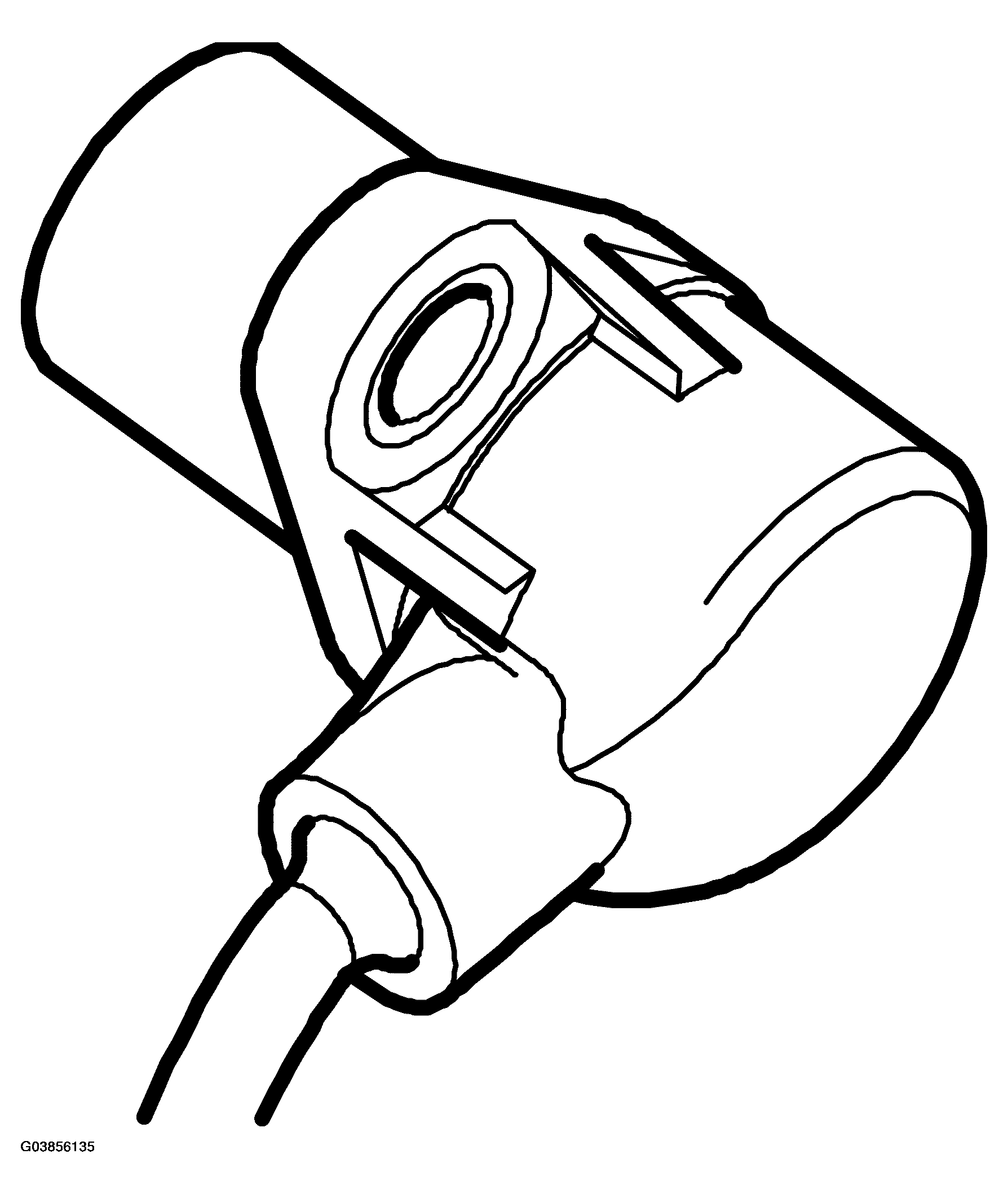

Crankshaft Position Sensor (345)
Courtesy of SAAB-SCANIA OF AMERICA, INC. CRANKSHAFT POSITION SENSOR - TECHNICAL DATA
| Location |
|
Under exhaust manifold |
| Type |
|
Inductive sensor |
| Resistance, pins 1-2 at 20°C (68 ° F) |
Ohm |
860+/-90 |
| Slotted ring |
Number of ribs |
58 (60-2) |
| Distance sensor-slotted ring |
mm |
0.4-1.3 |
