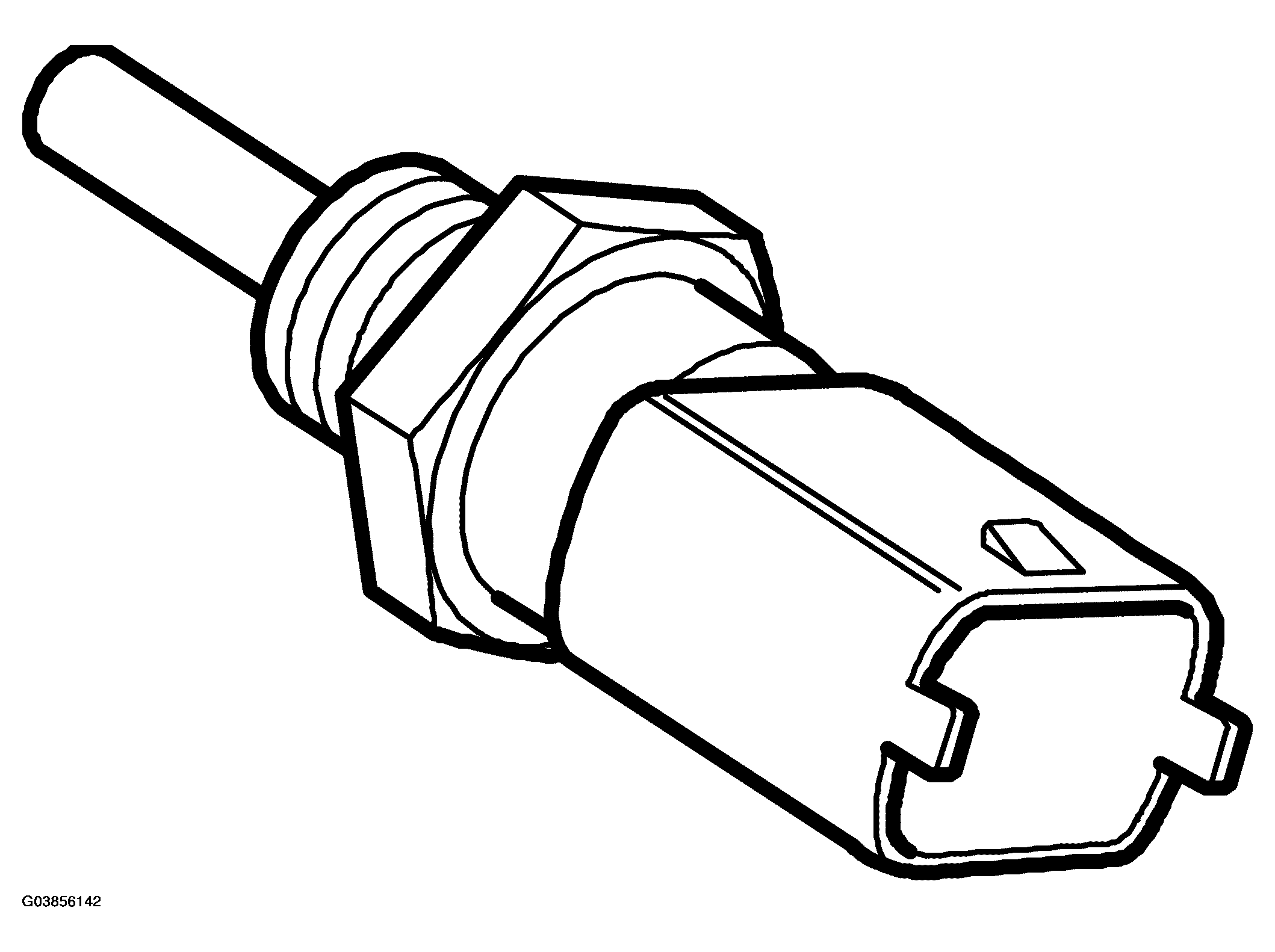

Coolant Temperature Sensor (202)
COOLANT TEMPERATURE SENSOR - TECHNICAL DATA
| Location | On the cylinder head, left-hand end | |
| °C (°F) | kOhm | V |
| -30 (-22) | 20-30 | approx. 4.8 |
| -10 (-14) | 7.0-11.4 | approx. 4.5 |
| 20 (68) | 2.1-2.9 | approx. 3.6 |
| 40 (104) | 1.0-1.3 | approx. 2.7 |
| 60 (140) | 0.565-0.670 | approx. 1.9 |
| 80 (176) | 0.295-0.365 | approx. 1.2 |
| 90 (194) | 0.24-0.26 | approx. 1.0 |
| 110 (230) | 0.14-0.16 | approx. 0.65 |
Power supply 5V through 1.0 kohm resistor in control module.
