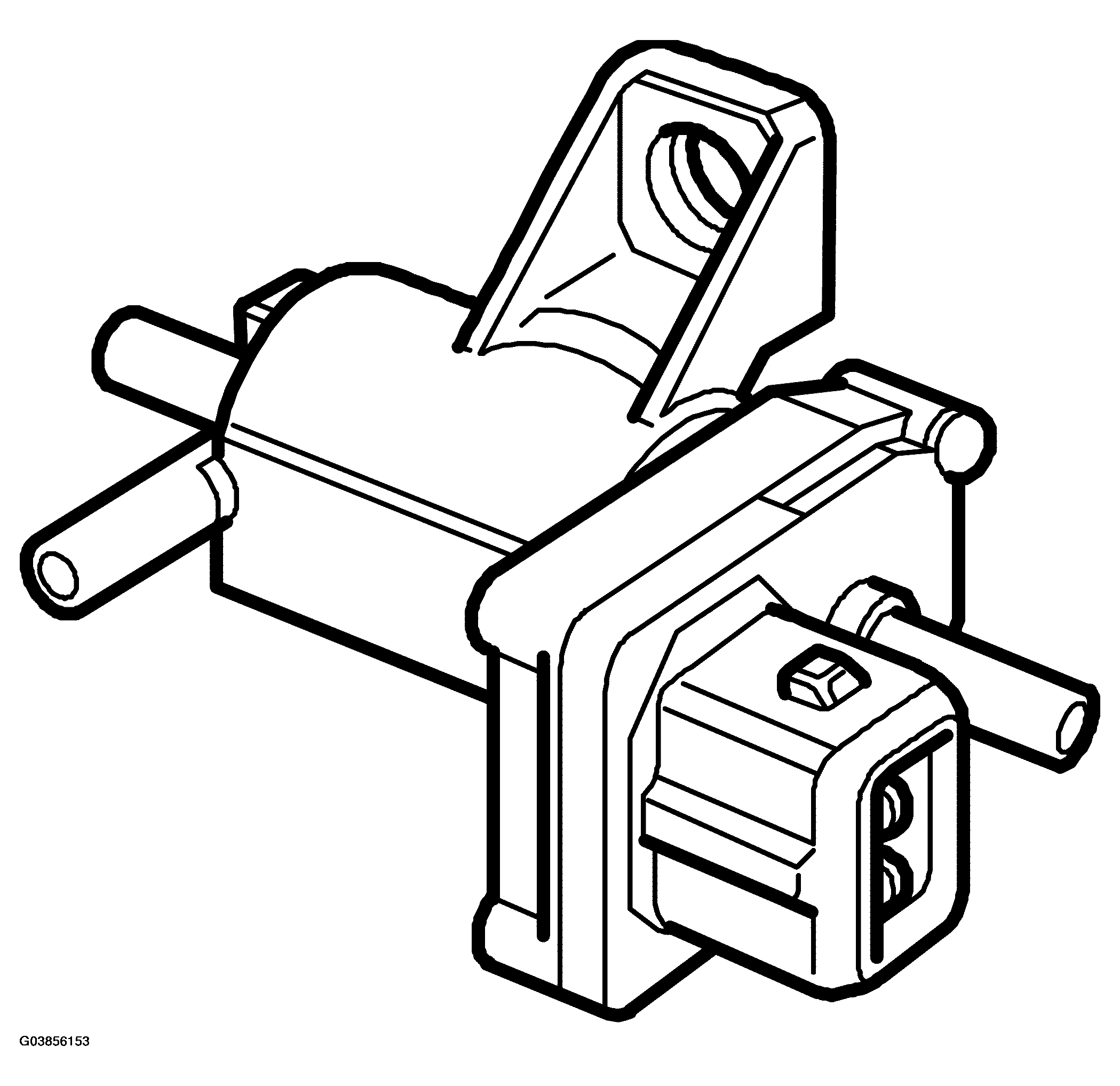

Control Valve, Bypass (605)
Courtesy of SAAB-SCANIA OF AMERICA, INC. BYPASS CONTROL VALVE - TECHNICAL DATA
| Location |
In engine bay on bulkhead partition by connector H42-5 |
| Characteristics |
Zero current closed |
| Resistance at 20°C (68°F) |
40+/-5 Ohm |
When the solenoid valve is unenergized, the bypass valve control line is connected after the throttle.
