Clutch Pedal Switch (133)

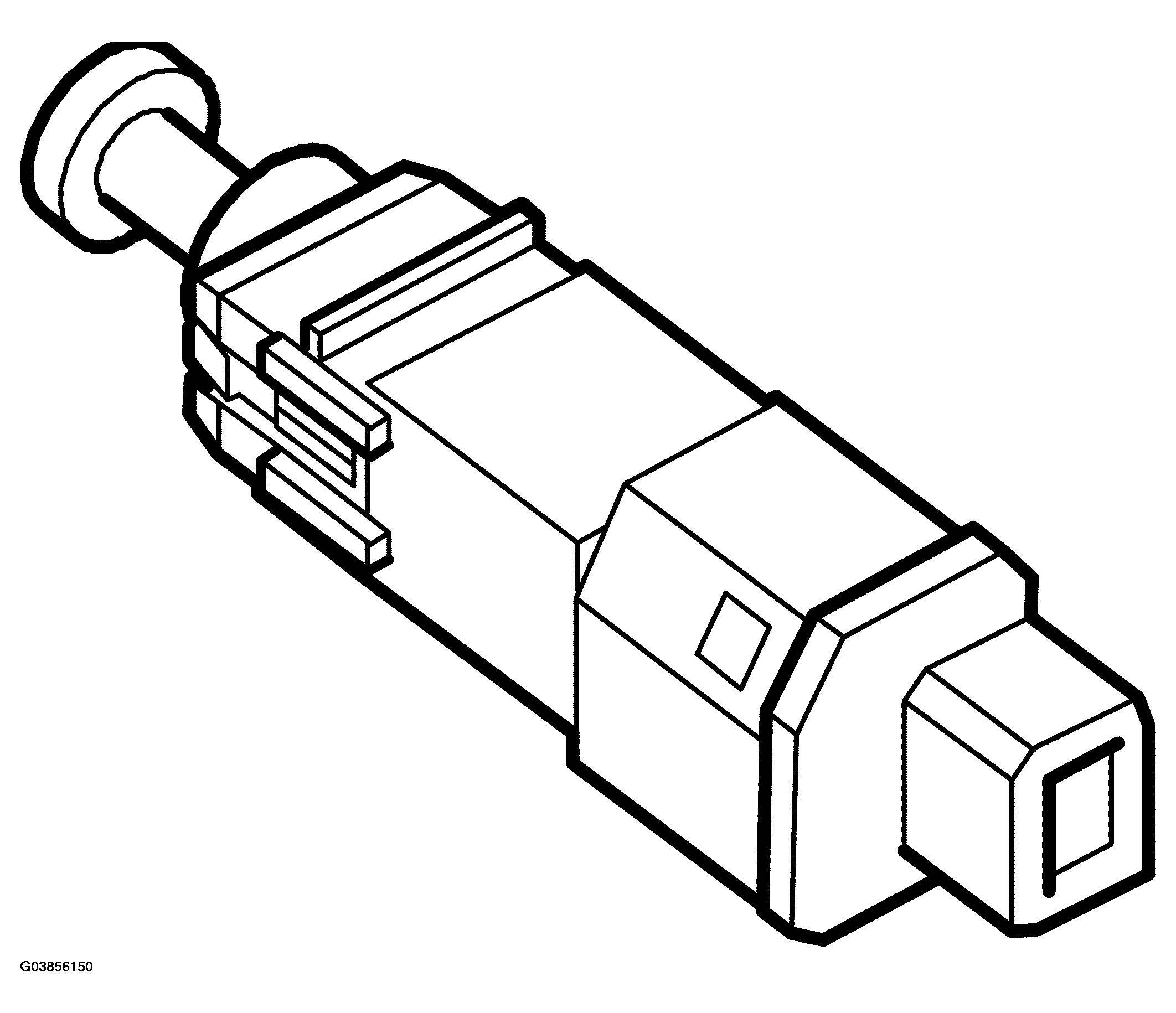

Fig 1: Identifying Clutch Pedal Switch
G03856150Courtesy of SAAB-SCANIA OF AMERICA, INC.
CLUTCH PEDAL SWITCH - TECHNICAL DATA

Location On pedal bracket
Characteristics, pins 1-2 Normally closed when pedal released
