Brake Pedal Switch (134)

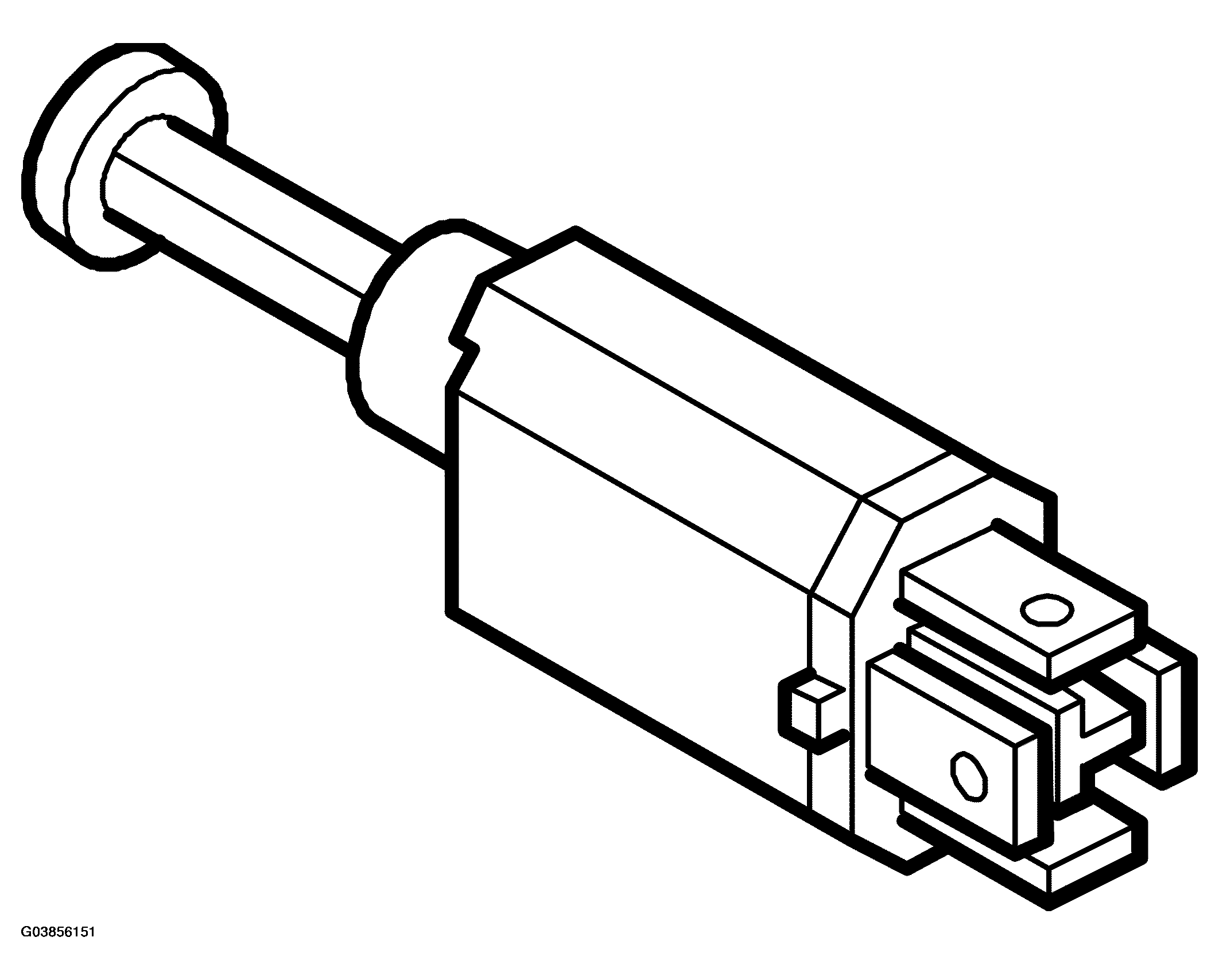

Fig 1: Identifying Brake Pedal Switch
G03856151Courtesy of SAAB-SCANIA OF AMERICA, INC.
BRAKE PEDAL SWITCH - TECHNICAL DATA

Location On pedal bracket
Characteristics, pins 1-2 Normally closed when pedal released
