P1670: Limp-Home Relay - Open Circuit Or Short To Ground: Notes

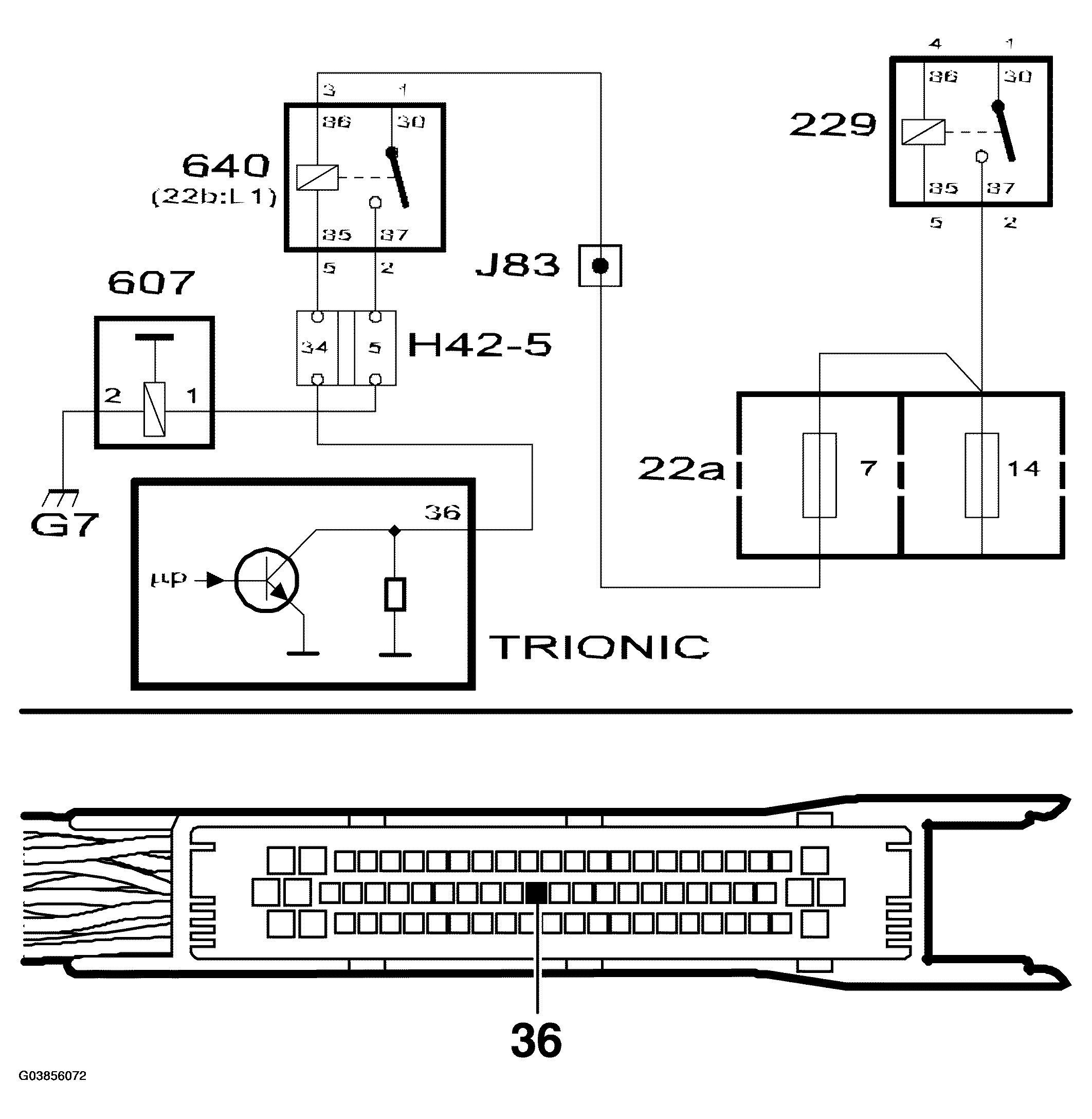

Fig 1: Limp-Home Relay - Circuit Diagram (Open Circuit Or Short To Ground)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

NOTE: The relay/electrical circuit that activates the throttle's limp - home function is faulty.
