P1532: Pedal Position Sensor 1 & 2 Circuit - Control Module Inputs Shorted To Each Other: Notes

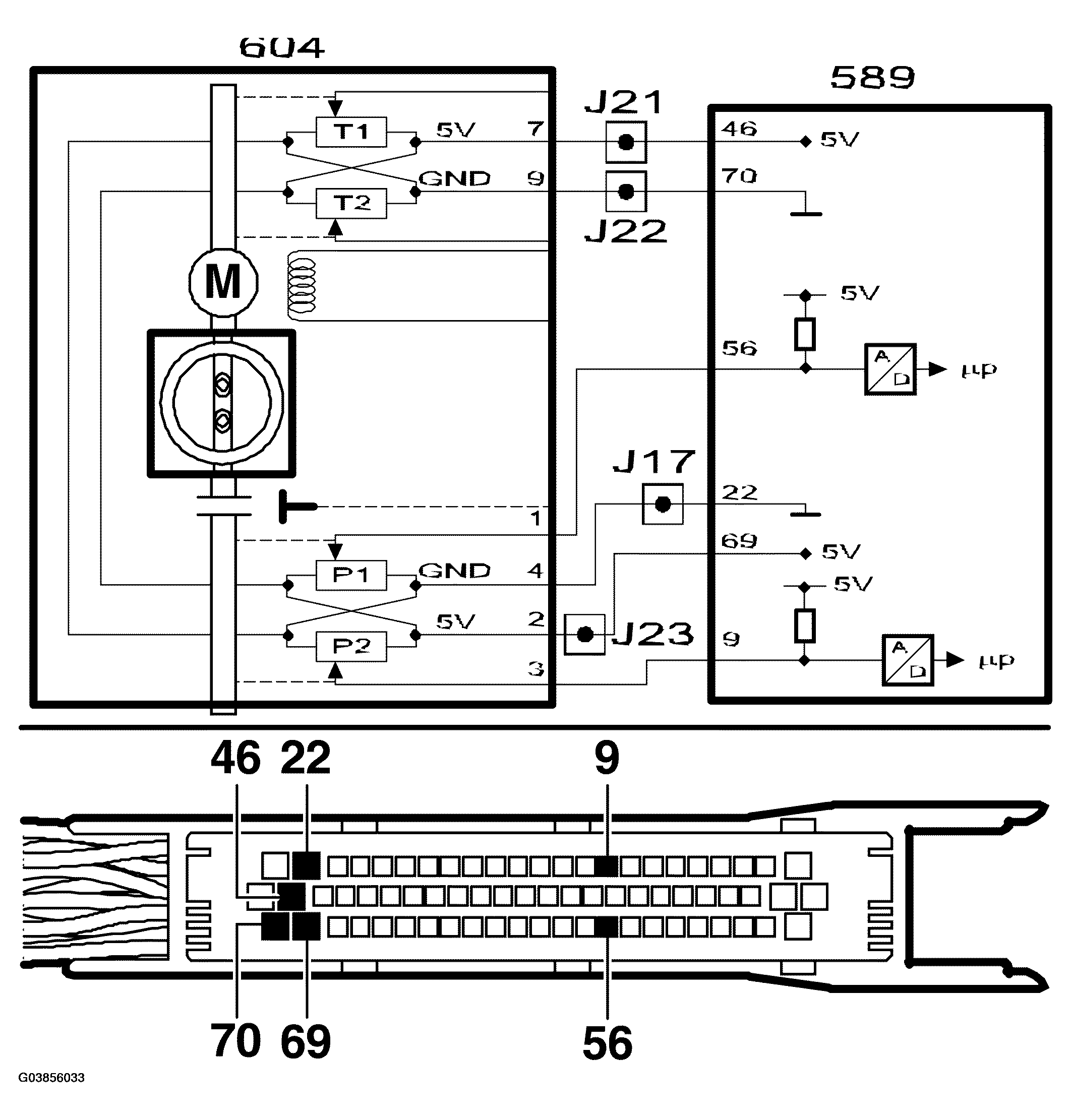

Fig 1: Pedal Position Sensor 1 And 2 Circuit - Circuit Diagram (Control Module Inputs Shorted To Each Other)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
