P1531: Pedal Position Sensor 1 & 2 Circuit - Adapted Sum Out-Of-Range: Notes

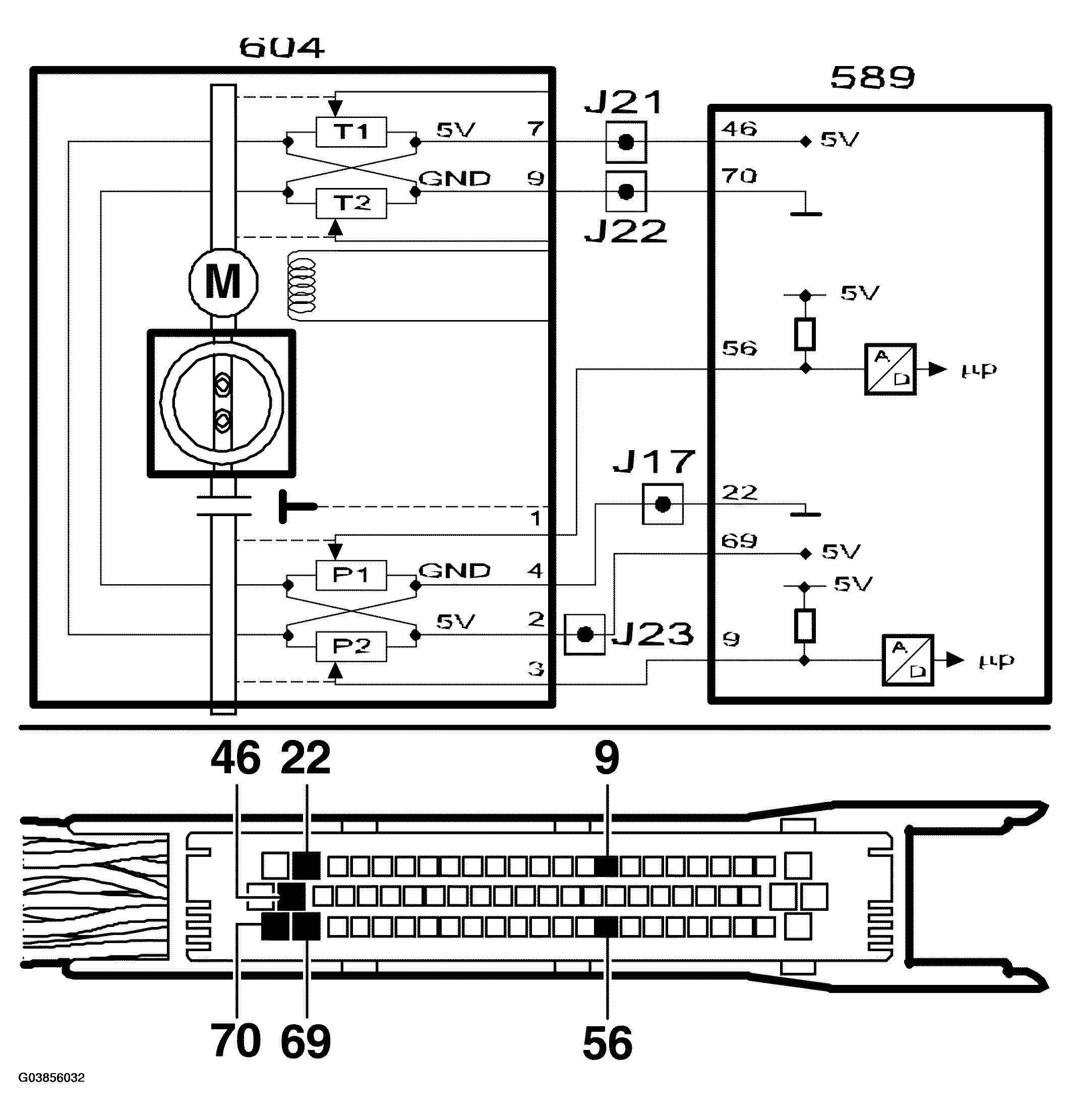

Fig 1: Pedal Position Sensor 1 And 2 Circuit - Circuit Diagram (Adapted Sum Out Of Range)
G03856032Courtesy of SAAB-SCANIA OF AMERICA, INC.
