P1530: Pedal Position Sensor 1 & 2 Circuit - Sum Out-Of-Range: Notes

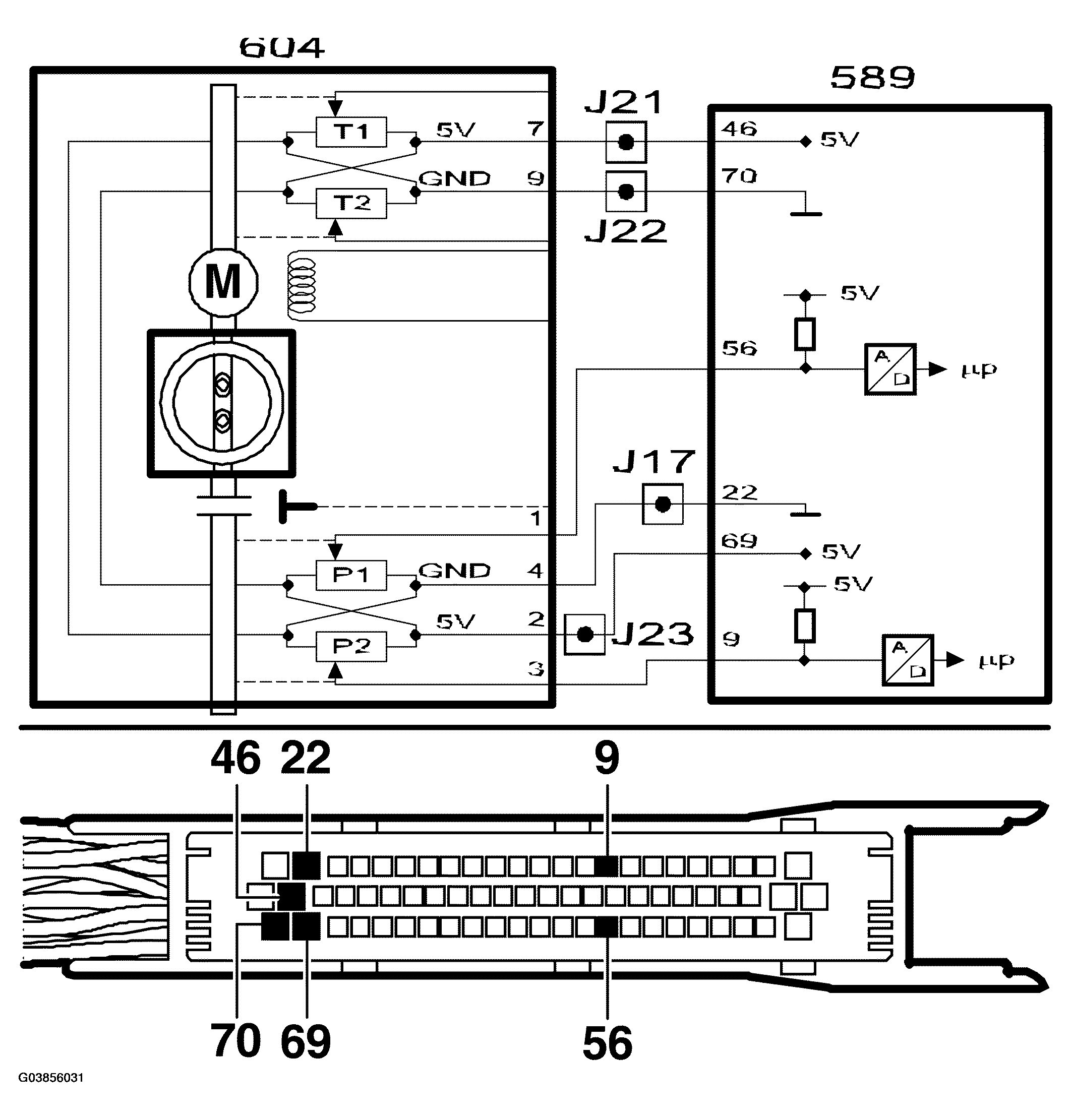

Fig 1: Pedal Position Sensor 1 And 2 Circuit - Circuit Diagram (Sum Out Of Range)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

NOTE: Faulty signal from accelerator position sensor.
