P1492: EVAP Tank Pressure Sensor - Value Too Low When Depressurized & Malfunctioning Fuel Level Sensor: Notes

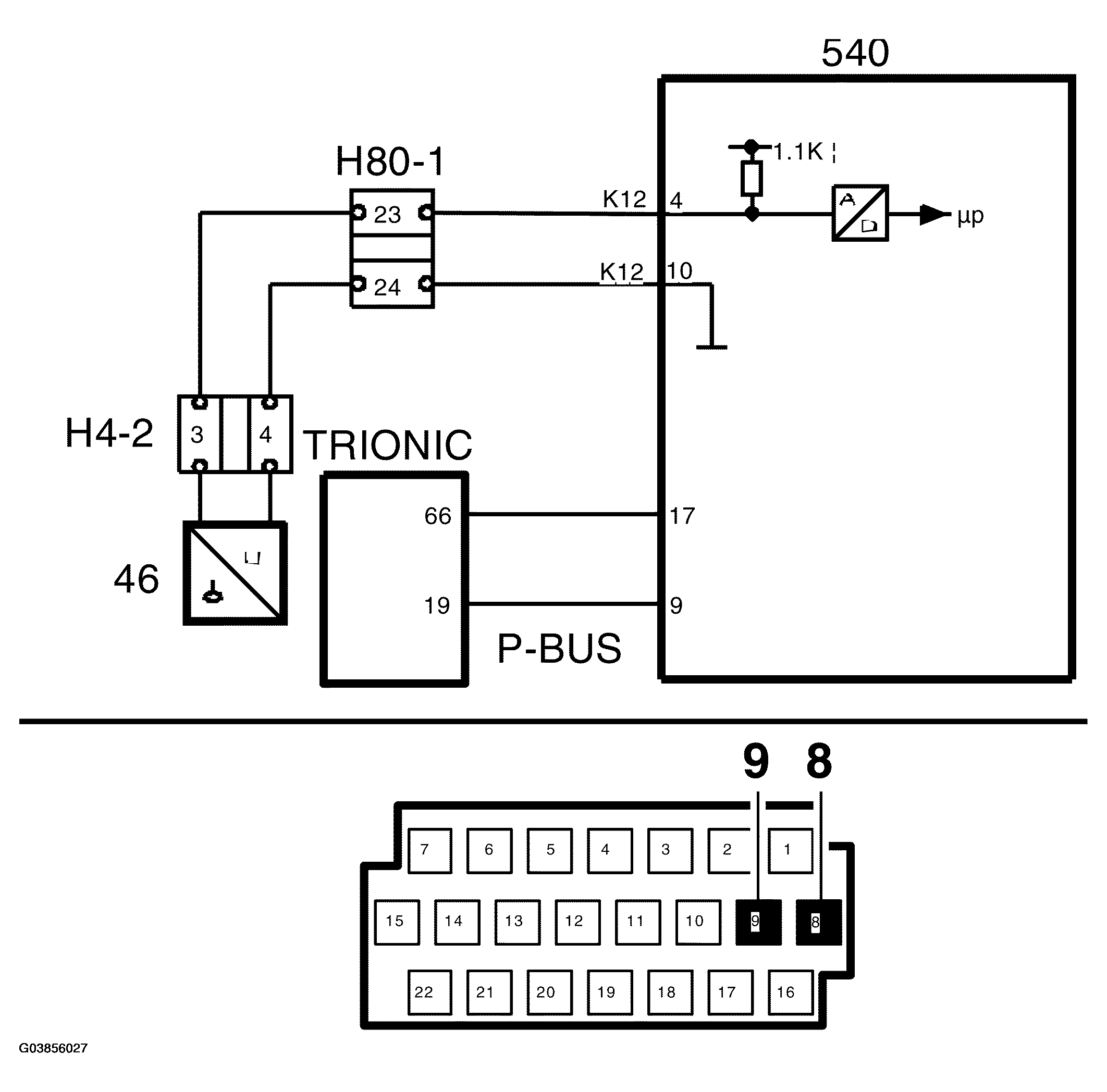

Fig 1: EVAP Tank Pressure Sensor - Circuit Diagram (Value Too Low When Depressurized And Malfunctioning Fuel Level Sensor)
G03856027Courtesy of SAAB-SCANIA OF AMERICA, INC.
