P0113: Intake Air Temperature Sensor Circuit - Short To B+/Open Circuit: Notes

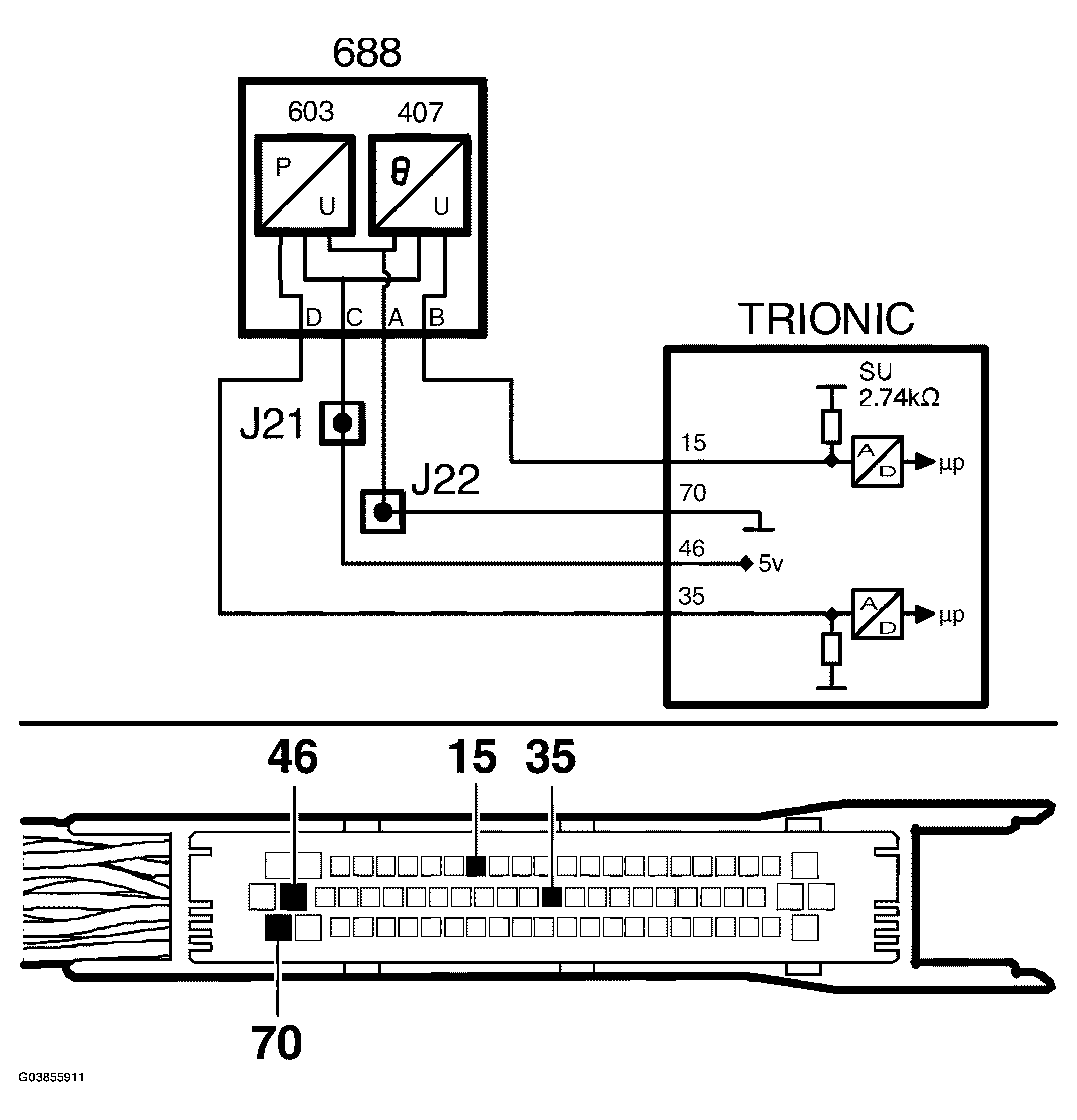

Fig 1: Intake Air Temperature Sensor Circuit - Circuit Diagram (Short To B+/Open Circuit)
G03855911Courtesy of SAAB-SCANIA OF AMERICA, INC.
