P0100: Mass Air Flow Circuit - No Signal: Notes

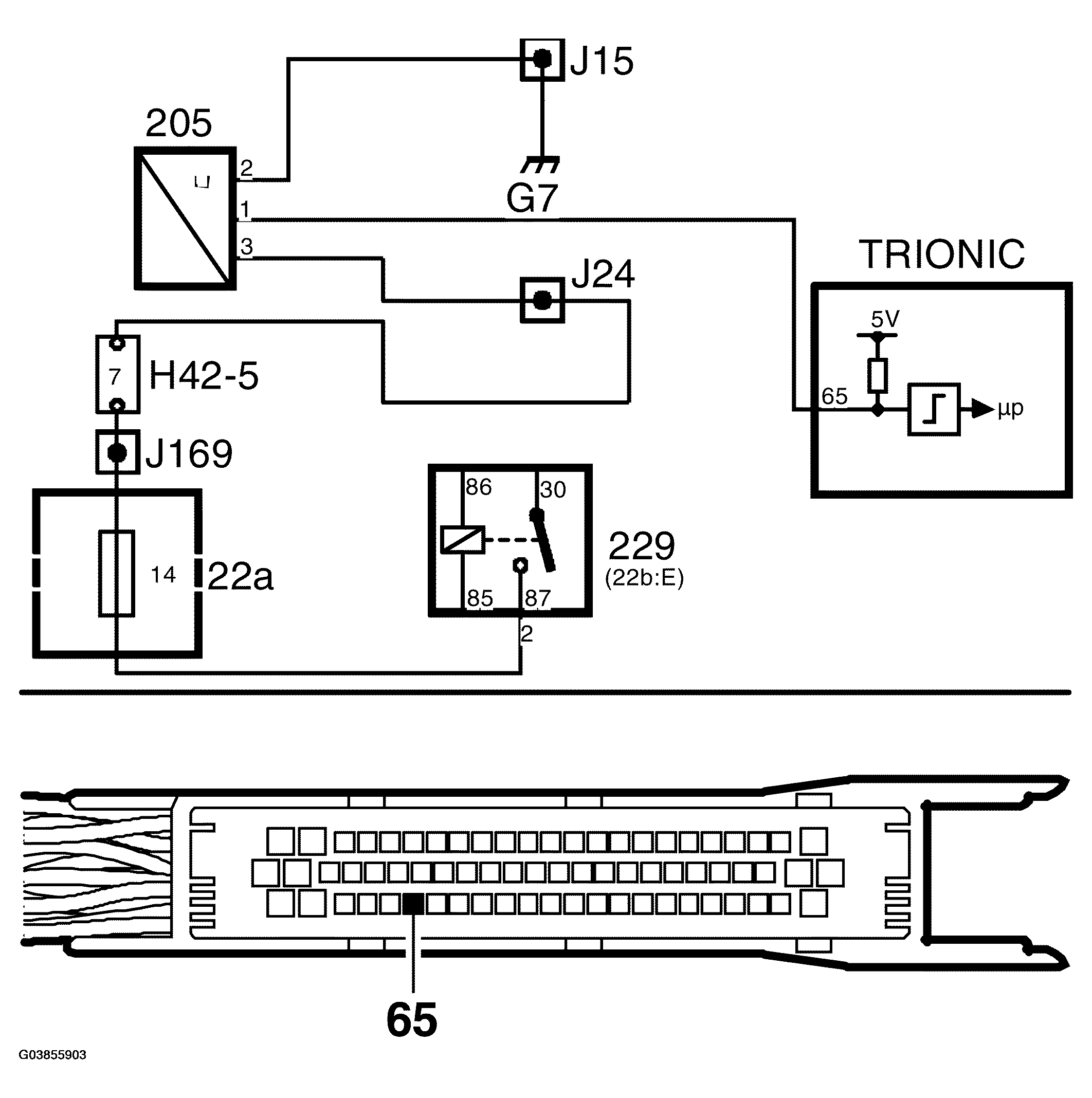

Fig 1: Mass Air Flow Circuit - Circuit Diagram (No Signal)

G03855903

Courtesy of SAAB-SCANIA OF AMERICA, INC.
