Main Fuse Board 22A In Dashboard
Location: On the short side of dashboard beside driver's door.
Upper socket is input current.

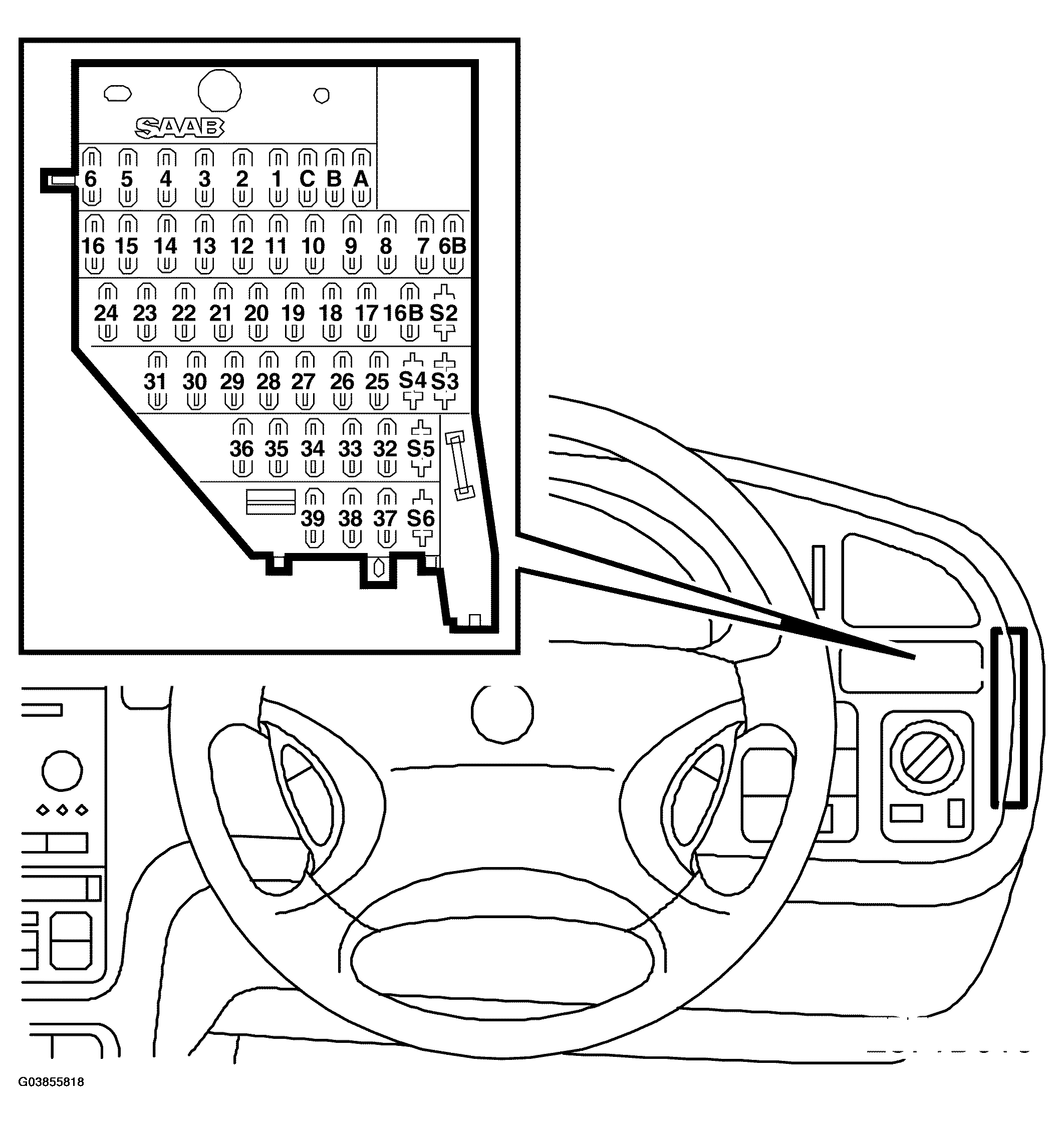

LHD

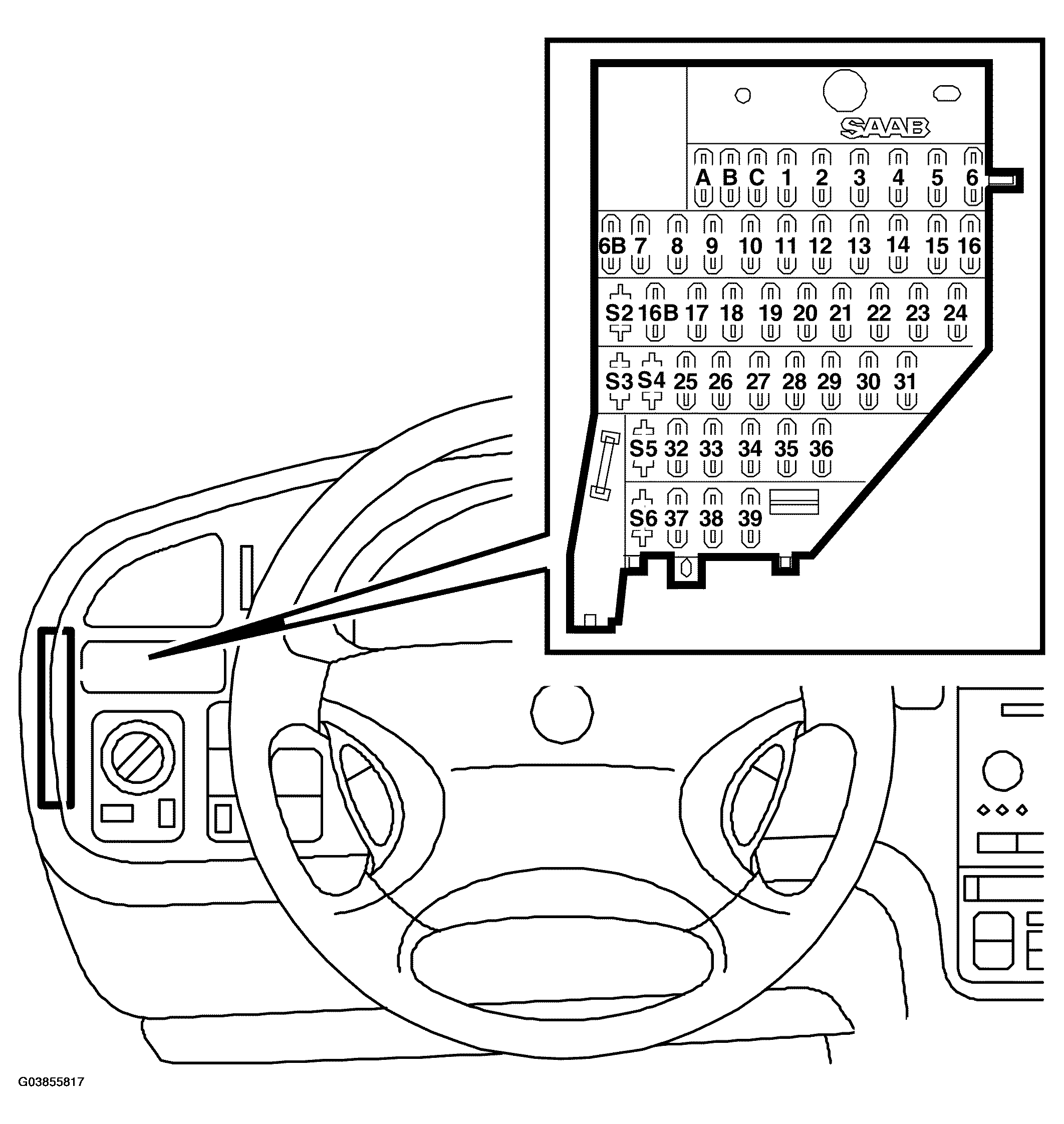

RHD
MAIN FUSE BOARD 22A TERMINALS REFERENCE
| No. | Value | Type | Function |
|---|---|---|---|
| A | 30 A | +30 | Prepared pull installation |
| B | 10 A | +15 | TCM |
| C | 7.5 A | +54 | Electrically adjustable door mirror DICE Manual beam length control |
| 1 | 15 A | +30 | Brake light switch Brake light |
| 2 | 15 A | +54 | Rear light |
| 3 | 10 A | Parking light LH | |
| 4 | 10 A | Parking light RH | |
| 5 | 7.5 A | +B | DICE/TWICE Switch, navigation/telephone |
| 6 | 30 A | +54 | Electric window lifts, right Prepared pull installation |
| 6B | 10 A | Brake light, prepared pull installation | |
| 7 | 10 A | Injection valves, petrol engine Solenoid valve, turbo by-pass Solenoid valve, EVAP shut-off EVAP canister purge valve, evaporative emission canister |
|
| 8 | 15 A | +30 | SID Interior lighting SPA Engine, pump, coolant circulation |
| 9 | 15 A | +30 | Audio System CD changer/connection Diagnostics socket |
| 10 | 15 A | +30 | Heated rear seat Sunroof |
| 11 | 30 A | +30 | Electrically adjustable passenger seat |
| 12 | 7.5 A | +30 | TCM |
| 13 | 20 A | +30 | Amplifier |
| 14 | 30 A | Engine control module DI Mass air flow sensor Solenoid valve, charge air Solenoid valve unit, EGR Ignition power module, injection valves |
|
| 15 | 20 A | Pre-heating oxygen sensor Fuel pump, petrol Heating element, fuel filter, diesel |
|
| 16 | 20 A | +30 | DICE/Direction indicators |
| 16B | 7.5 A | +30 | Road-toll fee, prepared installation OnStar |
| 17 | 20 A | +30 | MIU Trionic DICE/TWICE |
| 18 | 40 A | +30 | Electrically heated rear-view mirrors Electrically heated rear window |
| 19 | 10 A | +15 | Telephone/OnStar |
| 20 | 15 A | +30 | ACC Interior lighting Rear fog light |
| 21 | 10A | +15 | Audio/Navigation system ADM Navigation (accessory) Automatic beam length control Pedal switches, cruise control |
| 22 | 40 A | +30 | Ventilation fan motor |
| 23 | 15 A | +30 | Central locking system Navigation (accessory) PMM |
| 24 | - | ||
| 25 | 30 A | +30 | Electrically adjustable driver's seat |
| 26 | 7.5 A | +15 | SPA Sunroof PSM PMM Seatbelt warning light |
| 27 | 10 A | +15 | Engine control module MIU SID DICE |
| 28 | 7.5 A | +15 | Airbag/SRS |
| 29 | 10 A | +15 | ESP |
| 30 | 7.5 A | +50 | Starter motor |
| 31 | 7.5 A | +54 | Switch, cruise control Solenoid valve, heat exchanger Fog light Rain sensor |
| 32 | 15 A | +54 | Seat ventilation |
| 33 | 7.5 A | +54 | Switch, Direction indicators |
| 34 | 30 A | +54 | Cigarette lighter |
| 35 | 15 A | +54 | Running lights |
| 36 | 30 A | +54 | Electric window lifts, left |
| 37 | 30 A | +54 | Windscreen wipers |
| 38 | 30 A | +54 | Electrically heated seats |
| 39 | 20 A | +30 | Limp-home solenoid Telephone/OnStar |
