Home >> Saab >> 2005 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System, 4-CYL. >> Component Location >> Ignition Discharge Module (346)

Ignition Discharge Module (346)

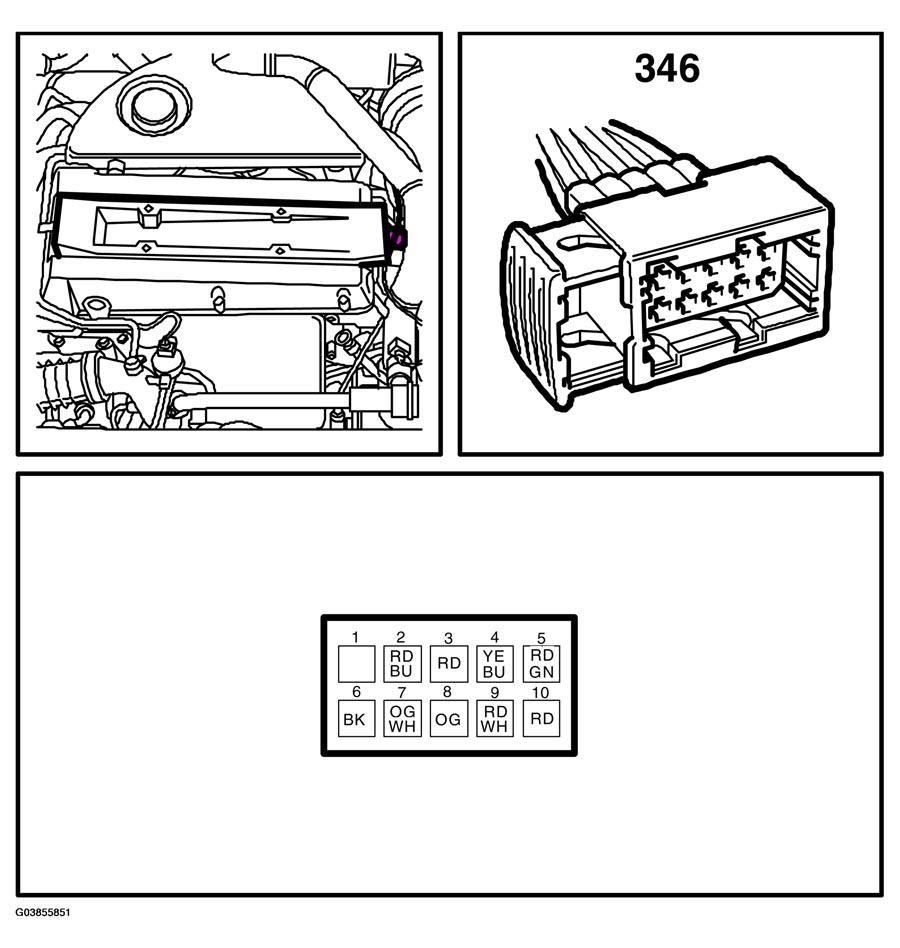

Fig 1: Identifying Ignition Discharge Module Connector And Location

G03855851

Courtesy of SAAB-SCANIA OF AMERICA, INC.
