Home >> Saab >> 2005 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System, 4-CYL. >> Adjustment - Replacement >> Relay, A/C >> To remove

To remove

  1. Remove the lid on the box containing relays and fuses in the engine bay.

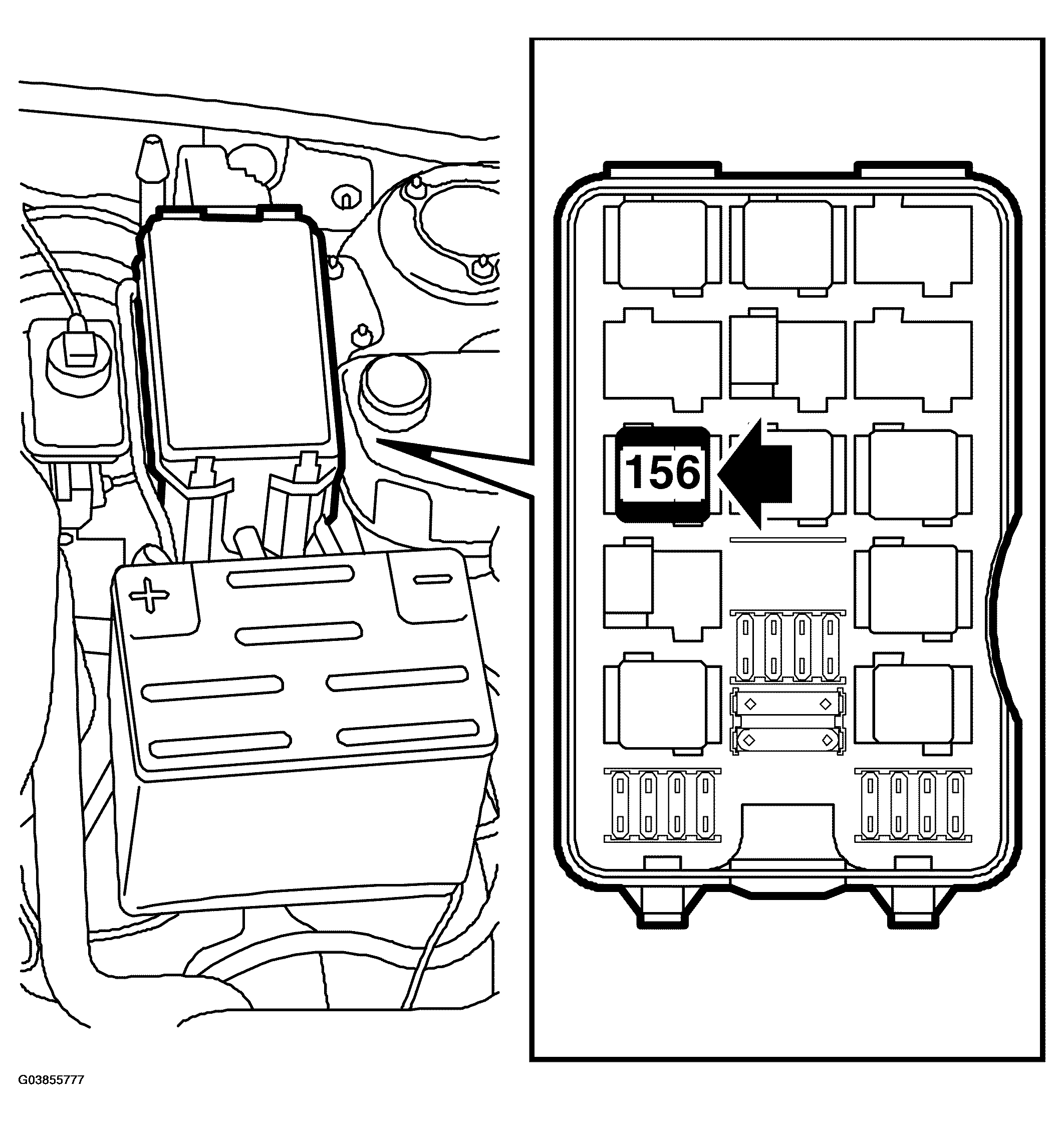

    Fig 1: Removing Relay
    G03855777Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the relay by moving the catch to the side and pulling up the relay.
