Home >> Saab >> 2005 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System, 4-CYL. >> Adjustment - Replacement >> Mass Air Flow Sensor >> To remove

To remove

  1. Unplug the connector.

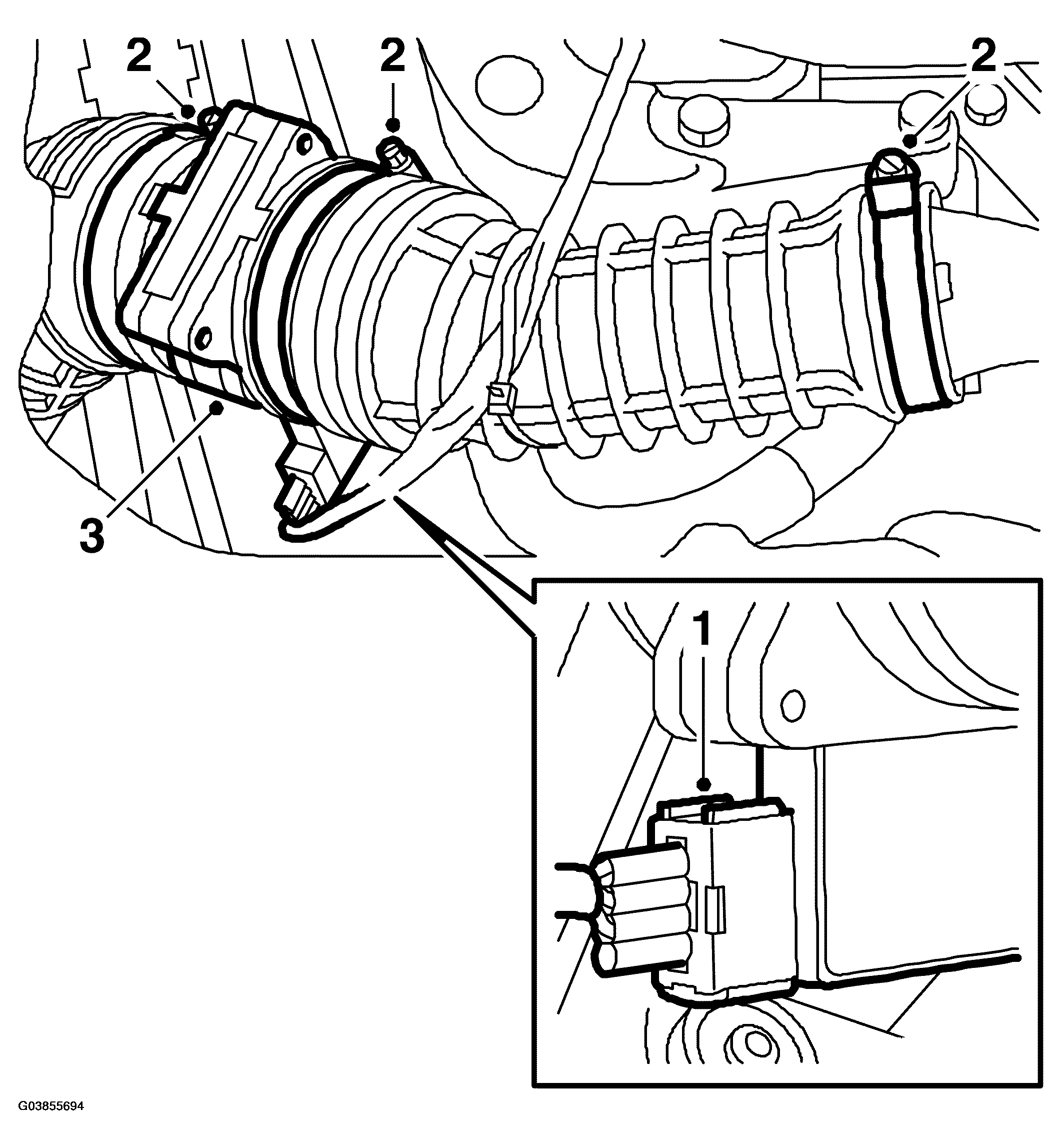

    Fig 1: Illustration For Steps 1-3
    G03855694Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Loosen the hose clips on the connecting hoses.
  3. Remove the mass air flow sensor.
