Home >> Saab >> 2005 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System, 4-CYL. >> Adjustment - Replacement >> Intake Air Temperature Sensor >> To remove

To remove

  1. Remove the rubber cap and unplug the connector.

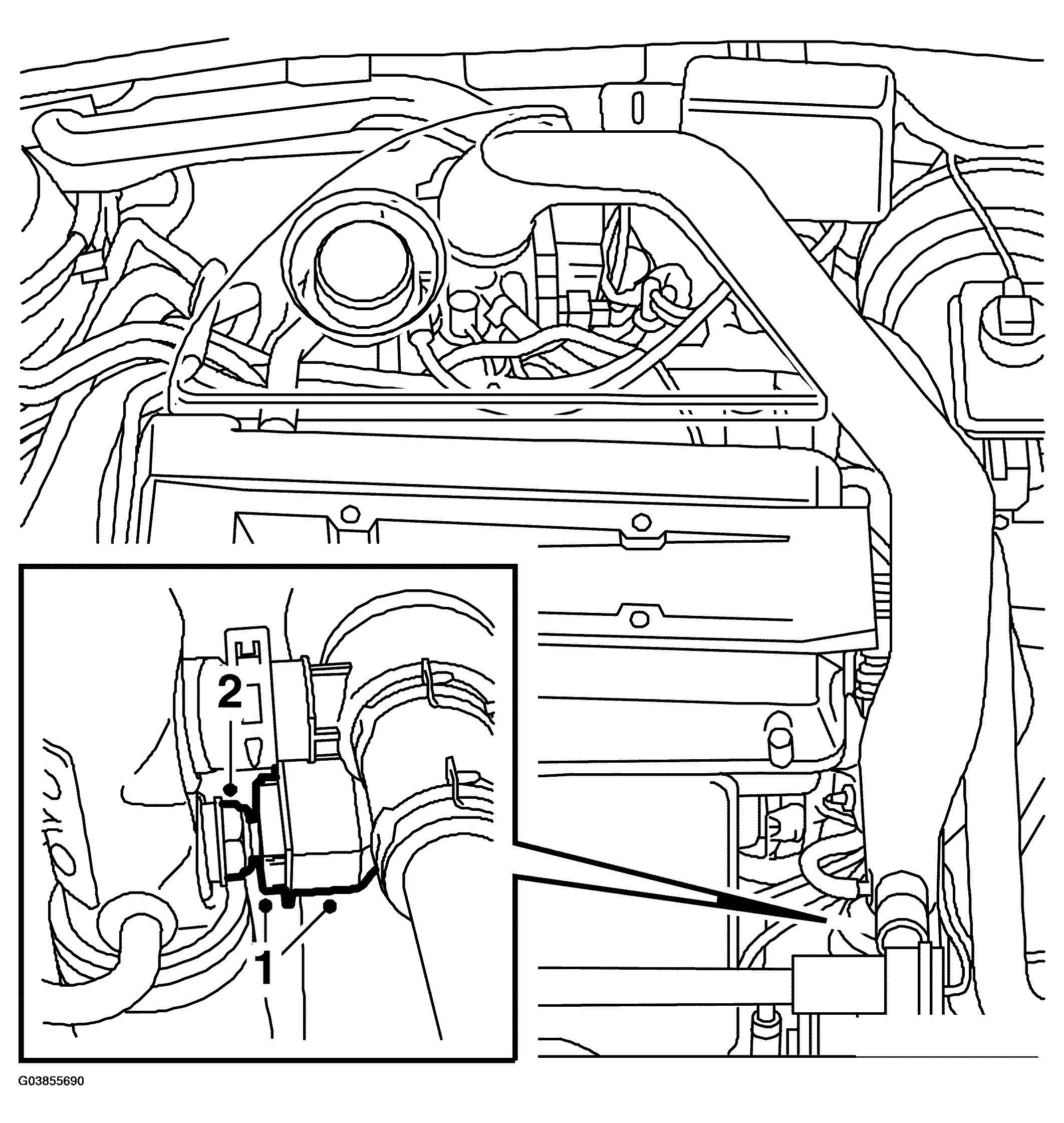

    Fig 1: Illustration For Steps 1-2
    G03855690Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the sensor.
