Home >> Saab >> 2005 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System, 4-CYL. >> Adjustment - Replacement >> Intake Air Temperature Sensor >> To fit

To fit

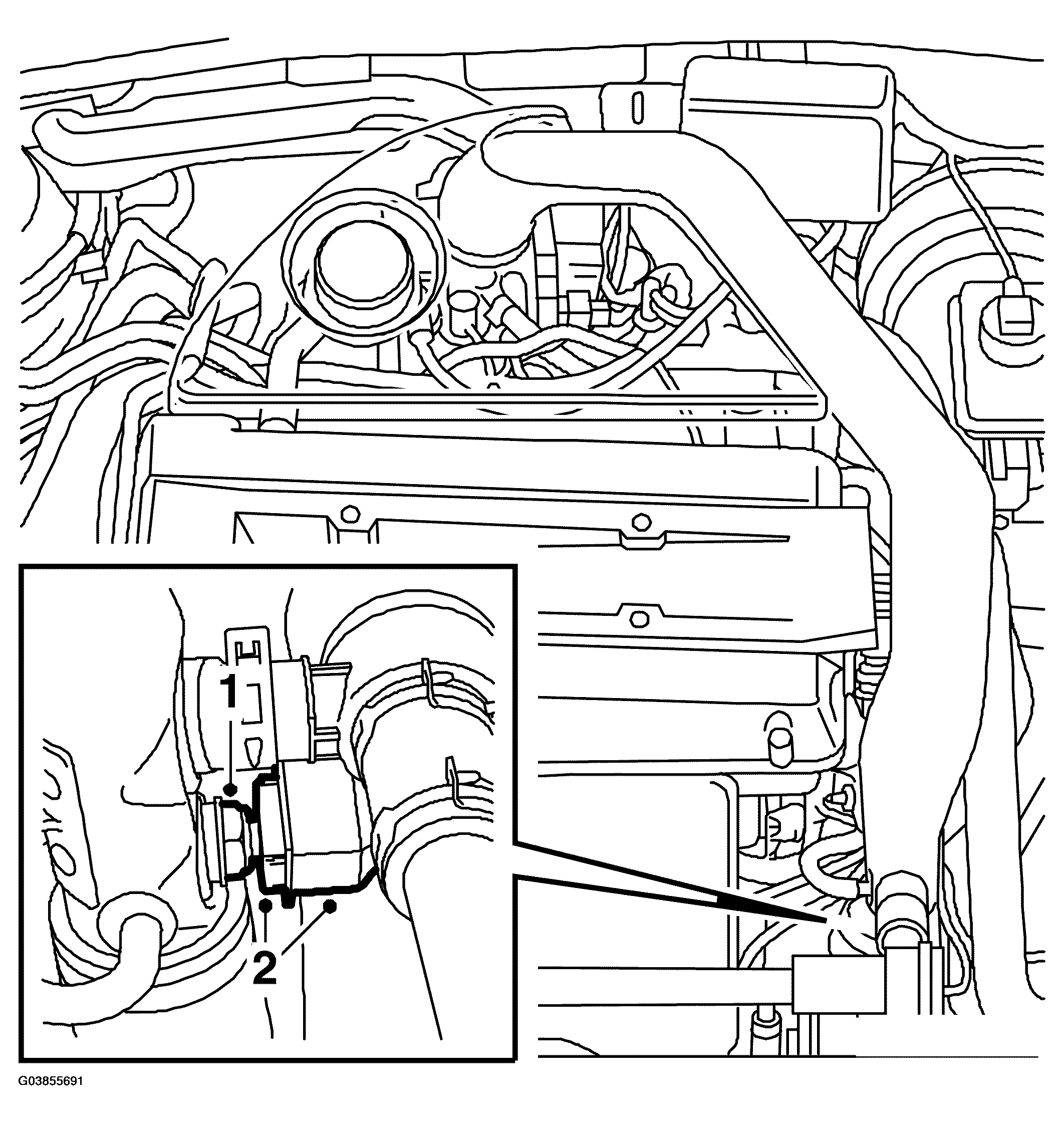

Fig 1: Illustration For Steps 1-2
G03855691Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Check the sealing washer and fit a new one if necessary.

    Apply vaseline (part no. 30 20 271) or equivalent to the sensor threads. Fit the sensor.

    Tightening torque 7 Nm (5 lbf ft)

  2. Spray the connector with Kontakt 61 (part no. 30 04 520). Plug in the connector.
  3. Fit the rubber cap.
