Home >> Saab >> 2005 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System, 4-CYL. >> Adjustment - Replacement >> EVAP Pressure Sensor >> To remove

To remove

  1. Remove the fuel tank. See FUEL TANK .
  2. Blow clean around the pressure sensor.

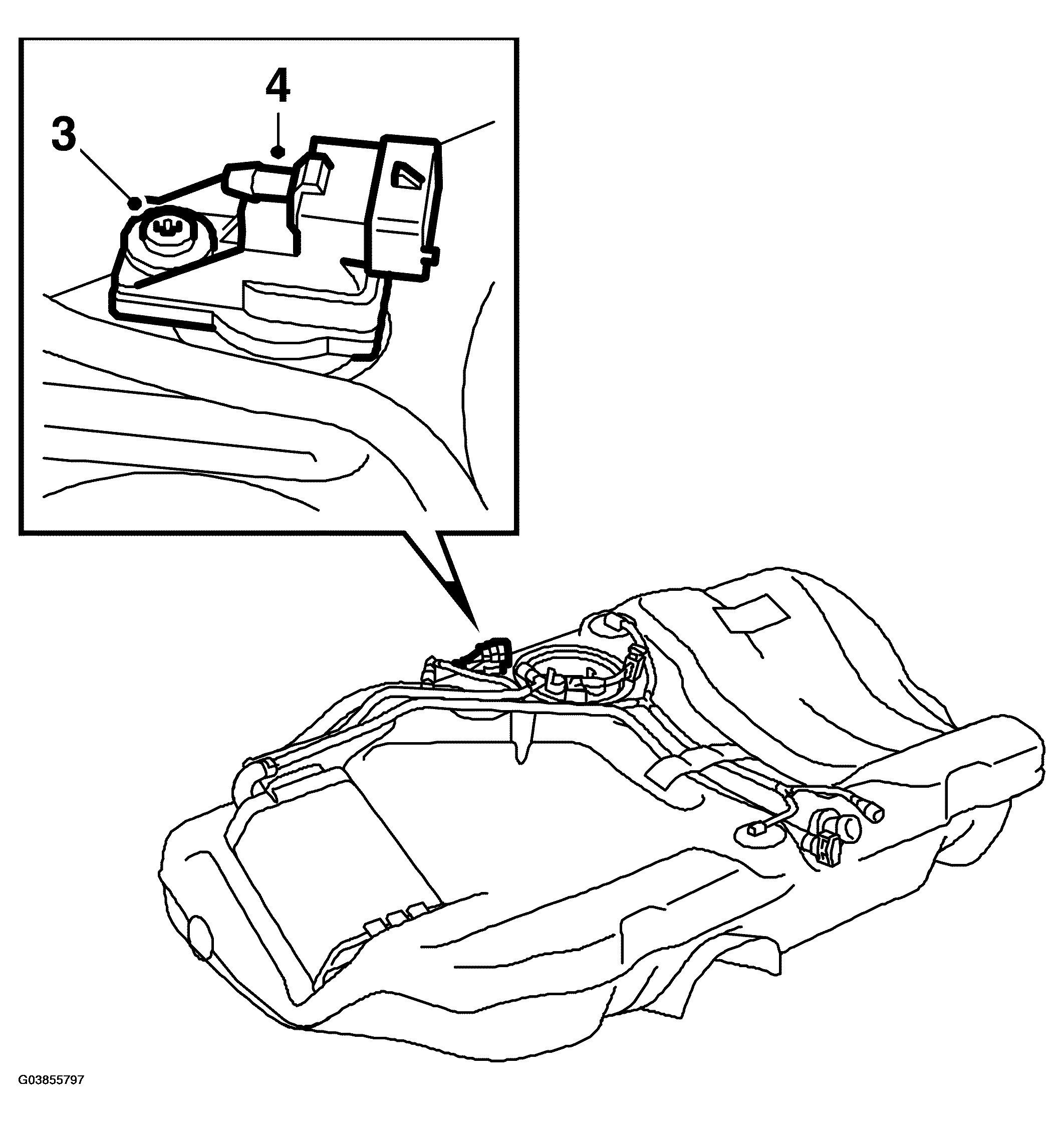

    Fig 1: Illustration For Steps 3-4
    G03855797Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Undo the screw on the pressure sensor.
  4. Carefully remove the pressure sensor.
