To Remove

  1. Undo the exhaust manifold heat shield.

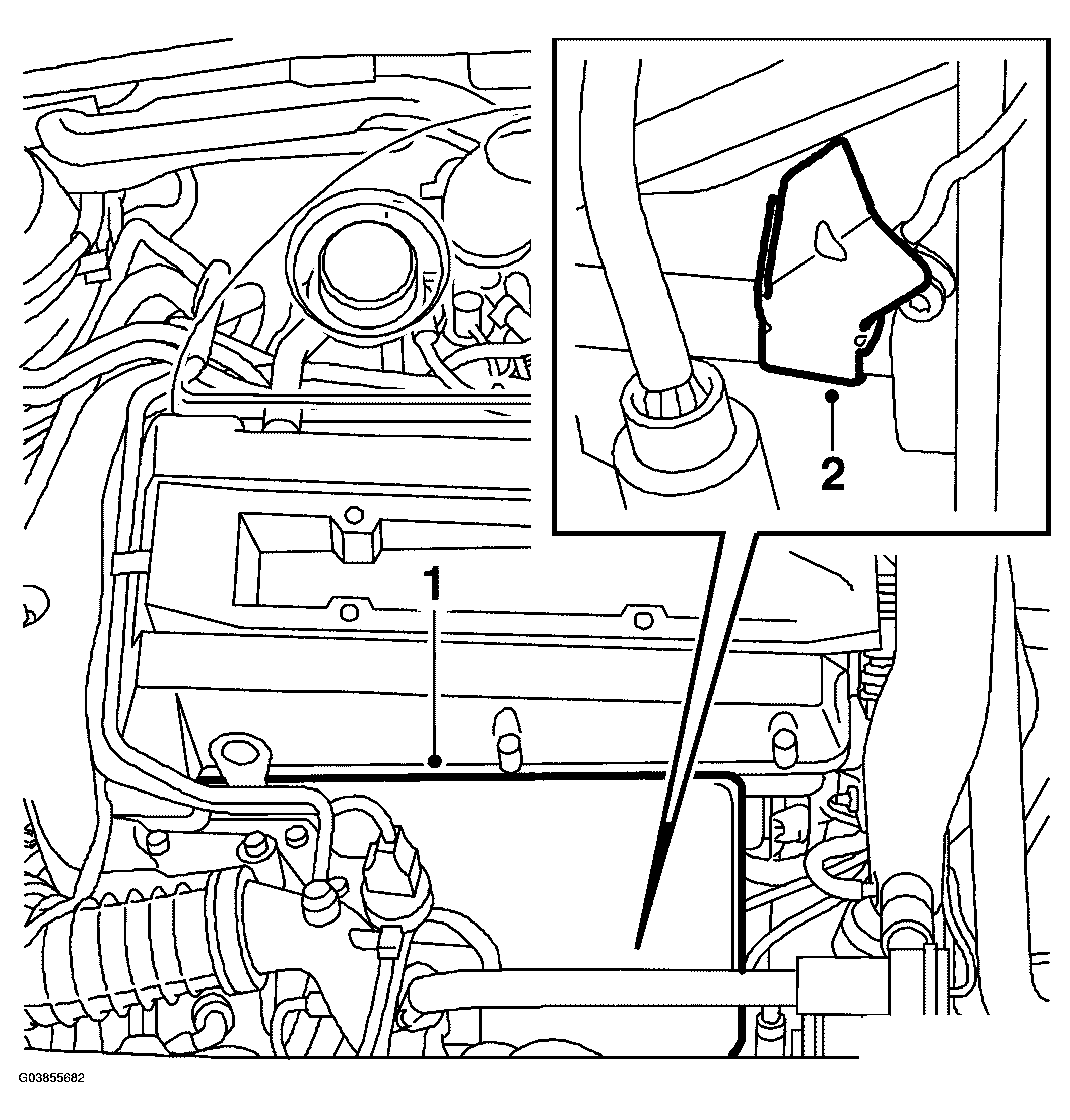

    Fig 1: Illustration For Steps 1-2
    G03855682Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Undo the screw securing the heat shield and sensor.
  3. Detach the sensor and O-ring.

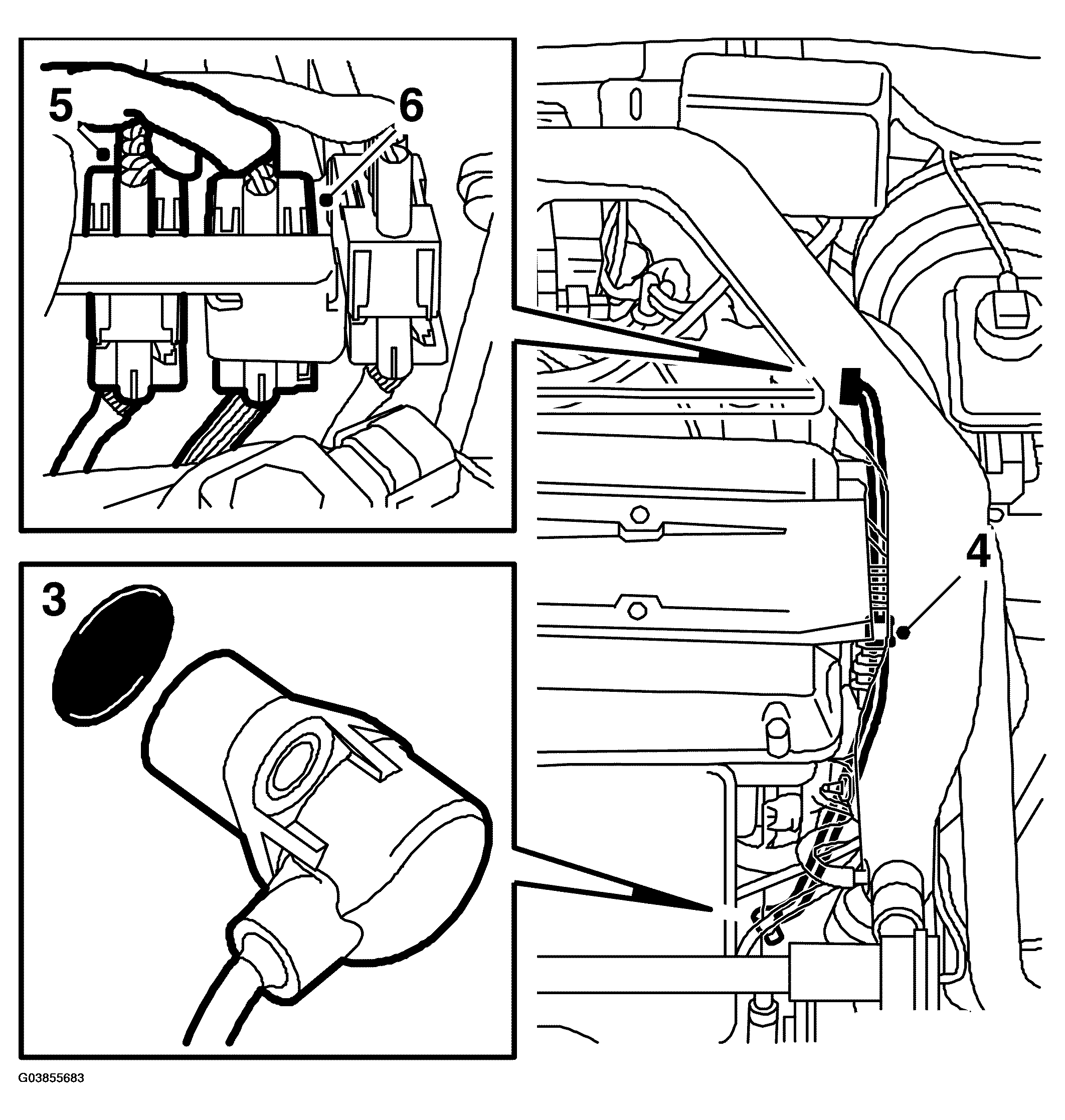

    Fig 2: Illustration For Steps 3-6
    G03855683Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Follow the sensor connecting cable and undo the clip on the water pipe.
  5. Detach the connector from the holder.
  6. Unplug the connector.
  7. Change the sensor.
