Adjusting The Accelerator Pedal Cable.

  1. Remove the engine cover.

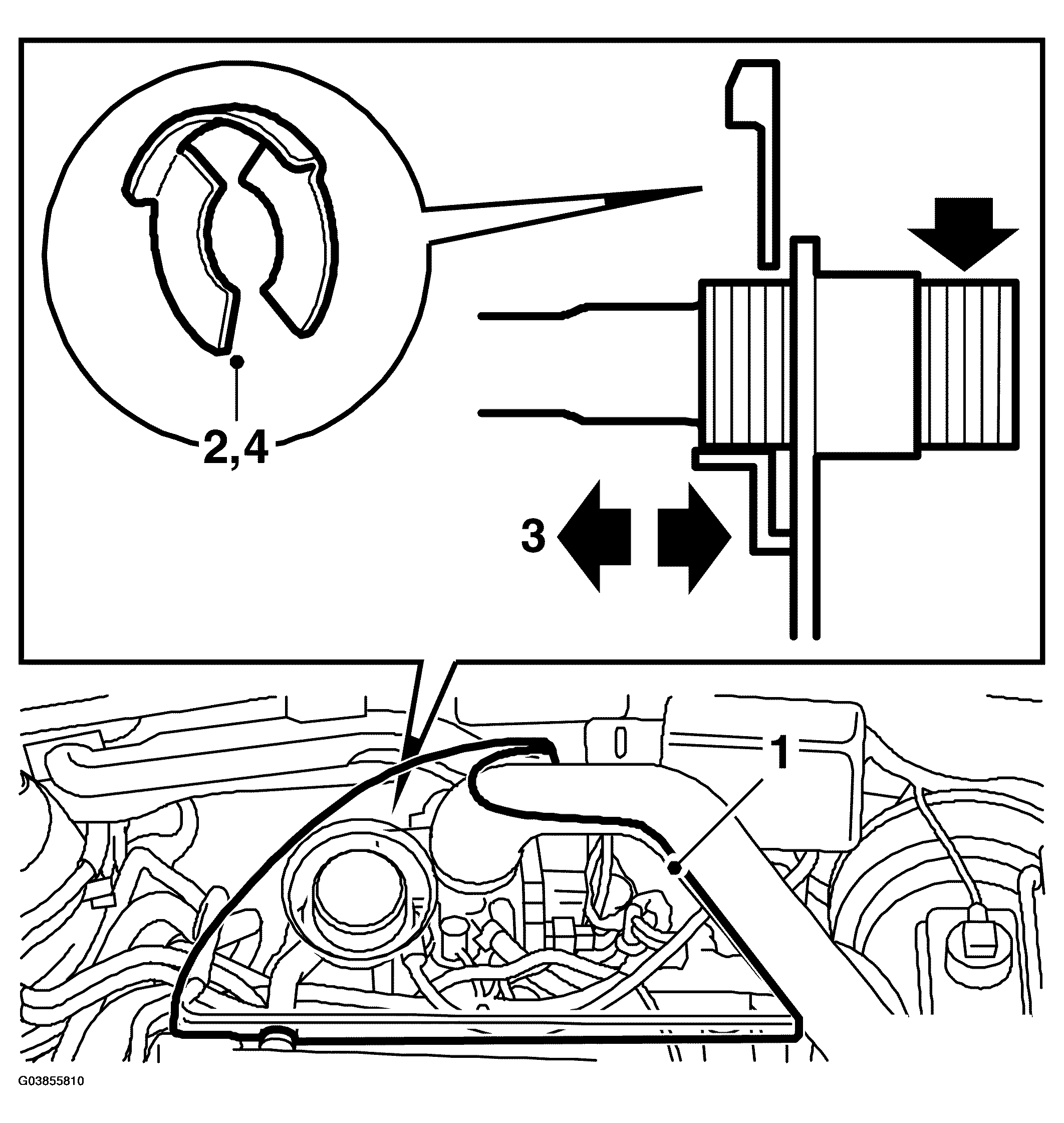

    Fig 1: Illustration For Steps 1-4
    G03855810Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Undo the cable adjuster clip.
  3. Adjust the free play in the cable by holding the pedal arm in the fully spring-loaded return position with one hand while moving the cable towards a taut position with the other hand. Then, slacken it to the nearest groove on the sleeve.
  4. Fit the clip.
