To remove

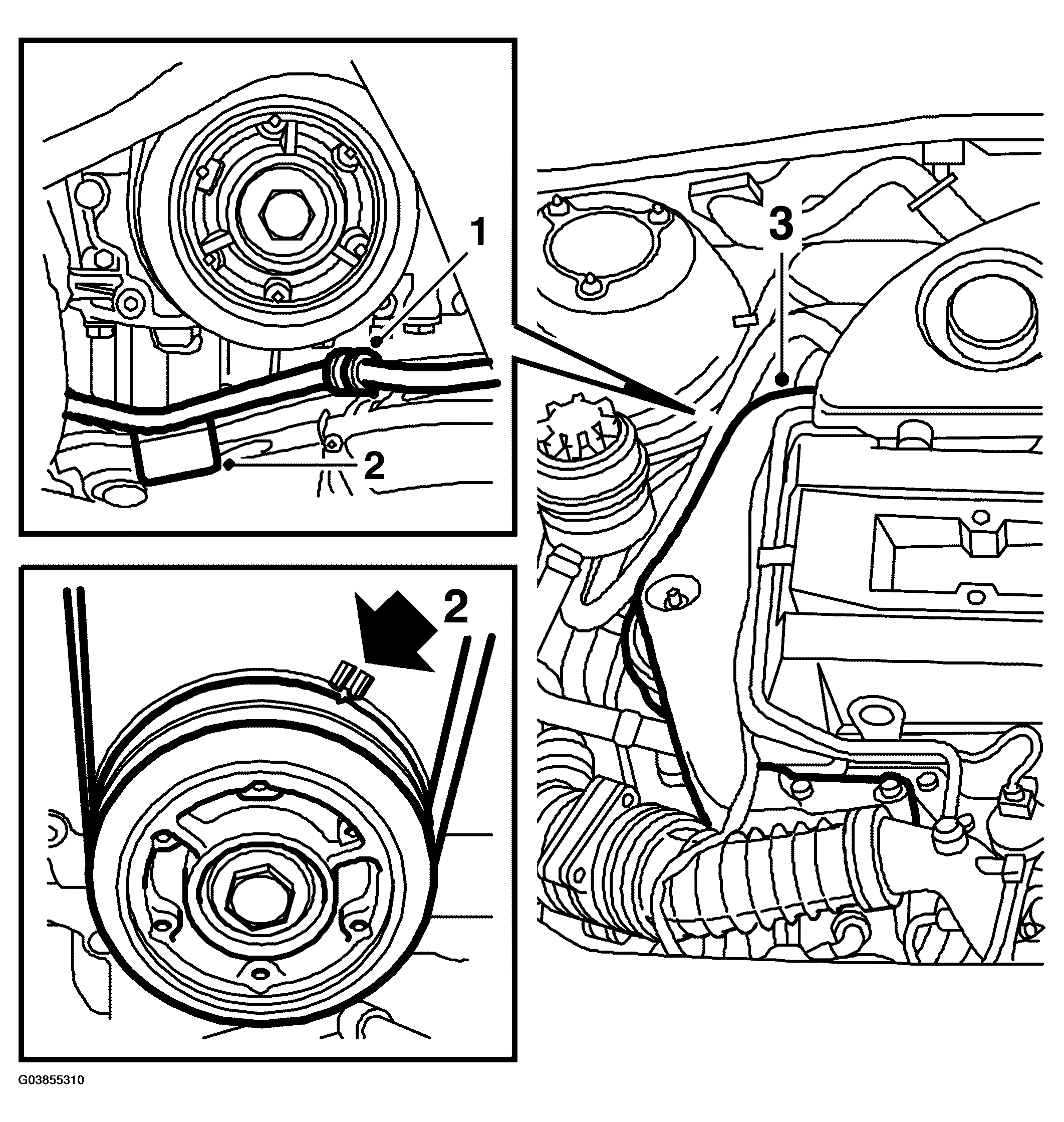

Fig 1: Illustration For Steps 1-3
G03855310Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Raise the car, turn the right-hand front wheel outwards and disconnect the power steering pump pipe from the subframe.
  2. Turn the crankshaft pulley round to the 0 mark and drive A WEDGE  83 95 238 between the oil sump and subframe.
  3. Remove the right-hand engine mounting with yoke.

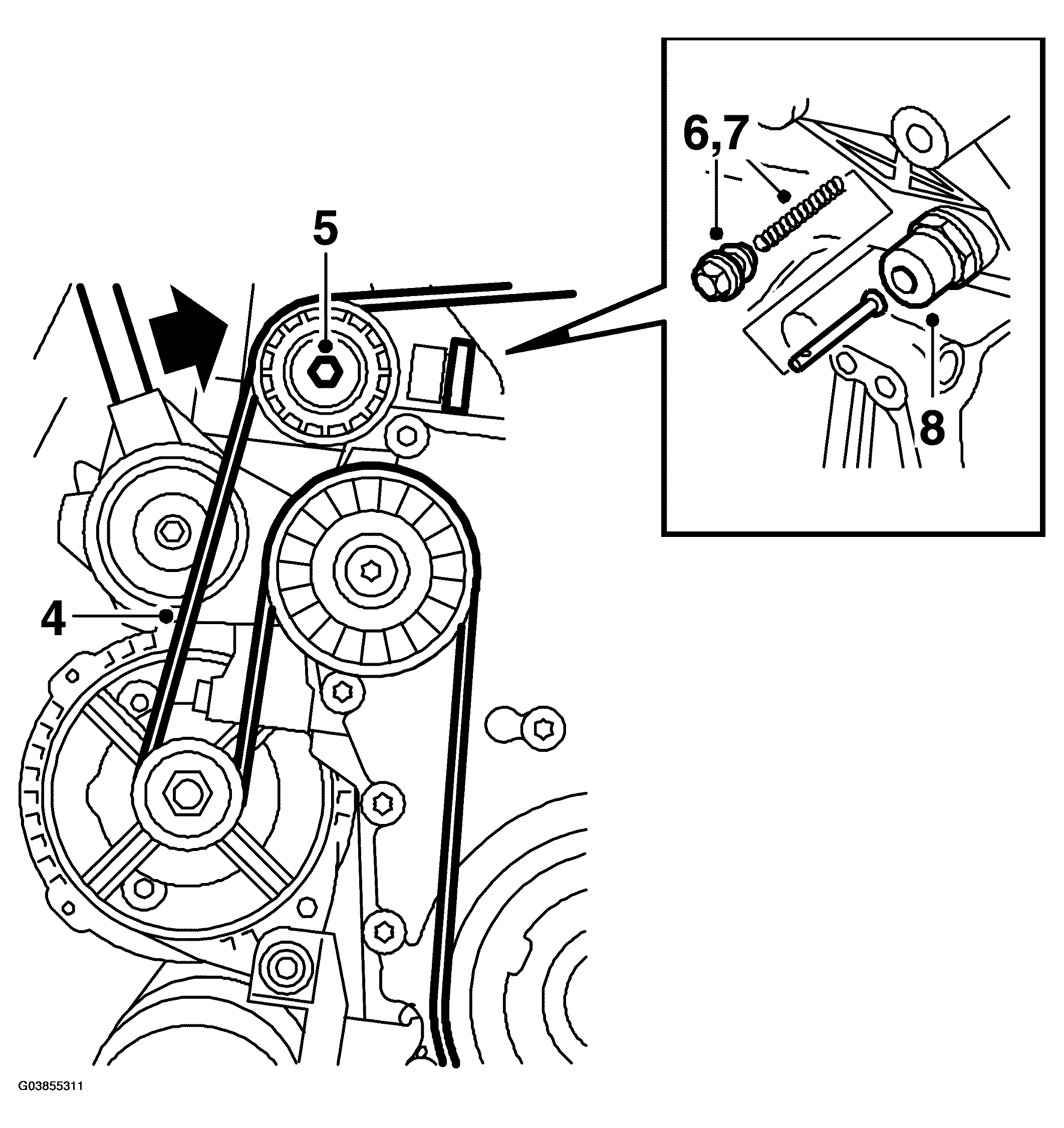

    Fig 2: Illustration For Steps 4-7
    G03855311Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Take the strain off the belt tensioner with BELT TENSIONER RELIEVER  83 95 254 and insert a 3 mm Allen key in the hole.
    IMPORTANT: Exercise the utmost care to ensure that the belt tensioner does not break at its end position!
  5. Unscrew the idler pulley's retaining bolt slightly.
  6. Remove the plug.
  7. Extract the locating pin and spring.
  8. Remove the chain tensioner, using a 27 mm socket.
