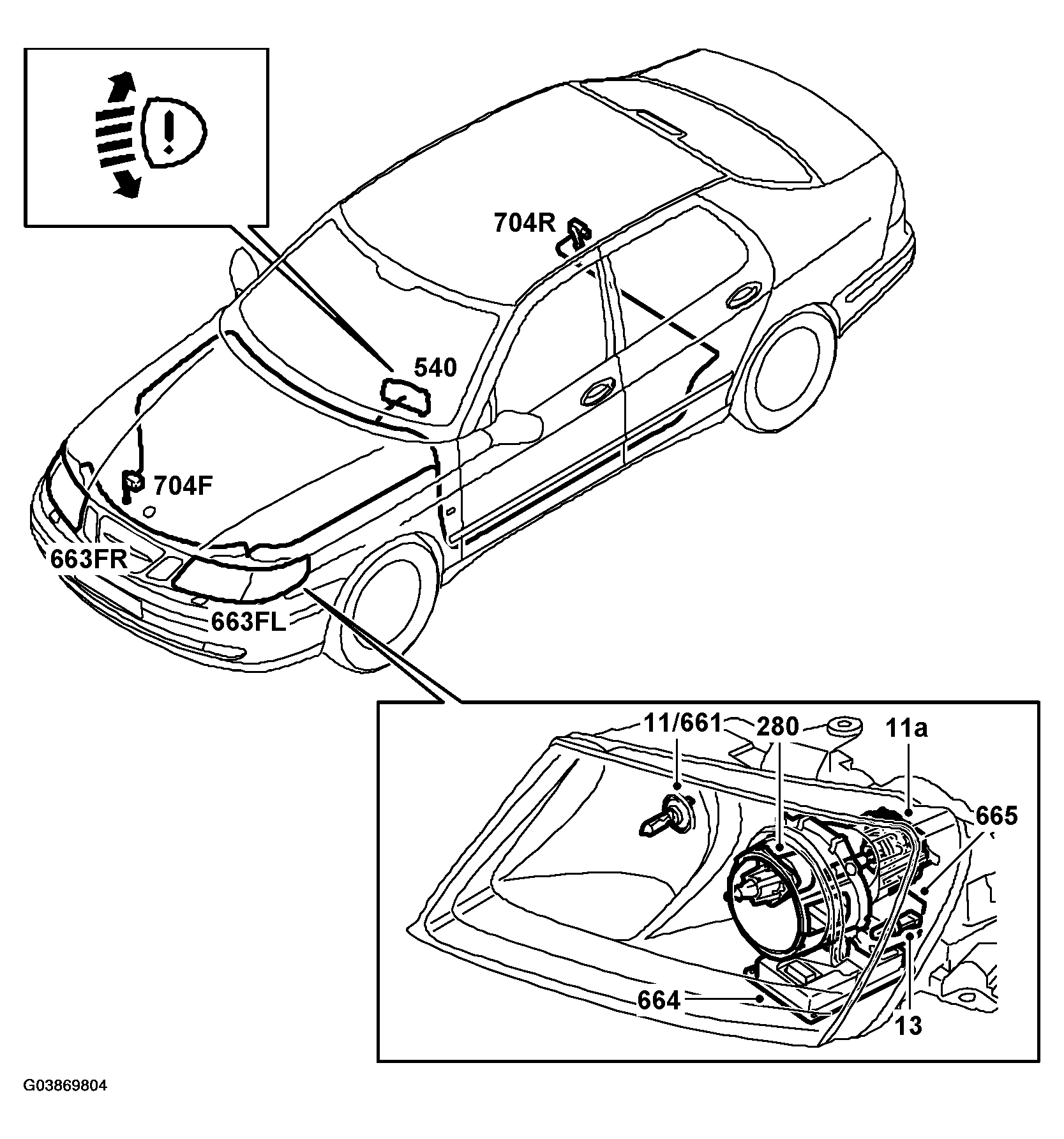

System Overview, Exterior Xenon Lighting
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Main beam lamp, LH (11FL), not US/CA/JP
- Main beam lamp, RH (11FR), not US/CA/JP
- Xenon lamp, LH (11aFL)
- Xenon lamp, RH (11aFR)
- Lamp, headlamp flasher, LH (661FL), US/CA/JP only
- Lamp, headlamp flasher, RH (661FR), US/CA/JP only
- Parking light bulb, LH (13FL)
- Parking light bulb, RH (13FR)
- Motor, headlamp levelling, LH (280FL)
- Motor, headlamp levelling, RH (280FR)
- Indicator lamp, xenon light system, in main instrument unit (540)
- Headlamp, xenon, LH (663FL)
- Headlamp, xenon, RH (663FR)
- Control module, headlamp/AHL, left (682FL)
- Control module, headlamp/AHL, right (682FR)
- Solenoid, xenon lamp shutter, LH (665FL)
- Solenoid, xenon lamp shutter, RH (665FR)
- Load angle sensor, front (704F)
- Load angle sensor, rear (704R)
