Main Components, Interior Lighting 4D

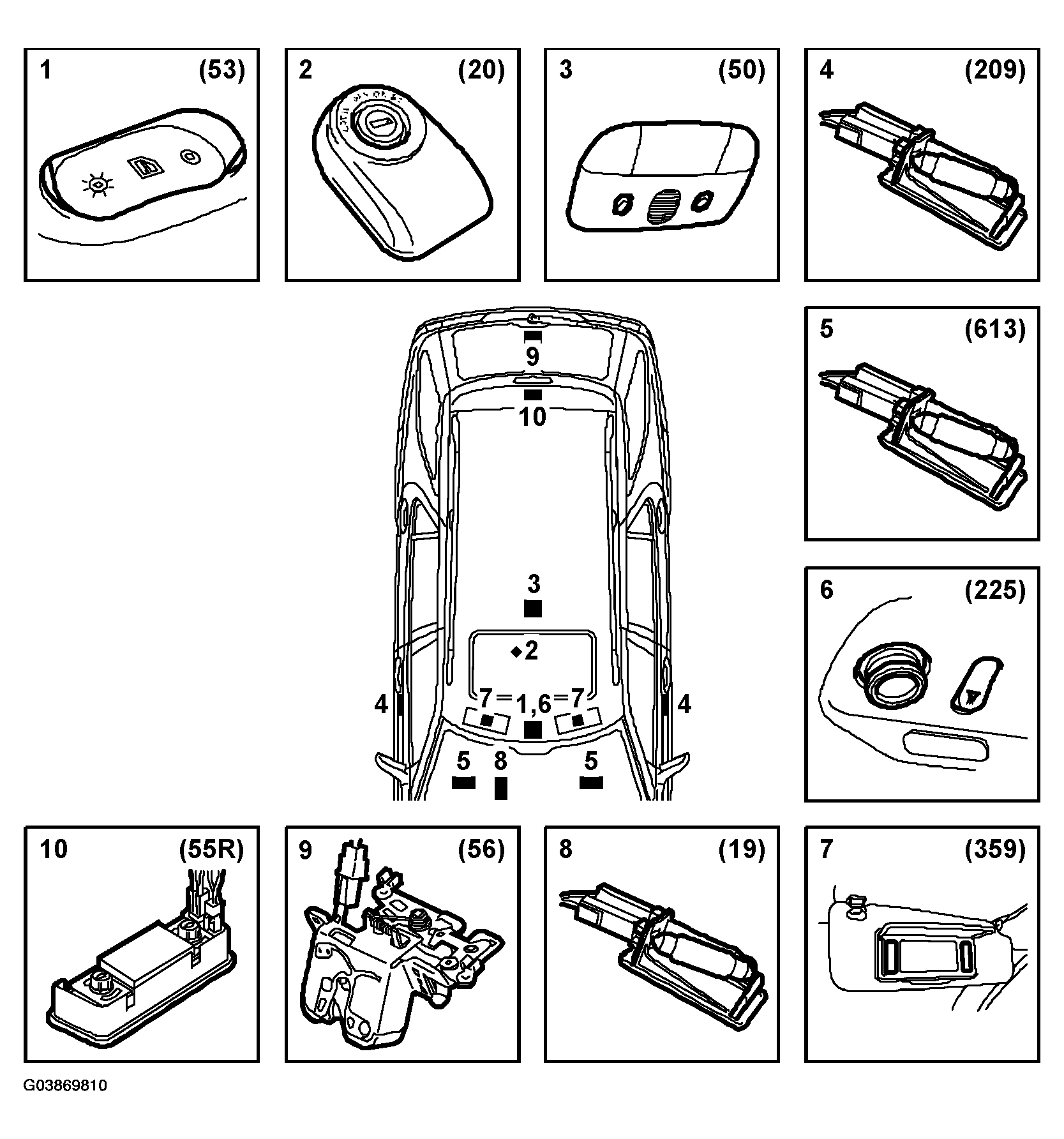

Fig 1: Identifying Main Components And Location - Interior Lighting 4D
G03869810Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Interior lighting switch (53)
  2. Ignition switch (20)
  3. Centre roof lamp (50)
  4. Courtesy lights (209)
  5. Front floor lighting (613)
  6. Reading light (225)
  7. Vanity mirror lighting (359)
  8. Glove box light (19)
  9. Luggage compartment light switch (56)
  10. Luggage compartment lighting (55)
