Main Components, Exterior Xenon Lighting

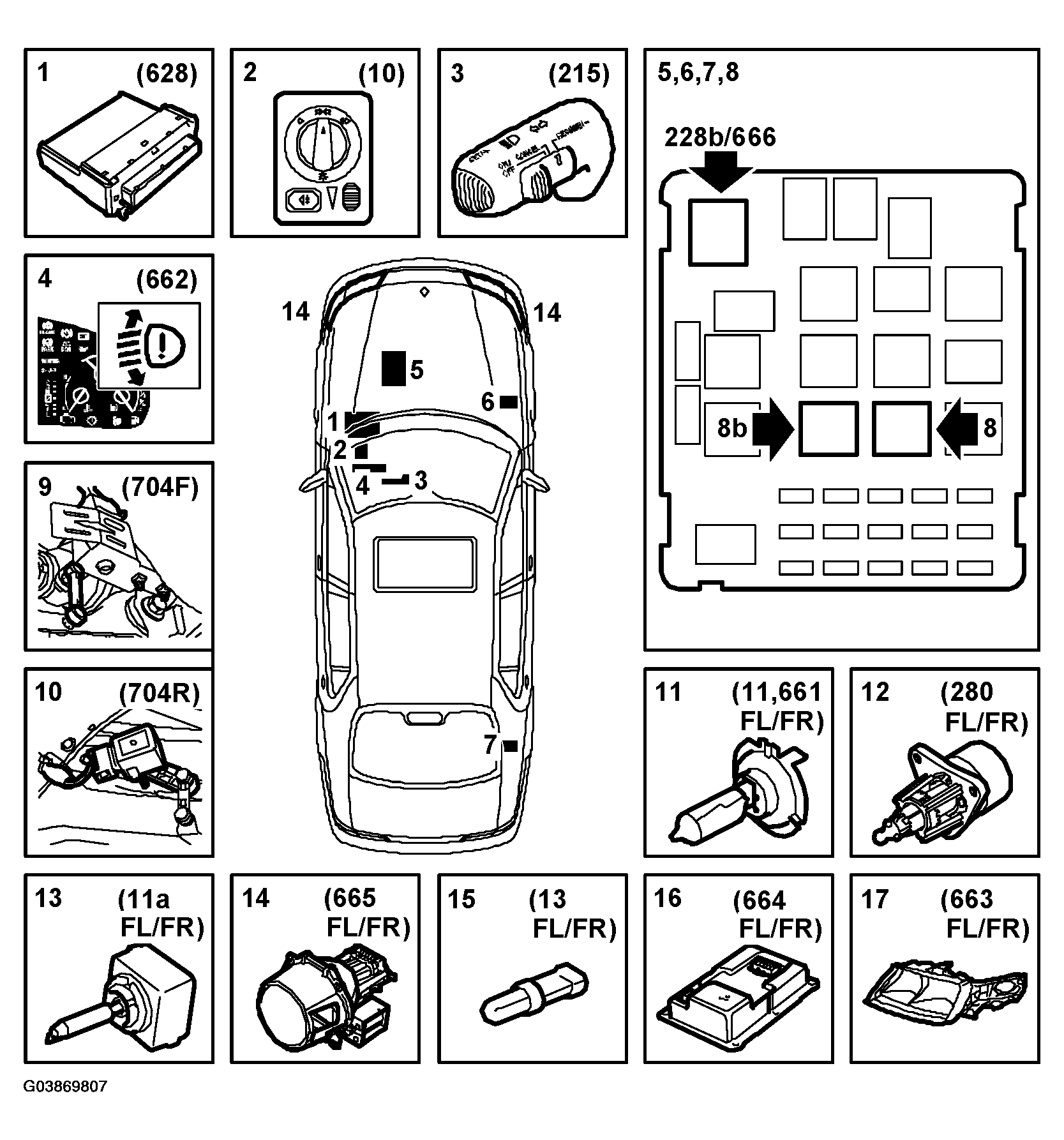

Fig 1: Identifying Main Components And Location - Exterior Xenon Lighting

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Control module, DICE (628)
2. Light switch (10)
3. Dipswitch (215)
4. Indicator lamp, xenon light system (662)
5. Filament monitor, headlamps (228b)
6. Main beam flasher relay (666)
7. Main beam relay (8a)
8. Dipped beam relay (8)
9. Load angle sensor, front (704F)
10. Load angle sensor, rear (704R)
11. Main beam lamp (11), Halogen lamp, headlamp flasher (661)
12. Motor, headlamp levelling (280)
13. Discharge lamp, xenon headlamp (11a)
14. Main beam/dipped beam solenoid (665)
15. Parking light bulb (13)
16. Control module, headlamp/AHL (682)
17. Xenon headlamp (663FL/FR)
