Relay Box

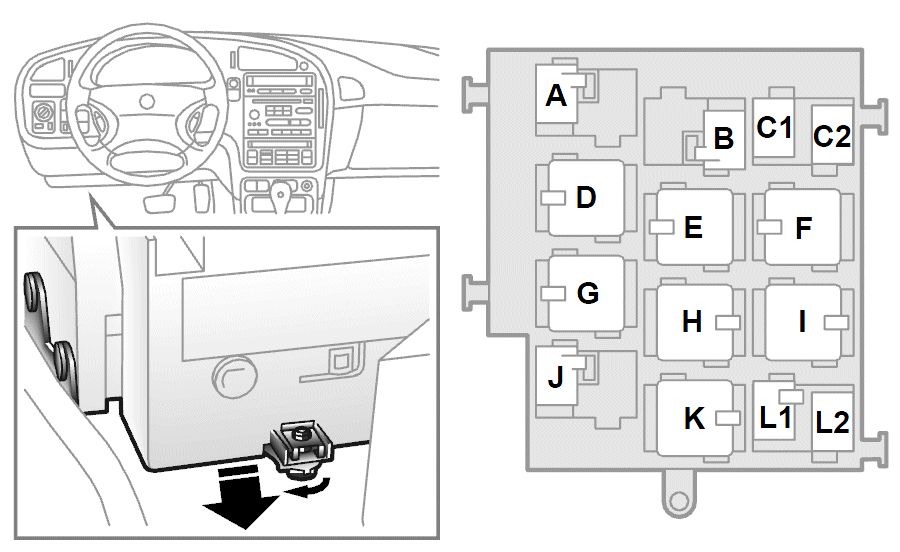

Passenger compartment relay box is located under the left-hand side of the dash.
Passenger Compartment Relay Box
| Relay | Function |
|---|---|
| A | - |
| B | Electric Heating Of Rear Seat |
| C1 | - |
| C2 | - |
| D | - |
| E | Main Relay (Engine Management System) |
| F | - |
| G | Fuel Pump |
| H | Ignition Switch |
| I | Rear-window / Door Mirrors Heating |
| J | - |
| K | Starter Relay |
| L1 | Limp-Home Function |
| L2 | Trunklid |
