Fuse Box

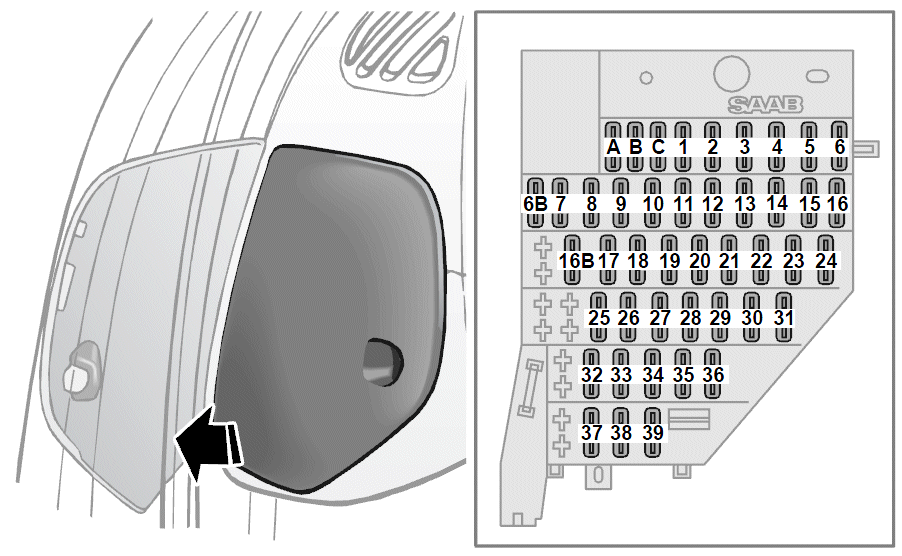

Passenger compartment fuse box is located behind a hatch on the left-hand end of the dash.
Passenger Compartment Fuse Box
| Fuse No. | Amps | Fuse Function |
|---|---|---|
| A | 30A | Trailer Lights |
| B | 10A | Automatic Transmission |
| C | 7.5A | Electric Door Mirrors; Dice: Manual Beam Length Adjustment |
| 1 | 15A | Brake Lights |
| 2 | 15A | Reversing Lights |
| 3 | 10A | Parking Lights And Taillights, Left |
| 4 | 10A | Parking Lights And Taillights, Right |
| 5 | 7.5A | DICE / TWICE |
| 6 | 30A | Electric Windows, Right; Trailer Charging |
| 6B | 7.5A | Brake Lights, Trailer |
| 7 | 10A | Engine Injectors |
| 8 | 15A | Trunk Lighting; Trunk Lock; Door Lighting, Circulation Pump; Parking Assistant; SID |
| 9 | 15A | Audio System; CD Changer |
| 10 | 15A | Heating, Rear Seat; Sunroof, Remote Control Receiver |
| 11 | 30A | Electrically Adjusted Passenger Seat |
| 12 | 7.5A | Automatic Transmission |
| 13 | 20A | Audio System, Amplifier |
| 14 | 30A | Ignition System, Engine |
| 15 | 20A | Fuel Pump |
| 16 | 20A | DICE (Direction Indicators) |
| 16B | - | OnStar (If Equipped) |
| 17 | 20A | Engine-Management System; Main Instrument; DICE/TWICE |
| 18 | 40A | Door-Mirror Heating; Rear-Window Heating |
| 19 | 10A | OnStar; Telematics (If Equipped) |
| 20 | 15A | ACC; Interior Lighting; Rear Fog Light; High Beam Flasher |
| 21 | 10A | Audio System; Rear-view Mirror; Load Angle Sensor (Cars With Xenon); Navigation (Accessory); Cruise Control |
| 22 | 40A | Interior Fan |
| 23 | 15A | Central Locking; Navigation (Accessory); Door Mirror Memory |
| 24 | - | - |
| 25 | 30A | Electrically Adjustable Driver's Seat |
| 26 | 7.5A | Driver Seat Memory; Mirrors Memory; Sunroof; Parking Assistant; Seat-Belt Reminder |
| 27 | 10A | Engine-Management System; SID; Main Instrument |
| 28 | 7.5A | Airbag |
| 29 | 7.5A | ABS/ESP |
| 30 | 7.5A | Starter Motor |
| 31 | 7.5A | Cruise Control; Water Valve; Fog Lights, Front; Rain Sensor |
| 32 | 15A | Ventilated Front Seats |
| 33 | 7.5A | Direction-Indicator Switch |
| 34 | 30A | 12-Volt Socket (Cigarette Lighter) Front/Rear |
| 35 | 15A | Daytime Running Light |
| 36 | 30A | Electric Windows, Left |
| 37 | 30A | Windshield Wipers |
| 38 | 30A | Electric Heating, Front Seats |
| 39 | 20A | Limp-Home Solenoid; OnStar (If Equipped) |
