ESP regulation and brake application: Regulation: Notes

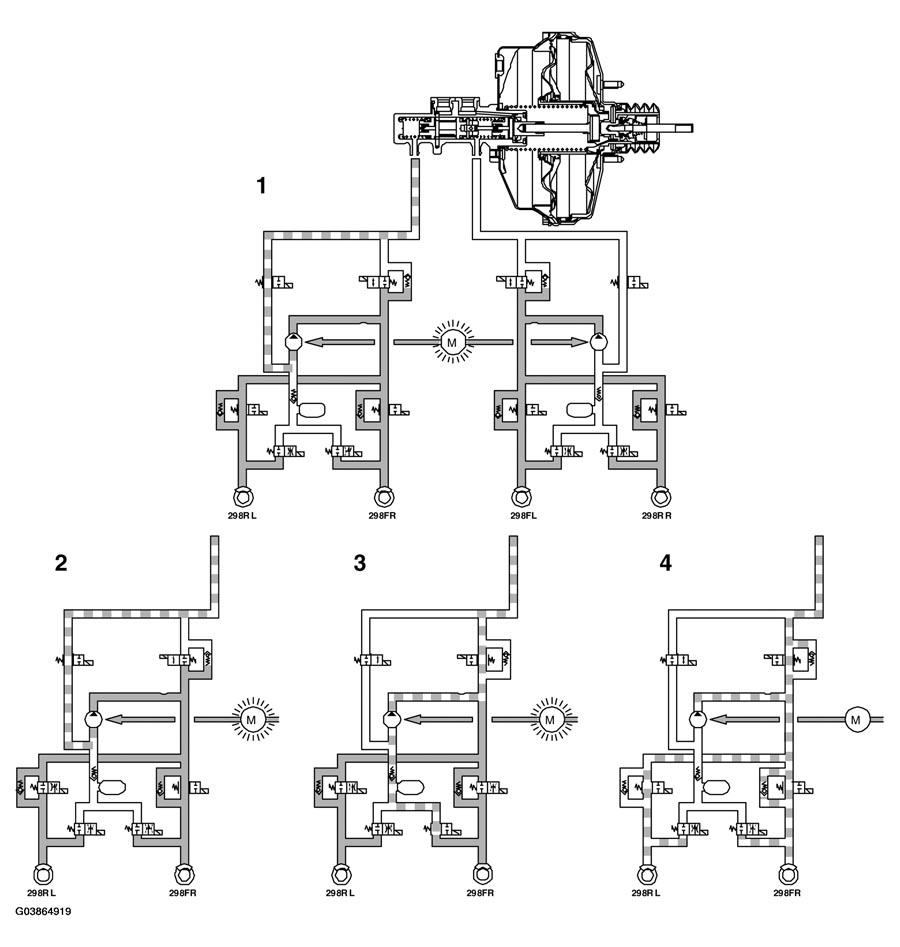

Fig 1: Flow Diagram - ESP Regulation And Brake Application (2 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Dark = pressure
• White = no pressure
• Dashed = change of pressure
