Steering wheel angel sensor

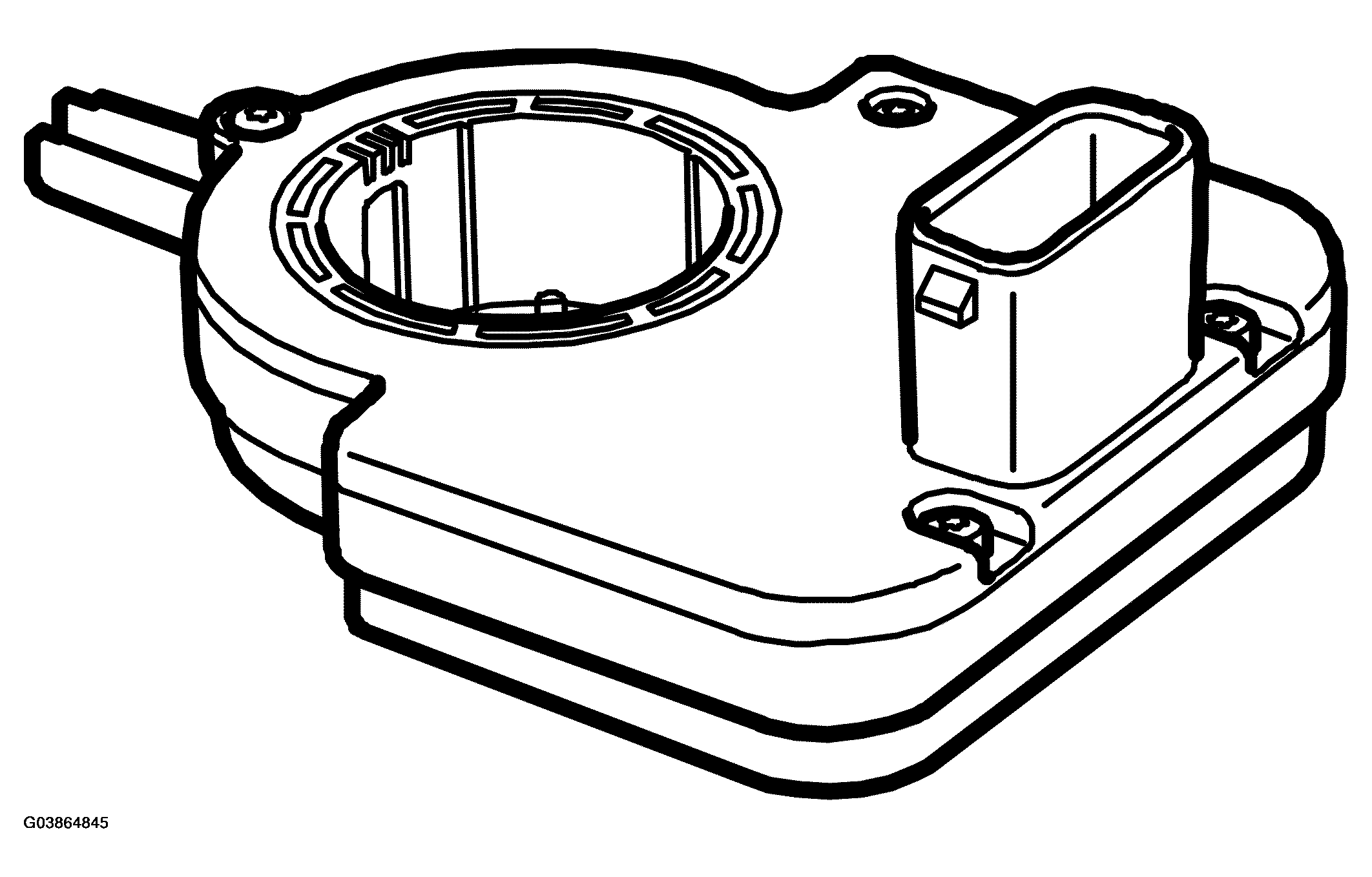

Fig 1: Identifying Steering Wheel Angel Sensor
G03864845Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - STEERING WHEEL ANGLE SENSOR

Test range +/-530° used by sensor. Equivalent to 2.9 turns of the steering wheel.
Tolerance from 0- point +/-5°
