DTC C1386: Wheel Sensor Rear Right Signal Incorrect: Notes

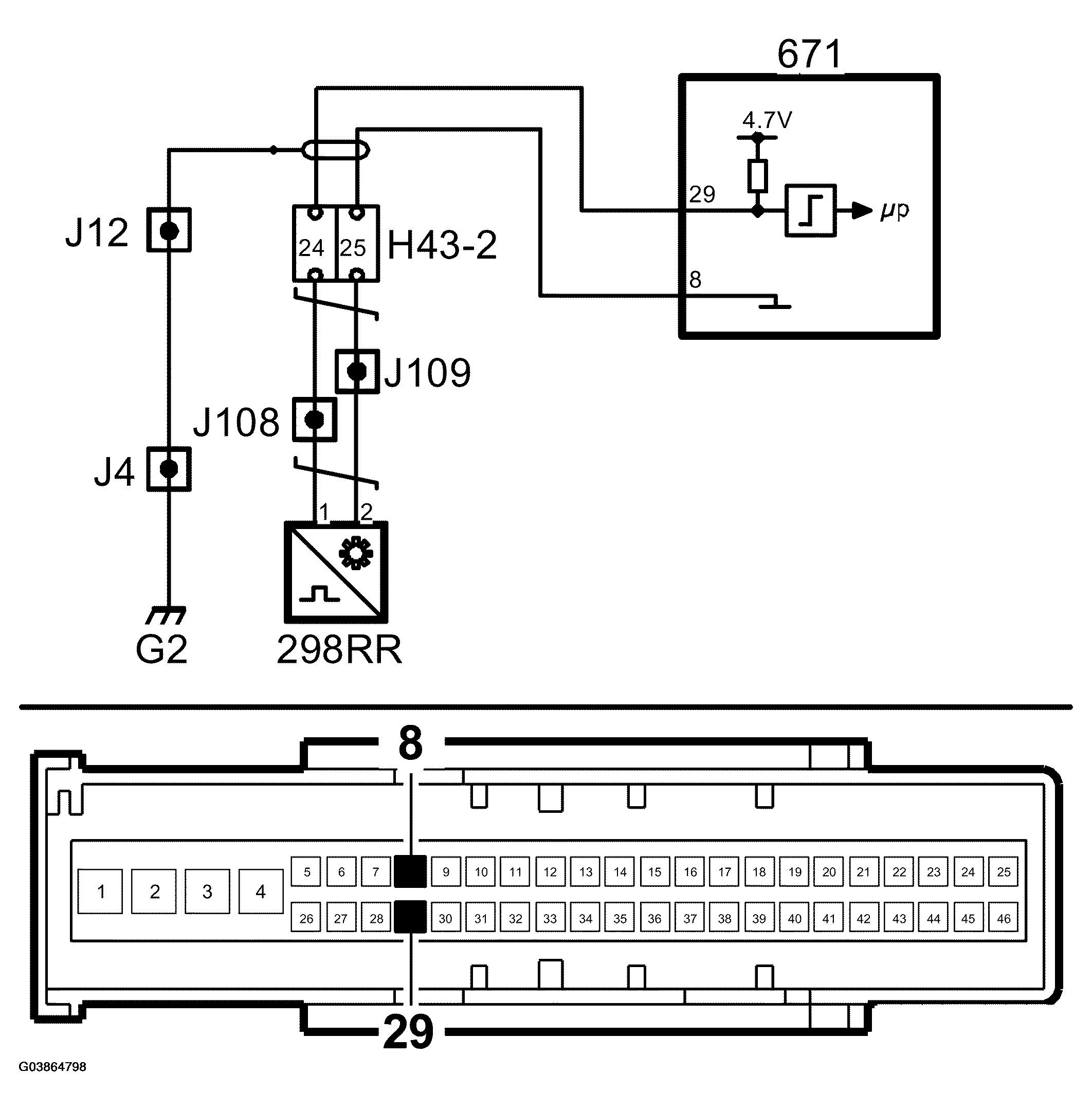

Fig 1: C1386 Wheel Sensor Rear Right Signal Incorrect Circuit Diagram

G03864798

Courtesy of SAAB-SCANIA OF AMERICA, INC.
