DTC C1372: Wheel Sensor Front Left Signal Incorrect: Notes

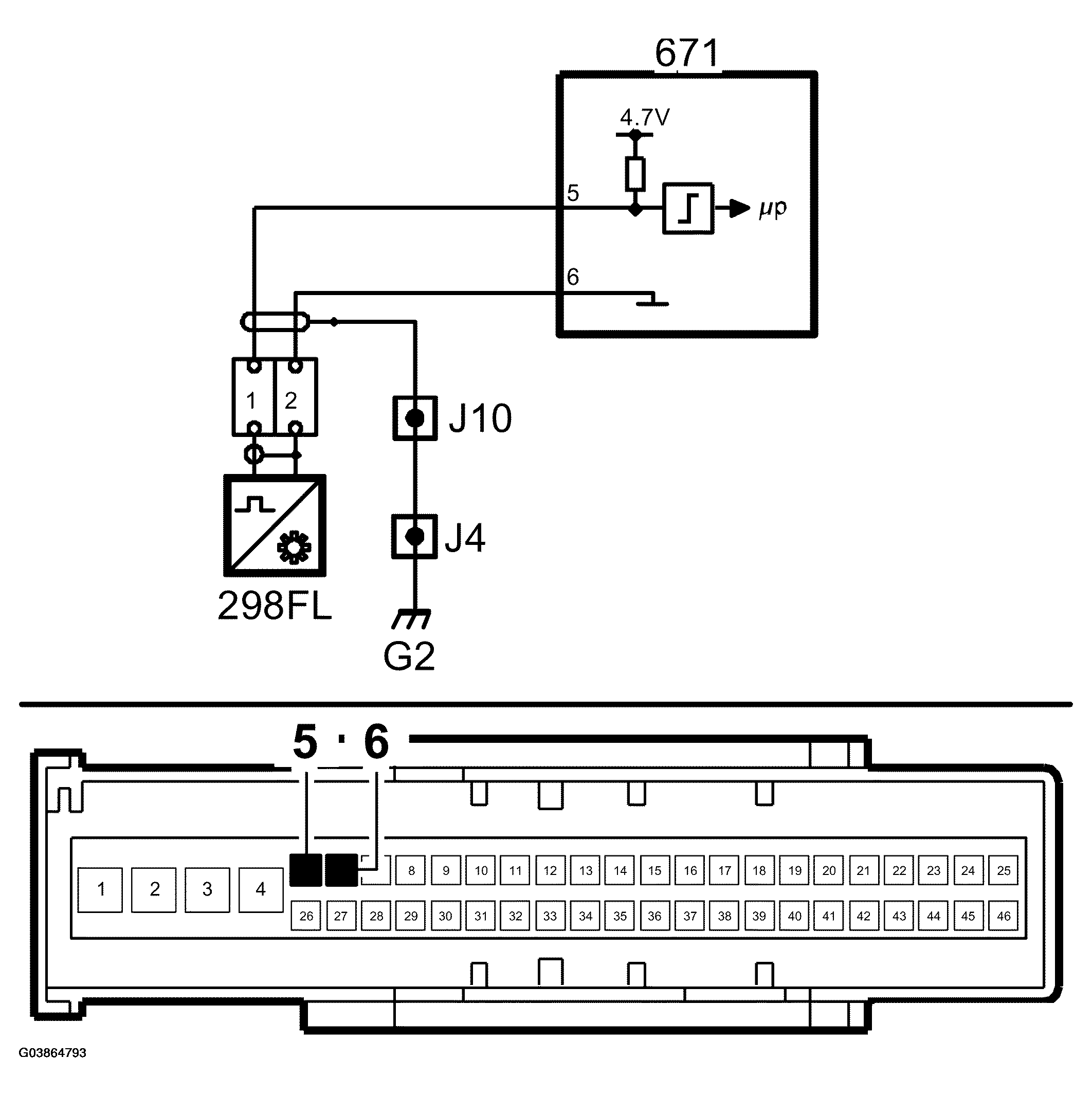

Fig 1: C1372 Wheel Sensor Front Left Signal Incorrect Circuit Diagram

G03864793

Courtesy of SAAB-SCANIA OF AMERICA, INC.
