Home >> Saab >> 2005 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Stabilizer System >> Fault diagnosis, fault codes >> DTC C0710: Steering Angle Sensor Faulty Signal >> Notes

DTC C0710: Steering Angle Sensor Faulty Signal: Notes

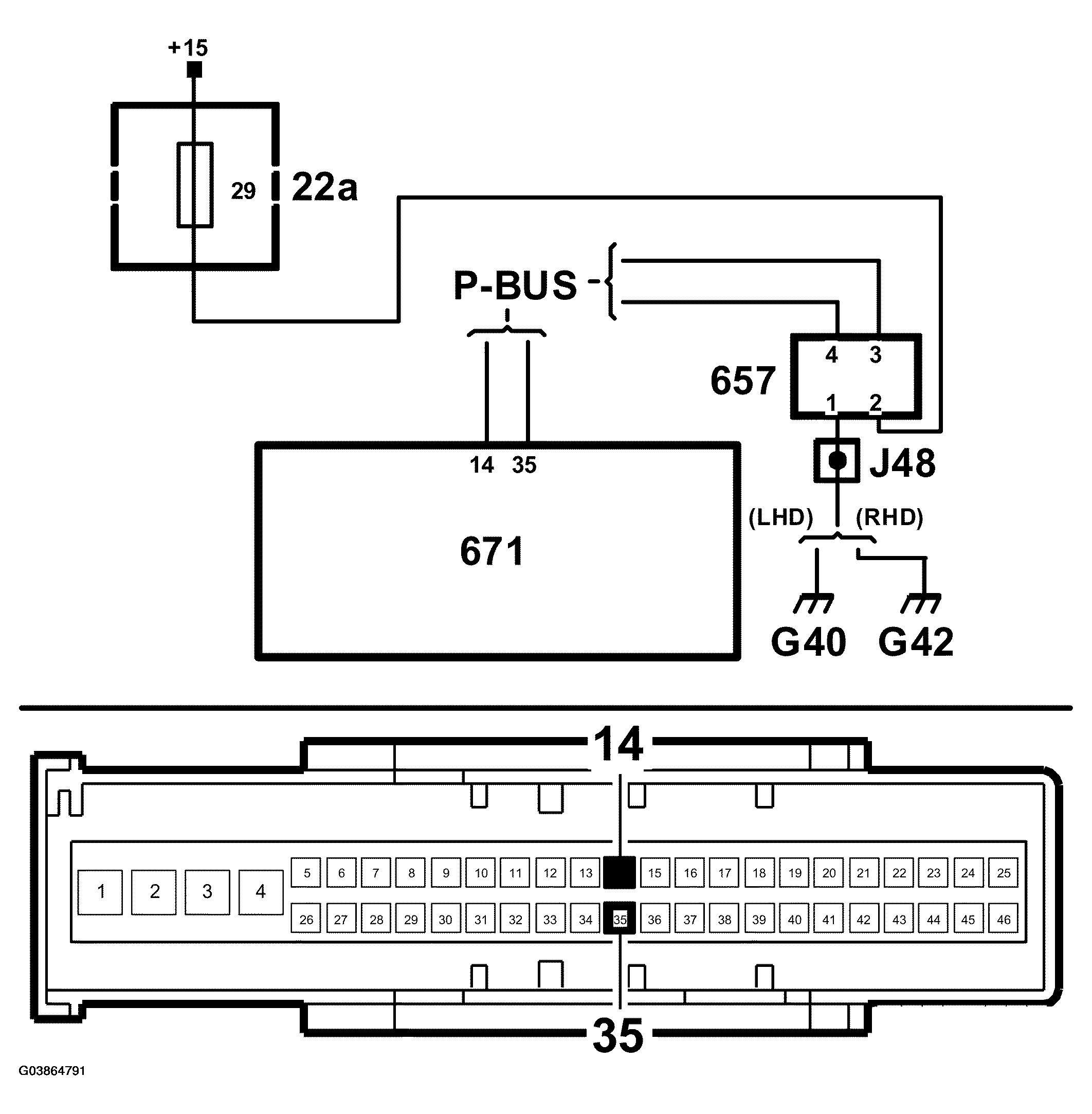

Fig 1: C0710 Steering Angle Sensor Faulty Signal Circuit Diagram

G03864791

Courtesy of SAAB-SCANIA OF AMERICA, INC.
